993026 (Pro-Chip 618R) - Gravely Pro-Chip Chipper (SN: 000101 & Above) Hopper Parts Diagram

Pro-Chip Chipper

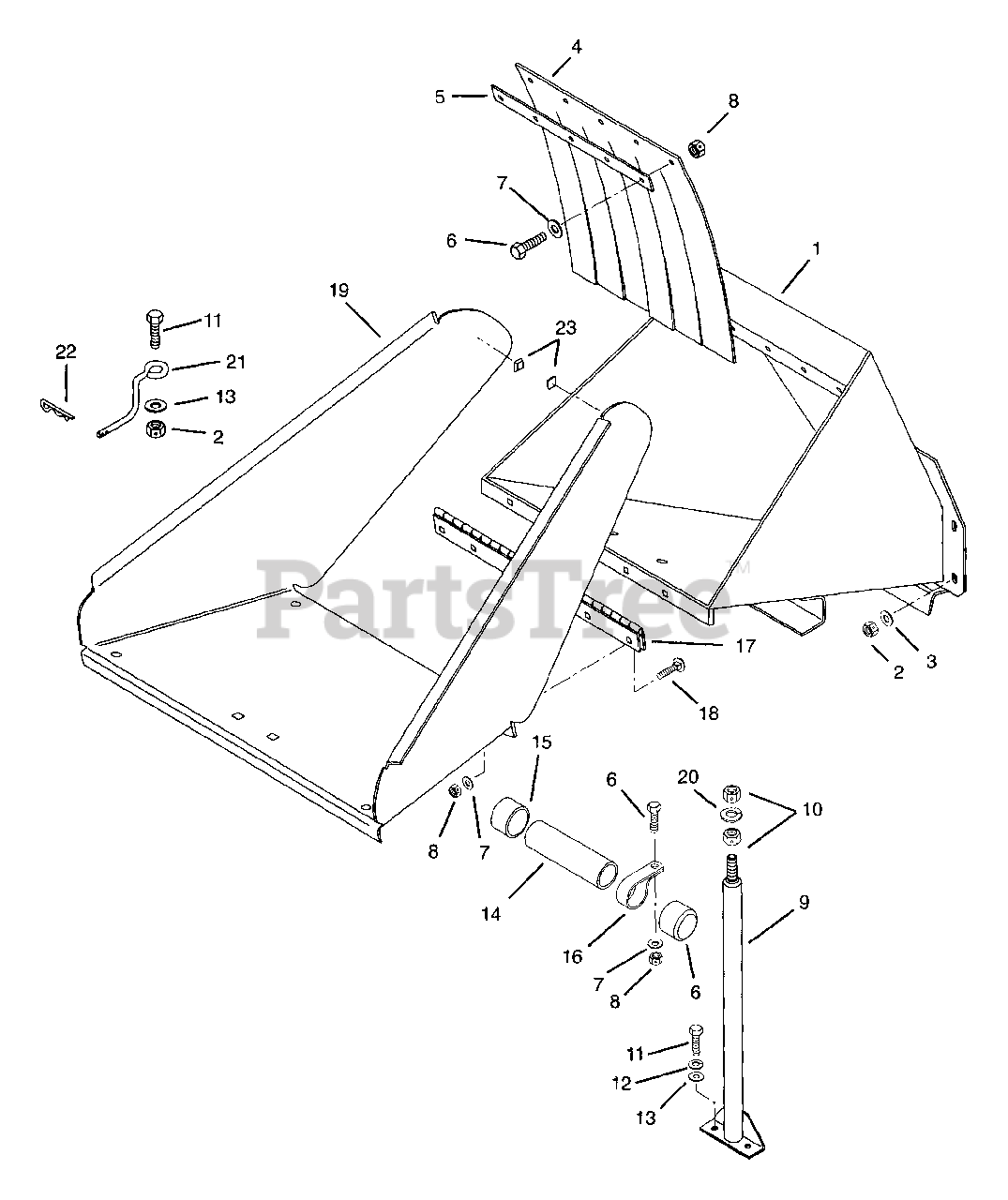

Hopper Parts Diagram

  • Title

1

Gravely 04101200

P-HOPPER
(Superseded to 04101253)

$

$

Not available

2

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$2.99

$

In Stock, Qty 20+

0

4

Gravely 09303900

FLAP-PROTECTIVE

$

$

Not available

5

Gravely 04102700

BRACE

$

$

Not available

6

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

7

Gravely 06435800

WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 04101900

HOPPER STAND

$

$

Not available

10

Gravely 06537600

NUT-HEX .75-10 YWZC

$

$

Not available

11

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 09305800

PLASTIC TUBE INSTRUCTIONS

$

$

Not available

15

Gravely 09305900

END CAP INSTRUCTION TUBE

$

$

Not available

16

Gravely 06924400

CLAMP-2.00 DIA W/.265 DIA HOLE

$

$

Not available

17

Gravely 09310800

HINGE

$

$

Not available

18

Gravely 06220600

BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$1.49

$

In Stock, Qty 11

0

19

Gravely 09311400

SAFETY BONNET

$

$

Not available

20

Gravely 06310300

WSHR-LK .75X.188 REG YWZC

$1.99

$

In Stock, Qty 16

0

21

Gravely 09326600

BONNET POSITIONER

$

$

Not available

22

Gravely 06714000

PIN-HAIR-INT .15X2.937 YWZC

$3.49

$

In Stock, only 1 left!

0

23

Gravely 07525100

STOP

$2.49

$

In Stock, only 3 left!

0
