993027 (Pro-Chip 625LR) - Gravely Pro-Chip Chipper (SN: 000501 & Above) Hopper Parts Diagram

Pro-Chip Chipper

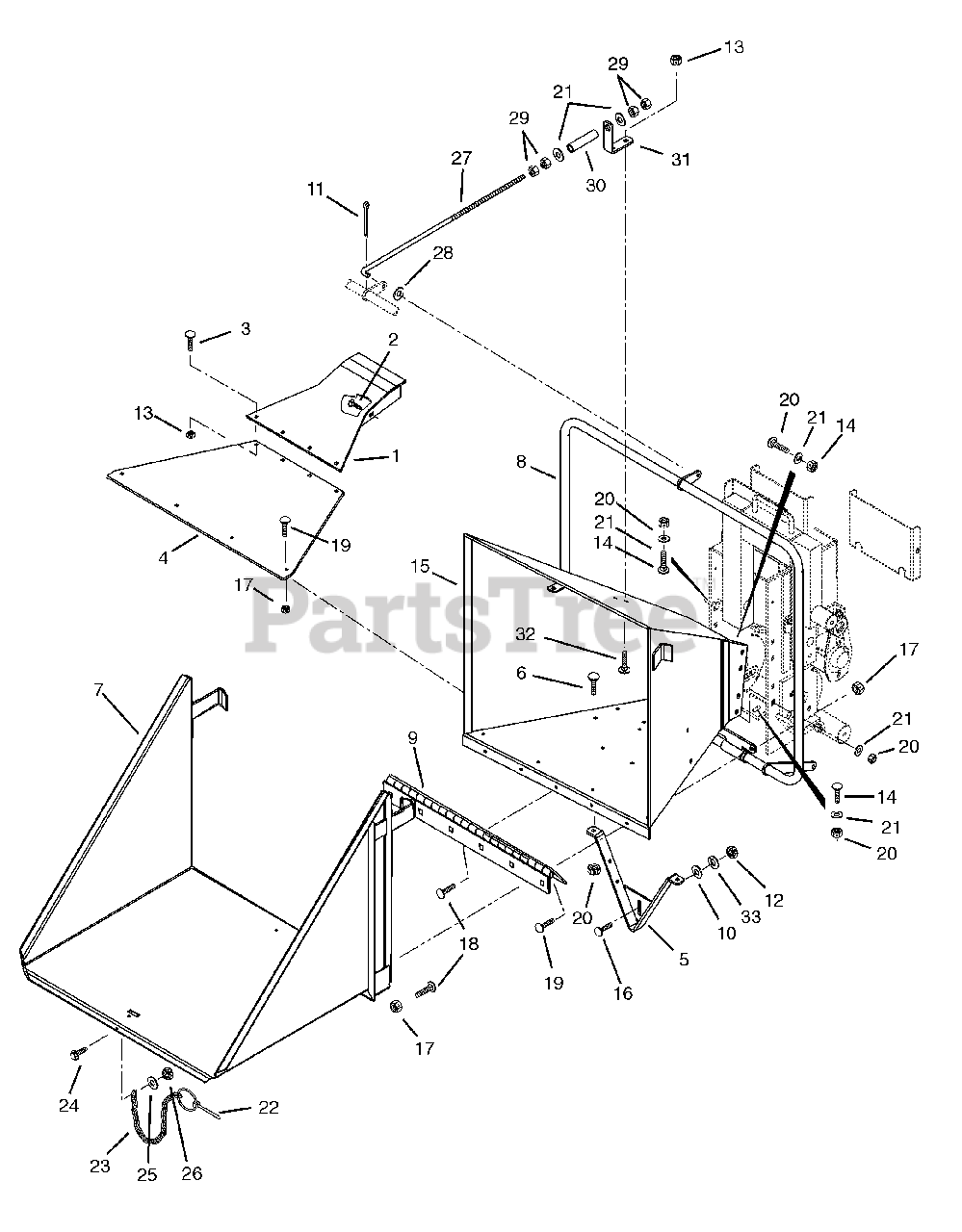

Hopper Parts Diagram

  • Title

1

Gravely 09342100

Replacement-Bottom Feed Roll

Note: Model (029)

$370.99

$

Usually ships in 4-12 days

0

2

Gravely 06221400

Bolt-Round Head Square Neck .38 X 1.25 Grade 2
(Superseded to 06224100)

$2.49

$

In Stock, Qty 18

0

3

Gravely 06216100

Bolt-Round Head Square Neck .31-18 X 1.25 Grade 2
(Superseded to 06200231)

Note: Model (029)

$1.49

$

In Stock, Qty 13

0

4

Gravely 09342200

Plate-Skid-Bottom Feed Roll

Note: Model (029)

$36.99

$

Usually ships in 4-12 days

0

5

Gravely 09341600

Pedestal-Hopper Weldment Assembly

$11.99

$

Usually ships in 4-12 days

0

6

Gravely 06215500

Bolt-Round Head Square Neck .31-16 X 1.25
(Superseded to 06223600)

$2.49

$

In Stock, Qty 19

0

7

Gravely 09310400

Apron Weldment

$

$

Not available

8

Gravely 09341700

Bar-Feed Control Weldment Assembly

$205.99

$

Usually ships in 4-12 days

0

9

Gravely 09310800

Hinge

$

$

Not available

10

Gravely 06442000

Washer-Flat-Steel .563 X 1.38 X .109
(Superseded to 06401012)

$3.49

$

In Stock, Qty 15

0

11

Gravely 06707300

Pin-Cotter .12 X .75

$0.99

$

In Stock, Qty 9

0

12

Gravely 06537300

Nut-Hex .50-13
(Superseded to 06500814)

$3.99

$

In Stock, only 2 left!

0

13

Gravely 06529800

Nut-Lock-Center .31-18
(Superseded to 06500826)

Note: Model (029)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06529800

Nut-Lock-Center .31-18
(Superseded to 06500826)

Note: Model (027, 032)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06215500

Bolt-Round Head Square Neck .38-16 x 1.00
(Superseded to 06223600)

$2.49

$

In Stock, Qty 19

0

15

Gravely 09341800

Hopper Weldment

$

$

Not available

16

Gravely 06220900

Bolt-Round Head Square Neck .50-13 X 1.25 Grade 2
(Superseded to 06200325)

$5.99

$

In Stock, only 1 left!

0

17

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

Note: Model (029)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

Note: Model (027, 032)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 06220600

Bolt-Round Head Square Neck .25-20 X .50 Grade 5
(Superseded to 06200306)

$0.99

$

In Stock, Qty 7

0

19

Gravely 06219900

Bolt-Round Head Square Neck .25-20 X .75 Grade 2
(Superseded to 06200307)

Note: Model (029)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 06219900

Bolt-Round Head Square Neck .25-20 X .75 Grade 2
(Superseded to 06200307)

Note: Model (027, 032 )

$0.99

$

In Stock, Qty 20+

0

20

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06435900

Washer-Flat-Steel .438 X 1.00 X .083
(Superseded to 06401008)

$1.49

$

Usually ships in 4-12 days

0

22

Gravely 07015800

Pin-Lock .31 X 2.00

$6.99

$

In Stock, only 2 left!

0

23

Gravely 09335200

Chain-5 Straight Link #4

$3.49

$

Usually ships in 4-12 days

0

24

Gravely 06116900

Screw-Machine 10-24 w/Insert
(Superseded to 05901837)

$2.49

$

Usually ships in 4-12 days

0

25

Gravely 06442700

Washer-Flat-Steel .219 X .50 X .049
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

26

Gravely 06536000

Nut-Locking-Nylon 10-24 w/Insert
(Superseded to 06500915)

$0.99

$

In Stock, only 3 left!

0

27

Gravely 09338300

Rod-Valve Stop

$

$

Not available

28

Gravely 06437200

Washer-Flat-Steel .344 X .688 X .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 11

0

29

Gravely 06529400

Nut-Hex .38-16
(Superseded to 06500917)

$0.99

$

Usually ships in 4-12 days

0

30

Gravely 00931900

Tubing Urethane .438 X .688

$

$

Not available

31

Gravely 09337700

Bracket-Valve Stop

$

$

Not available

32

Gravely 06215700

Bolt-Round Head Square Neck .31-18 X .75 Grade 5
(Superseded to 06200232)

$2.49

$

Usually ships in 4-12 days

0

33

Gravely 06307300

Washer-Locking .50 x 1.25
(Superseded to 06300115)

$1.49

$

In Stock, Qty 18

0
