993032 (Pro-Chip 625LR) - Gravely Pro-Chip Chipper without trailer (SN: 000101 - 000500) Battery And Fuel Parts Diagram

Pro-Chip Chipper without trailer

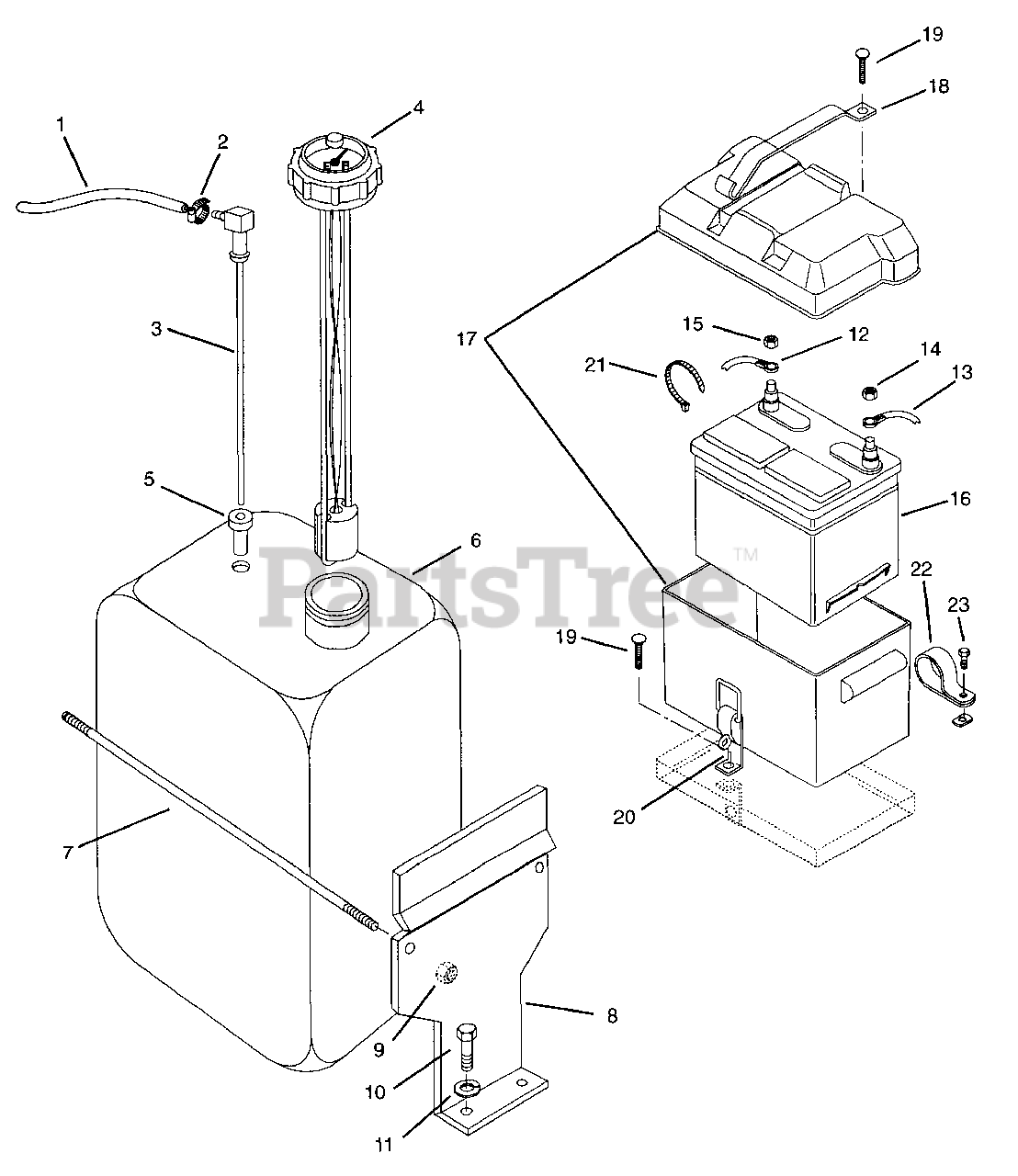

Battery And Fuel Parts Diagram

  • Title

1

Gravely 00095500

GAS LINE-BULK 1/4" I.D.

$

$

Not available

2

Gravely 06924300

HOSE CLAMP

$7.99

$

Usually ships in 4-12 days

0

3

Gravely 08983100

FTG,TANK

$35.99

$

Usually ships in 4-12 days

0

4

Gravely 08983200

GAUGE,FUEL

$

$

Not available

5

Gravely 07511400

BSHG-FLG .375 X 1.062 X .625 R

$3.99

$

In Stock, Qty 20+

0

6

Gravely 08983000

TANK,FUEL

$

$

Not available

7

Gravely 09037800

ROD, TANK

$30.99

$

Usually ships in 4-12 days

0

8

Gravely 08987900

WLDMT,TANK BRACKET

$

$

Not available

9

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 05947200

BLT-HEX .31-18X.50 GR5 YWZC
(Superseded to 05901904)

$1.99

$

In Stock, only 2 left!

0

11

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 04132500

NEGATIVE BATTERY CABLE

$

$

Not available

13

Gravely 04132400

POSITIVE BATTERY CABLE

$

$

Not available

14

Gravely 06529200

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

15

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 09305100

BATTERY MARINE TYPE

$

$

Not available

17

Gravely 09305200

BATTERY BOX

$

$

Not available

18

Gravely 09329351

STRAP-BATTERY HOLD-DOWN

$

$

Not available

19

Gravely 06220200

BLT-RDHDSQNK .31-18X1.75 G5YZ
(Superseded to 06200324)

$3.49

$

In Stock, Qty 15

0

20

Gravely 09329451

LATCH ASSY-BATTERY HOLD-DOWN

$

$

Not available

21

Gravely 04003800

TIE WRAP

$

$

Not available

22

Gravely 06917900

CLAMP, COUSHIONED STEEL REV

$15.99

$

Usually ships in 4-12 days

0

23

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 14

0
