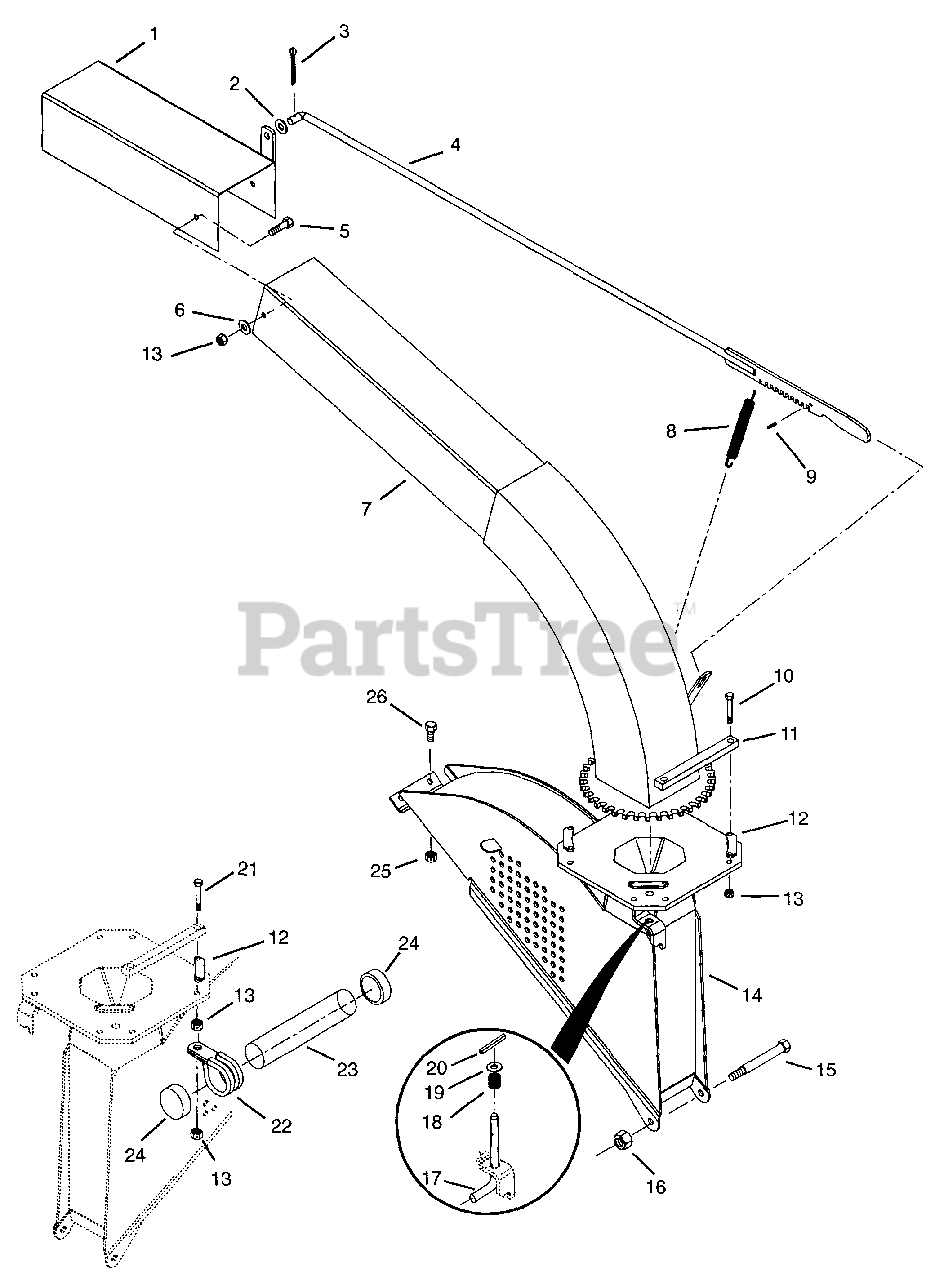

993032 (Pro-Chip 625LR) - Gravely Pro-Chip Chipper without trailer (SN: 000101 - 000500) Discharge Parts Diagram

Pro-Chip Chipper without trailer

Discharge Parts Diagram

  • Title

1

Gravely 09340300

Deflector - Weldment Assembly

$

$

Not available

2

Gravely 06442000

Washer-Flat-Steel .563 X 1.38 X .109
(Superseded to 06401012)

$3.49

$

In Stock, Qty 15

0

3

Gravely 06707100

Pin-Center .12 X 1.00

$0.99

$

In Stock, Qty 12

0

4

Gravely 09340400

Rod-Deflector Control Weldment Assembly

$30.99

$

Usually ships in 4-12 days

0

5

Gravely 05959400

Bolt-Hex .38-16 X .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, only 2 left!

0

6

Gravely 06425000

Washer-Flat-Nylon .38 X 1.0 X .083

$

$

Not available

7

Gravely 09340200

Chute-Discharge Weldment Assembly

$

$

Not available

8

Gravely 08306851

Spring-Tension .091 X .73 X 5.28

$

$

Not available

9

Gravely 05809300

Pin-Roll .250 X .750

$

$

Not available

10

Gravely 05958500

Bolt-Hex .38-16 X 1.75 Grade 5
(Superseded to 05901809)

$1.49

$

In Stock, only 4 left!

0

11

Gravely 09340800

Bar-Discharge Clamp

$5.99

$

Usually ships in 4-12 days

0

12

Gravely 09340900

Guide-Discharge Chute

$5.99

$

Usually ships in 4-12 days

0

13

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 09347800

Cover-Flywheel Housing Assembly

$

$

Not available

15

Gravely 05964400

Bolt-Hex .50-13 x 6.50 Grade 5
(Superseded to 05901907)

$7.99

$

In Stock, Qty 18

0

16

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

17

Gravely 09340700

Pin-Index

$5.99

$

Usually ships in 4-12 days

0

18

Gravely 08325900

Spring-Compression .058 x .65 x 2.13

$9.49

$

Usually ships in 4-12 days

0

19

Gravely 06441900

Washer-Flat-Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 05802900

Pin-Roll .156 x 1.00

$0.99

$

In Stock, Qty 5

0

21

Gravely 05962900

Bolt-Hex .38-16 X 2.25 Grade 5
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

22

Gravely 06939900

Clamp 2.00 DIA w/.406 Hole

$

$

Not available

23

Gravely 09305800

Plastic Tube-Instructions

$

$

Not available

24

Gravely 09305900

End Cap-Instruction Tube

$

$

Not available

25

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 05959400

Bolt-Hex .38-16 x.75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, only 2 left!

0
