993032 (Pro-Chip 625LR) - Gravely Pro-Chip Chipper without trailer (SN: 000101 - 000500) Discharge Parts Diagram

Pro-Chip Chipper without trailer

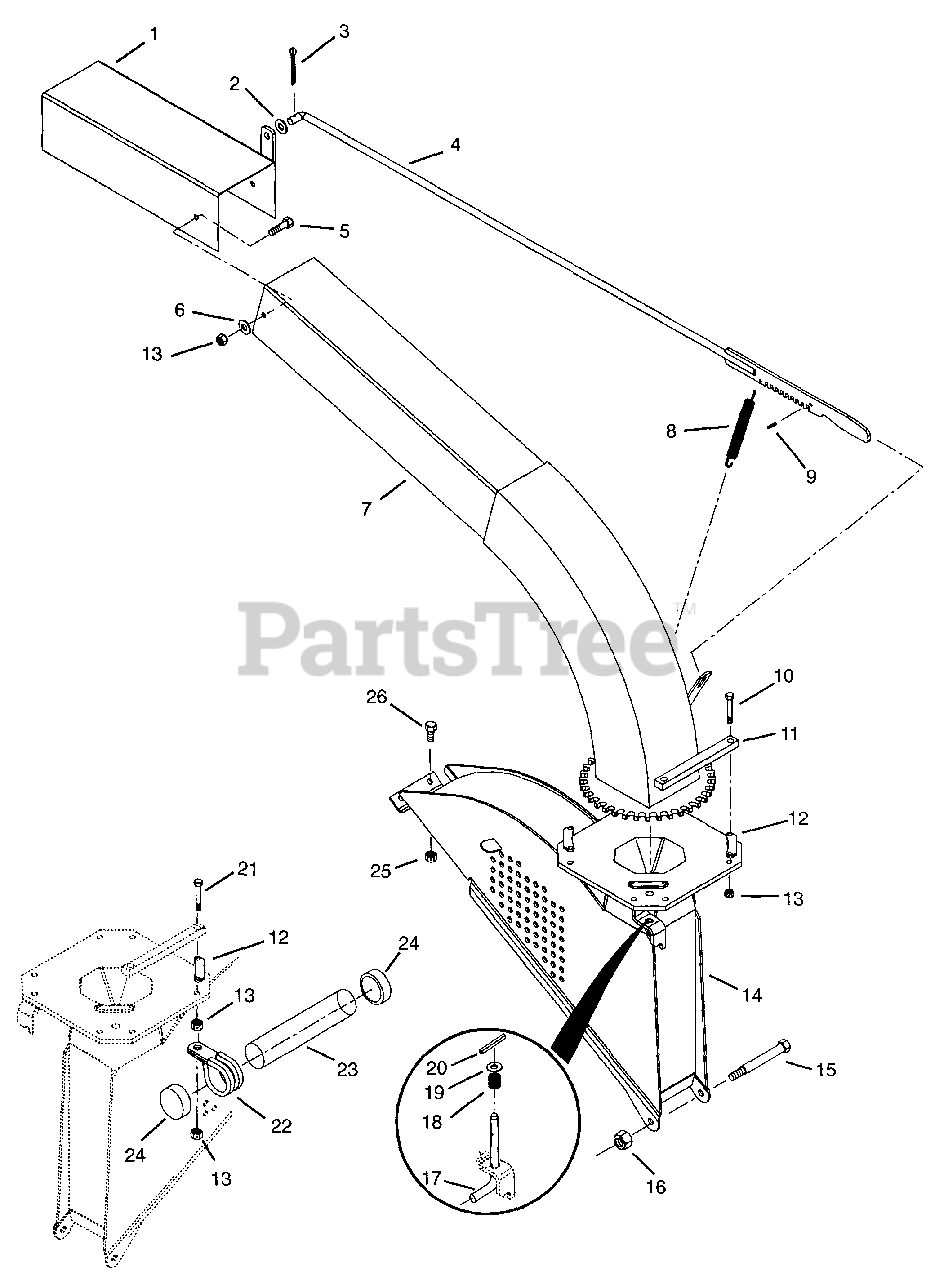

Discharge Parts Diagram

  • Title

1

Gravely 09340300

DEFLECTOR-WELD ASSY

$

$

Not available

2

Gravely 06442000

WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.99

$

In Stock, Qty 20+

0

3

Gravely 06707100

PIN-CTR .12X1.00 EXTPRSQCT YZ

$0.99

$

In Stock, Qty 10

0

4

Gravely 09340400

ROD-DEFLECTOR CONTROL WELD ASY

$30.99

$

Usually ships in 4-12 days

0

5

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 14

0

6

Gravely 06425000

WSHR-FL-NY .38X1.0X.083

$

$

Not available

7

Gravely 09340200

CHUTE-DISCHARGE WELD ASSY

$

$

Not available

8

Gravely 08306851

SG-TENS .091X.73X5.28 WLD 30

$

$

Not available

9

Gravely 05809300

PIN,ROLL .25 X .75

$

$

Not available

10

Gravely 05958500

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 09340800

BAR-DISCHARGE CLAMP

$5.99

$

Usually ships in 4-12 days

0

12

Gravely 09340900

GUIDE-DISCHARGE CHUTE

$5.99

$

Usually ships in 4-12 days

0

13

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 09347800

COVER-FLYWHEEL HSG W/DISCHARGE

$

$

Not available

15

Gravely 05964400

BLT-HEX .50-13X6.50 GR5 YWZC
(Superseded to 05901907)

$7.99

$

In Stock, Qty 20+

0

16

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

17

Gravely 09340700

PIN-INDEX

$5.99

$

Usually ships in 4-12 days

0

18

Gravely 08325900

SPRG, COMP .058X.65X2.13 WLD15

$

$

Not available

19

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 05802900

PIN-ROLL .156X1.00

$0.99

$

In Stock, Qty 12

0

21

Gravely 05962900

BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

22

Gravely 06939900

CLAMP-2.00 DIA W/.406 HOLE

$

$

Not available

23

Gravely 09305800

PLASTIC TUBE INSTRUCTIONS

$

$

Not available

24

Gravely 09305900

END CAP INSTRUCTION TUBE

$

$

Not available

25

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 14

0
