993032 (Pro-Chip 625LR) - Gravely Pro-Chip Chipper without trailer (SN: 000101 - 000500) Engine & Clutch Parts Diagram

Pro-Chip Chipper without trailer

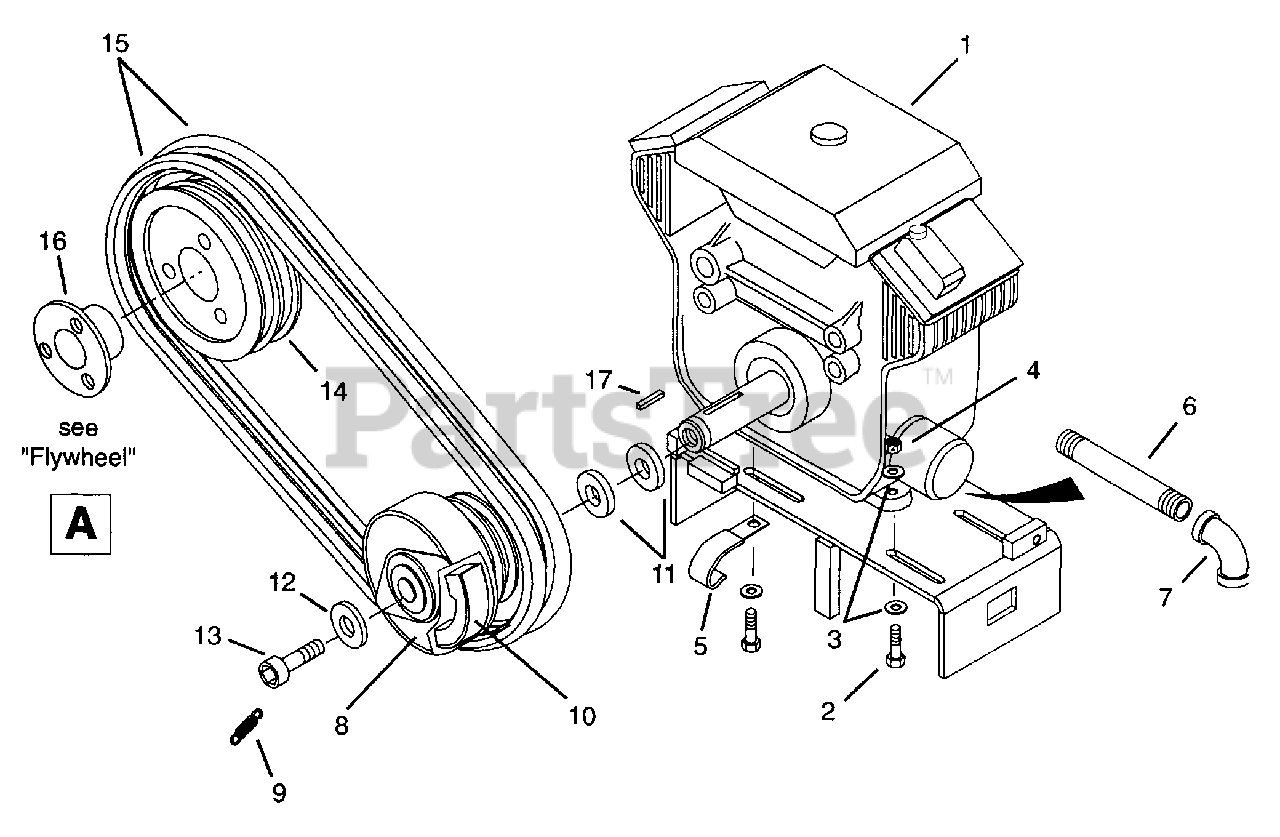

Engine & Clutch Parts Diagram

  • Title

1

Gravely 08240800

25 HP KOHLER COMMAND PS-68548

Note: (Models 029, 032)

$

$

Not available

2

Gravely 05958500

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

Note: (Models 029, 032)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

Note: (Models 029, 032)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

Note: (Models 029, 032)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06909400

J-CLAMP

Note: (Models 029, 032)

$3.99

$

In Stock, only 4 left!

0

6

Gravely 07030800

NIPPLE .38X7.5

Note: (Models 029, 032)

$

$

Not available

7

Gravely 07023500

ELBOW .375-18 NPTF

Note: (Models 029, 032)

$

$

Not available

8

Gravely 09308100

CLUTCH, 1.125 BORE

Note: (Models 029, 032)

$

$

Not available

Gravely 09307200

CLUTCH, 1.438 BORE

Note: (Model 027)

$

$

Not available

9

Gravely 09312100

SPRING-CLUTCH (93072)

$

$

Not available

10

Gravely 09312000

SHOE-CLUTCH (93072)

$

$

Not available

11

Gravely 09313600

CLUTCH SHIM 25HP

Note: (Models 029, 032)

$

$

Not available

Gravely 04107400

SPACER 1.500X2.000X.605

Note: (Model 027)

$

$

Not available

Gravely 04135900

NARROW RIM BUSHING - 14 GA.

Note: (Model 027)

$

$

Not available

12

Gravely 09313700

WASHER 25HP
(Superseded to 06401111)

Note: (Models 029, 032)

$7.99

$

In Stock, Qty 20+

0

Gravely 06435200

WSHR-FLT .640X1.75X.250 YWZC
(Superseded to 06400829)

Note: (Model 027)

$4.99

$

In Stock, Qty 20+

0

13

Gravely 05949000

SCR-SKH .43-20X1.50

Note: (Models 029, 032)

$

$

Not available

Gravely 07009100

BLT-SKH SPL .62-18X1.75

Note: (Model 027)

$

$

Not available

14

Gravely 07313700

SHEAVE DAYCO 2BQ80

$

$

Not available

15

Gravely 07215300

V-BELT, HB-WRAPPED (SET)

$74.99

$

Usually ships in 4-12 days

0

16

Gravely 09304500

BUSHING SK X 1-1/2

$43.99

$

Usually ships in 4-12 days

0

17

Gravely 06602600

KEY-SQ .25 X 2.50 X .25 SAE

Note: (Models 029, 032)

$6.49

$

In Stock, only 2 left!

0

Gravely 06605400

KEY-STR .38X2.75X.38

Note: (Model 027)

$

$

Not available
