993032 (Pro-Chip 625LR) - Gravely Pro-Chip Chipper without trailer (SN: 000101 - 000500) Hopper Parts Diagram

Pro-Chip Chipper without trailer

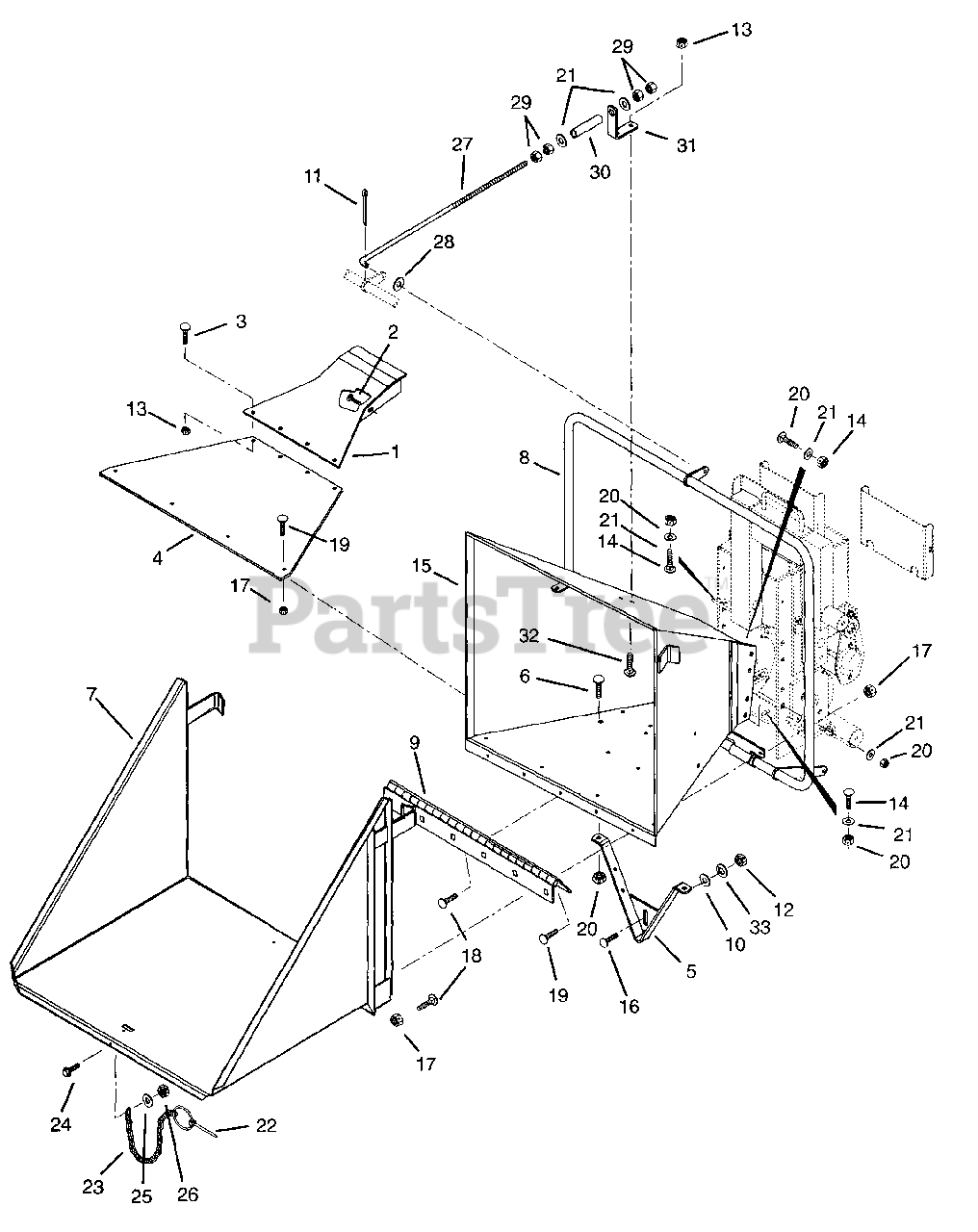

Hopper Parts Diagram

  • Title

1

Gravely 09342100

REPLACEMENT-BOTTOM FEED ROLL

Note: (Model 029)

$370.99

$

Usually ships in 4-12 days

0

2

Gravely 06221400

BLT-RDHDSQNK .38-16X1.25 G2YZ
(Superseded to 06224100)

$3.49

$

In Stock, Qty 20+

0

3

Gravely 06216100

BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

Note: (Model 029)

$2.99

$

In Stock, Qty 20+

0

4

Gravely 09342200

PLATE-SKID,BOT FEED ROLL REPL

Note: (Model 029)

$36.99

$

Usually ships in 4-12 days

0

5

Gravely 09341600

PEDESTAL-HOPPER WELD ASSY

$11.99

$

Usually ships in 4-12 days

0

6

Gravely 06215500

BLT-RDHDSQNK .38-16X1.00 G2YZ
(Superseded to 06223600)

$3.49

$

In Stock, Qty 20+

0

7

Gravely 09310400

APRON WELDMENT

$

$

Not available

8

Gravely 09341700

BAR-FEED CONTROL WELD ASSY

$205.99

$

Usually ships in 4-12 days

0

9

Gravely 09310800

HINGE

$

$

Not available

10

Gravely 06442000

WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$3.49

$

In Stock, Qty 20+

0

11

Gravely 06707300

PIN-CTR .12X.75 EXTPRSQCT YWZ

$1.49

$

In Stock, Qty 6

0

12

Gravely 06537300

NUT-HEX .50-13 YWZC
(Superseded to 06500814)

$5.49

$

In Stock, only 2 left!

0

13

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

Note: (Model 029)

$2.49

$

In Stock, Qty 20+

0

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

Note: (Models 027, 032)

$2.49

$

In Stock, Qty 20+

0

14

Gravely 06215500

BLT-RDHDSQNK .38-16X1.00 G2YZ
(Superseded to 06223600)

$3.49

$

In Stock, Qty 20+

0

15

Gravely 09341800

HOPPER WELDMENT

$

$

Not available

16

Gravely 06220900

BLT-RDHDSQNK .50-13X1.25 G2YW
(Superseded to 06200325)

$7.49

$

Usually ships in 4-12 days

0

17

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

Note: (Model 029)

$1.49

$

In Stock, Qty 20+

0

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

Note: (Models 027, 032)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06220600

BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 06219900

BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

Note: (Model 029)

$1.99

$

In Stock, Qty 20+

0

Gravely 06219900

BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

Note: (Models 027, 032)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$2.99

$

In Stock, Qty 20+

0

22

Gravely 07015800

PIN-LOK .31X2.00

$7.99

$

In Stock, only 2 left!

0

23

Gravely 09335200

CHAIN-5 STRAIGHT LINK #4 YWZC

$3.49

$

Usually ships in 4-12 days

0

24

Gravely 06116900

SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.99

$

In Stock, only 4 left!

0

25

Gravely 06442700

WSHR-FL-STL.219X.50X.049 YWZC
(Superseded to 06401123)

$1.99

$

Usually ships in 4-12 days

0

26

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$1.99

$

In Stock, Qty 20+

0

27

Gravely 09338300

ROD-VALVE STOP

$

$

Not available

28

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.99

$

In Stock, Qty 20+

0

30

Gravely 00931900

TUBING-URETHANE .438X.688

$

$

Not available

31

Gravely 09337700

BRACKET-VALVE STOP

$

$

Not available

32

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$3.49

$

In Stock, Qty 20+

0

33

Gravely 06307300

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.99

$

In Stock, Qty 20+

0
