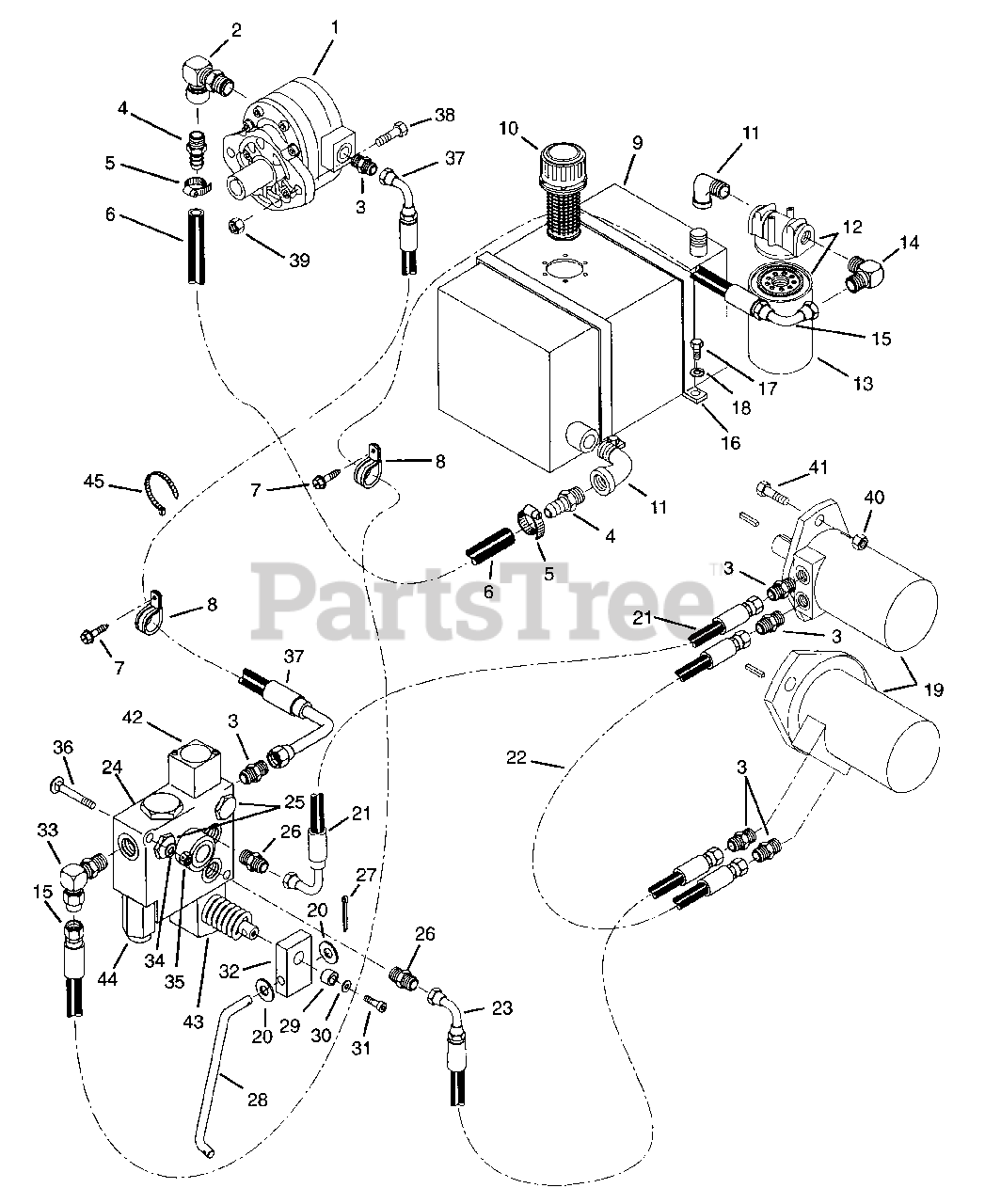

993032 (Pro-Chip 625LR) - Gravely Pro-Chip Chipper without trailer (SN: 000101 - 000500) Hydraulics Parts Diagram

Pro-Chip Chipper without trailer

Hydraulics Parts Diagram

  • Title

1

Gravely 09334500

PUMP-HYDRAULIC

$

$

Not available

2

Gravely 07051900

ELBOW-FEMALE

$

$

Not available

3

Gravely 07025800

ADAPTER, HYD ST 7/8 "O" TO 3/4

Note: (Model 029)

$14.99

$

Usually ships in 4-12 days

0

Gravely 07025800

ADAPTER, HYD ST 7/8 "O" TO 3/4

Note: (Models 027, 032)

$14.99

$

Usually ships in 4-12 days

0

4

Gravely 07027300

ADPTR-BARBED INSERT

$

$

Not available

5

Gravely 04132100

CLAMP-HOSE 1 3/16 TO 1 3/4 H20

$

$

Not available

6

Gravely 09339000

HOSE-SUCTION (18")

Note: (18 IN.)

$

$

Not available

7

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 06917900

CLAMP, COUSHIONED STEEL REV

$15.99

$

Usually ships in 4-12 days

0

9

Gravely 04109950

HYDRAULIC OIL TANK

$

$

Not available

10

Gravely 04105800

FILLER CAP ASSEMBLY

$

$

Not available

11

Gravely 04108300

STREET EL 90 DEGREE GALV 3/4

$

$

Not available

12

Gravely 04108000

FILTER PARKER 307690 12ATIOC

Note: (Includes Element)

$

$

Not available

13

Gravely 04108100

REPLACEMENT ELEMENT

Note: (Part of Filter)

$51.99

$

Usually ships in 4-12 days

0

14

Gravely 04110500

HYDRAULIC FITTING

$

$

Not available

15

Gravely 09336700

HOSE-HYDRAULIC 64" ST

$48.99

$

Usually ships in 4-12 days

0

16

Gravely 04110150

HYDRAULIC TANK STRAPS
(Superseded to 04110151)

$

$

Not available

17

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 14

0

18

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 09338400

MOTOR-HYDRAULIC

Note: (Models 027, 032)

$713.99

$

Usually ships in 4-12 days

0

Gravely 09338400

MOTOR-HYDRAULIC

Note: (Model 029)

$713.99

$

Usually ships in 4-12 days

0

20

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 09336600

HOSE-HYDRAULIC 22" W/EL

$40.99

$

Usually ships in 4-12 days

0

22

Gravely 09336400

HOSE-HYDRAULIC 30" ST

Note: (Models 027, 032)

$

$

Not available

23

Gravely 09335900

HOSE-HYDRAULIC 26.5" W/EL

$42.99

$

Usually ships in 4-12 days

0

24

Gravely 09338500

VALVE-DIRECTION/FLOW CONTROL

Note: (Includes Items 42, 43, 44)

$

$

Not available

25

Gravely 07051700

PLUG-HEX .75-16 "O" RING-DRAIN

$

$

Not available

26

Gravely 07020400

ADAPTER, HYD ST 3/4 "O" TO 3/4

$

$

Not available

27

Gravely 06707300

PIN-CTR .12X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 6

0

28

Gravely 09343100

ROD-VALVE CONTROL

$

$

Not available

29

Gravely 03101900

SPACER .318X.430X.375

$

$

Not available

30

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

31

Gravely 05932500

SCR-SKH M8 X 1.25X20

$

$

Not available

32

Gravely 09342400

ADAPTER-VALVE HANDLE

$

$

Not available

33

Gravely 07020000

ADPTR-HYD EL 7/8 "O" TO 3/4

$

$

Not available

34

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 06529200

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

36

Gravely 06212300

BLT-RDHDSQSHNK.31-18X2.75G2YWZ

$3.49

$

In Stock, Qty 12

0

37

Gravely 09336500

HOSE-HYDRAULIC 79" W/EL

$71.99

$

Usually ships in 4-12 days

0

38

Gravely 05963800

BLT-HEX .44-14X1.25 GR5 YWZC

$2.99

$

In Stock, only 1 left!

0

39

Gravely 06536400

NUT-LK-CTR .44-14 YWZC
(Superseded to 06500930)

$3.49

$

In Stock, only 4 left!

0

40

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

Note: (Model 029)

$4.99

$

In Stock, Qty 19

0

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

Note: (Models 027, 032)

$4.99

$

In Stock, Qty 19

0

41

Gravely 05962000

BLT-HEX .50-13X1.50 GR5 YWZC
(Superseded to 05901631)

Note: (Model 029)

$4.99

$

In Stock, Qty 12

0

Gravely 05962000

BLT-HEX .50-13X1.50 GR5 YWZC
(Superseded to 05901631)

Note: (Models 027, 032)

$4.99

$

In Stock, Qty 12

0

42

Gravely 09333900

DETENT ASSY-HYDRAULIC CNTRL V

$

$

Not available

43

Gravely 09334100

LEVER ASSY-HYDRAULIC CNTRL V

$

$

Not available

44

Gravely 09334000

RELIEF VALVE ASSY-HYD CNTRL V

$

$

Not available

45

Gravely 04003800

TIE WRAP

$

$

Not available
