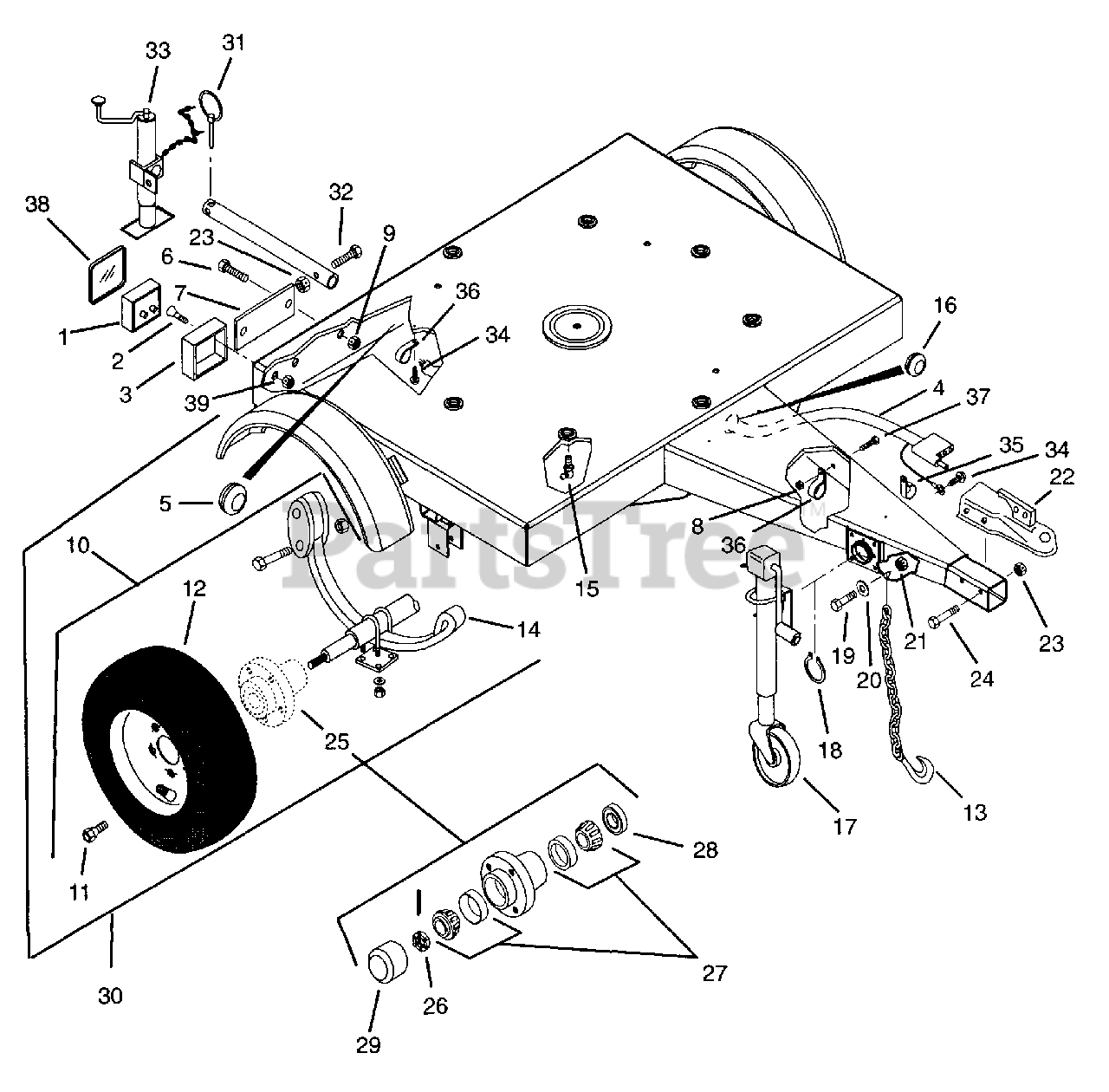

993032 (Pro-Chip 625LR) - Gravely Pro-Chip Chipper without trailer (SN: 000101 - 000500) Trailer Parts Diagram

Pro-Chip Chipper without trailer

Trailer Parts Diagram

  • Title

1

Gravely 04116300

TAIL LIGHT LH

Note: (Includes Item 38)

$

$

Not available

Gravely 04116400

TAIL LIGHT RH

Note: (Includes Item 38)

$

$

Not available

2

Gravely 06118900

SCR-MCH.25-20X.75 FLTCNTRSK SS

$

$

Not available

3

Gravely 04116500

LEFT TAILLIGHT WELDMENT

$

$

Not available

Gravely 04116600

RIGHT TAILLIGHT WELDMENT

$

$

Not available

4

Gravely 09338600

HARNESS-WIRING,TRAILER

$

$

Not available

5

Gravely 07504400

GROMMET

$

$

Not available

6

Gravely 06116900

SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 11

0

7

Gravely 07536500

REFLECTOR

$23.99

$

Usually ships in 4-12 days

0

8

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 04134200

AXLE ASSEMBLY (625LR)
(Superseded to 09353400)

Note: (Contains 11, 14, 25 & 26)

$

$

Not available

11

Gravely 07014600

BLT-LUG .50-20X.75X1.62 PL
(Superseded to 07000143)

$3.99

$

In Stock, Qty 20+

0

12

Gravely 04134000

CHEMLAWN 310 TIRE & WHEEL ASSM

$

$

Not available

13

Gravely 09300200

SAFETY CHAIN

$

$

Not available

14

Gravely 09301100

SPRING-AXLE,SERVICE ASSY

$

$

Not available

15

Gravely 07029700

DRIVE FITTING, HYD. BRIGHT ZC

$12.99

$

In Stock, only 2 left!

0

16

Gravely 07530600

GRMT .75X1.06X1.38

$2.99

$

Usually ships in 4-12 days

0

17

Gravely 04201300

JACK

$

$

Not available

18

Gravely 05717900

RG-RTNG-EXT 2.50X.078

$

$

Not available

19

Gravely 05958700

BLT-HEX .44-14X1.00 GR5 YWZC
(Superseded to 05901913)

$2.99

$

In Stock, only 1 left!

0

20

Gravely 06441000

WSHR-FL-STL.50X1.25X.083 YWZC
(Superseded to 06401202)

$3.49

$

In Stock, Qty 10

0

21

Gravely 06536400

NUT-LK-CTR .44-14 YWZC
(Superseded to 06500930)

$3.49

$

In Stock, only 4 left!

0

22

Gravely 09300100

COUPLER 2" BALL TYPE

$

$

Not available

23

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

24

Gravely 05960100

BLT-HEX .50-13X3.75 GR5 YWZC
(Superseded to 05901703)

$6.49

$

In Stock, only 2 left!

0

25

Gravely 09301000

HUB-WHEEL SERVICE ASSY

Note: (Contains 27, 28, 29)

$

$

Not available

26

Gravely 06513100

NUT-SL 1.0-14

$6.49

$

Usually ships in 4-12 days

0

27

Gravely 05417300

BRG-REPLACEMENT ASSY

$

$

Not available

28

Seal

$

$

Not available

29

Grease Cap

$

$

Not available

30

Gravely 09341900

TRAILER-WELD ASSY 350

Note: (Contains Items 10, 12 & 15)

$1675.99

$

Usually ships in 4-12 days

0

31

Gravely 09342000

TUBE-JACK PIVOT

$

$

Not available

32

Gravely 05959900

BLT-HEX .50-13X3.00 GR5 YWZC
(Superseded to 05901737)

$5.49

$

In Stock, Qty 14

0

33

Gravely 09320400

JACK-2000 LB X 12.75 SCREW

$

$

Not available

34

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

35

Gravely 06908200

CLAMP, CUSHIONED STEEL

$6.49

$

Usually ships in 4-12 days

0

36

Gravely 06904800

CLIP

$

$

Not available

37

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

38

Gravely 09310000

LENS, TAIL LIGHT

$

$

Not available

39

Gravely 06531000

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0
