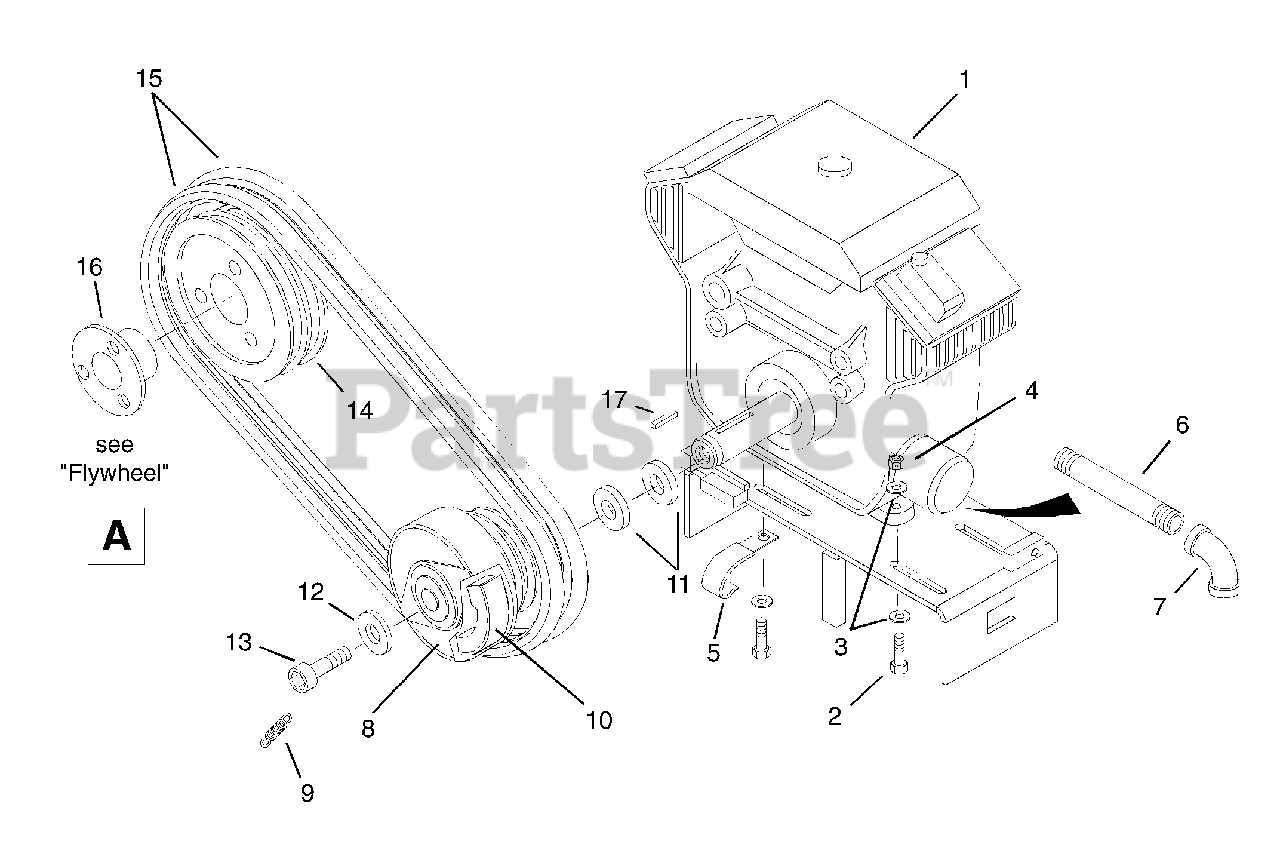

993032 (Pro-Chip 625LR) - Gravely Pro-Chip Chipper without trailer (SN: 000501 & Above) Engine & Clutch Parts Diagram

Pro-Chip Chipper without trailer

Engine & Clutch Parts Diagram

  • Title

1

Gravely 08240800

25 HP Kohler Command PS-68548

Note: Model (029, 032)

$

$

Not available

2

Gravely 05958500

Bolt-Hex .38-16 x 1.75 Grade 5
(Superseded to 05901809)

Note: Model (029, 032)

$1.99

$

In Stock, only 3 left!

0

3

Gravely 06435900

Washer-Flat-Steel .438 x 1.00 x .083
(Superseded to 06401008)

Note: Model (029, 032)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

Note: Model (029, 032)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06909400

Clamp-Line

Note: Model (029, 032)

$3.99

$

In Stock, only 2 left!

0

6

Gravely 07030800

Nipple .38 x 7.5

Note: Model (029, 032)

$

$

Not available

7

Gravely 07023500

Elbow .375-18

Note: Model (029, 032)

$

$

Not available

8

Gravely 09308100

Clutch 1.125 Bore

Note: Model (029, 032)

$

$

Not available

8

Gravely 09307200

Clutch

Note: Model (027)

$

$

Not available

9

Gravely 09312100

Spring-Clutch

$

$

Not available

10

Gravely 09312000

Shoe-Clutch

$

$

Not available

11

Gravely 09313600

Shim 25 HP

Note: Model (029, 032)

$

$

Not available

11

Gravely 04107400

Spacer

Note: Model (027)

$

$

Not available

11

Gravely 04135900

Bushing-Narrow Rim 14 GA 1-1/2 x 2-1/4

Note: Model (027)

$

$

Not available

12

Gravely 09313700

Washer 25 HP
(Superseded to 06401111)

Note: Model (029, 032)

$7.99

$

In Stock, Qty 20+

0

12

Gravely 06435200

Washer-Flat .640 x 1.81 x 2.50
(Superseded to 06400829)

Note: Model (027)

$4.99

$

In Stock, Qty 20+

0

13

Gravely 05949000

Screw- Socket Head .43-20 x 1.50

Note: Model (029, 032)

$

$

Not available

13

Gravely 07009100

Bolt-Socket Head SPL .62-18 x 1.75

Note: Model (027)

$

$

Not available

14

Gravely 09356200

Pulley

$

$

Not available

15

Gravely 07215300

V-Belt 23 HP Matched Set

$74.99

$

Usually ships in 4-12 days

0

16

Gravely 09304500

Bushing SK x 1-1/2

$43.99

$

Usually ships in 4-12 days

0

17

Gravely 06602600

Key-Square .25 x 2.50 x .25

Note: Model (029, 032)

$6.49

$

In Stock, only 2 left!

0

17

Gravely 06605400

Key-Straight .38 x 2.75 x .38

Note: Model (027)

$

$

Not available
