993401 (Pro-Chip 944) - Gravely Pro-Chip Chipper, 44hp Yanmar Diesel (SN: 000101 & Above) Battery And Fuel Parts Diagram

Pro-Chip Chipper, 44hp Yanmar Diesel

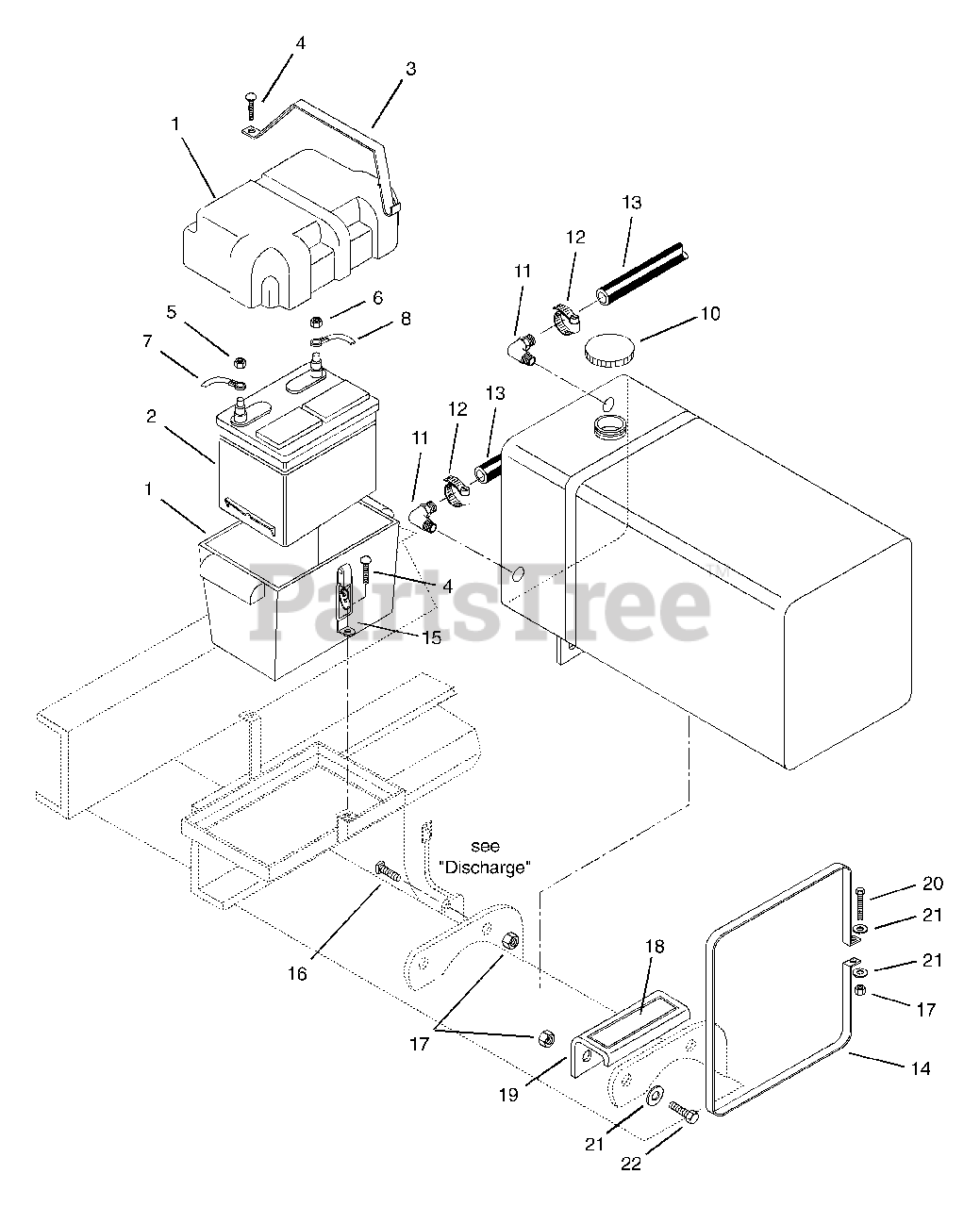

Battery And Fuel Parts Diagram

  • Title

1

Gravely 09305200

Box, Battery

$

$

Not available

2

Gravely 09305100

Battery, Marine Type

$

$

Not available

3

Gravely 09329300

Strap-Battery Hold Down
(Superseded to 09329351)

$

$

Not available

4

Gravely 06220200

Bolt-Round Head Square Neck .31-18 x 1.75 Grade 5
(Superseded to 06200324)

$2.99

$

In Stock, only 1 left!

0

5

Gravely 06529200

Nut-Hex .31-18
(Superseded to 06500938)

$0.99

$

In Stock, Qty 16

0

6

Gravely 06529400

Nut-Hex .38-16
(Superseded to 06500917)

$0.99

$

Usually ships in 4-12 days

0

7

Gravely 09304200

Cable-Battery (Negative)

Note: (Negative)

$

$

Not available

8

Gravely 04132400

Cable-Battery (Positive)

Note: (Positive)

$

$

Not available

9

Gravely 04121150

Gas Tank Weldment

$

$

Not available

10

Gravely 04202500

Gas Cap

$

$

Not available

11

Gravely 04026300

Elbow-90 Degree, Pipe w/Barbed Inserts

$

$

Not available

12

Gravely 06924300

Camp-Hose

$6.99

$

Usually ships in 4-12 days

0

13

Gravely 00924300

in. Gas Line-Bulk
(Superseded to 03278100)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 04140051

Strap-Tank

$

$

Not available

15

Gravely 09329400

Latch Assembly-Battery Hold Down
(Superseded to 09329451)

$

$

Not available

16

Gravely 05958500

Bolt-Hex .38-16 x 1.75 Grade 5
(Superseded to 05901809)

$1.49

$

In Stock, only 3 left!

0

17

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 00916400

Gasket
(Superseded to 02072000)

$

$

Not available

19

Gravely 04140100

Mount-Tank
(Superseded to 04140151)

$

$

Not available

20

Gravely 05958300

Bolt-Hex .38-16 x 3.00 Grade 5
(Superseded to 05901815)

$3.49

$

In Stock, only 1 left!

0

21

Gravely 06435900

Washer-Flat-Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

Usually ships in 4-12 days

0

22

Gravely 05958000

Bolt-Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 7

0
