993401 (Pro-Chip 944) - Gravely Pro-Chip Chipper, 44hp Yanmar Diesel (SN: 000101 & Above) Battery And Fuel Parts Diagram

Pro-Chip Chipper, 44hp Yanmar Diesel

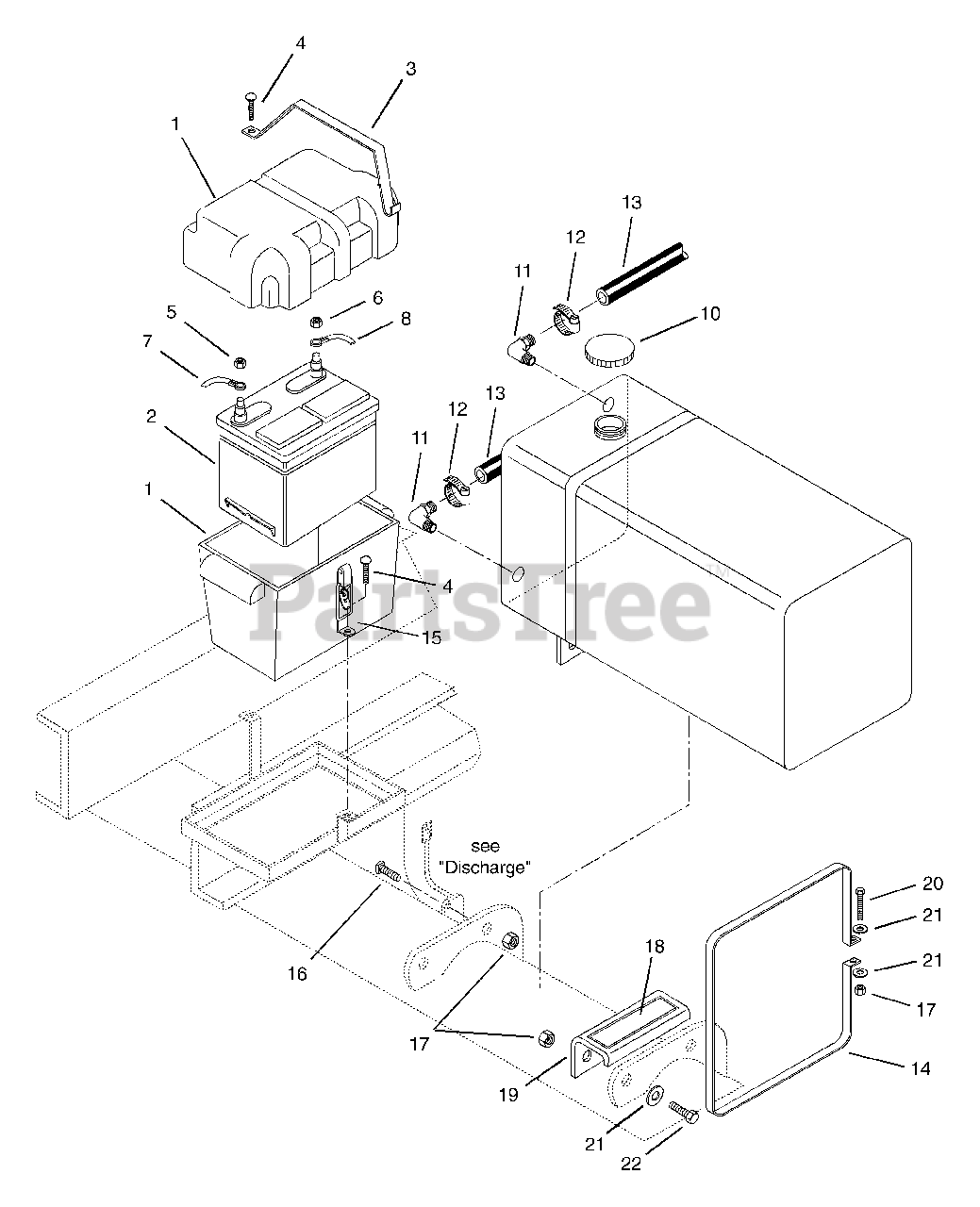

Battery And Fuel Parts Diagram

  • Title

1

Gravely 09305200

BATTERY BOX

$

$

Not available

2

Gravely 09305100

BATTERY MARINE TYPE

$

$

Not available

3

Gravely 09329300

STRAP-BATTERY HOLD-DOWN
(Superseded to 09329351)

$

$

Not available

4

Gravely 06220200

BLT-RDHDSQNK .31-18X1.75 G5YZ
(Superseded to 06200324)

$3.49

$

In Stock, Qty 15

0

5

Gravely 06529200

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

6

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 09304200

BATTERY CABLE

Note: (Negative)

$

$

Not available

8

Gravely 04132400

POSITIVE BATTERY CABLE

Note: (Positive)

$

$

Not available

9

Gravely 04121150

GAS TANK WELDMENT

$

$

Not available

10

Gravely 04202500

GAS CAP

$

$

Not available

11

Gravely 04026300

P-90 DEGREE ELBOW

$

$

Not available

12

Gravely 06924300

HOSE CLAMP

$7.99

$

Usually ships in 4-12 days

0

13

Gravely 00924300

GAS LINE-BULK 1/4" I.D.
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 04140051

TANK STRAPS

$

$

Not available

15

Gravely 09329400

LATCH ASSY-BATTERY HOLD-DOWN
(Superseded to 09329451)

$

$

Not available

16

Gravely 05958500

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 00916400

GASKET-FOAM W/ADHESIVE BACK
(Superseded to 02072000)

$

$

Not available

19

Gravely 04140100

TANK MOUNT
(Superseded to 04140151)

$

$

Not available

20

Gravely 05958300

BLT-HEX .38-16X3.00 GR5 FTH YZ
(Superseded to 05901815)

$3.49

$

In Stock, Qty 20+

0

21

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 15

0
