993401 (Pro-Chip 944) - Gravely Pro-Chip Chipper, 44hp Yanmar Diesel (SN: 000101 & Above) Bed Knife And Rotating Lock Parts Diagram

Pro-Chip Chipper, 44hp Yanmar Diesel

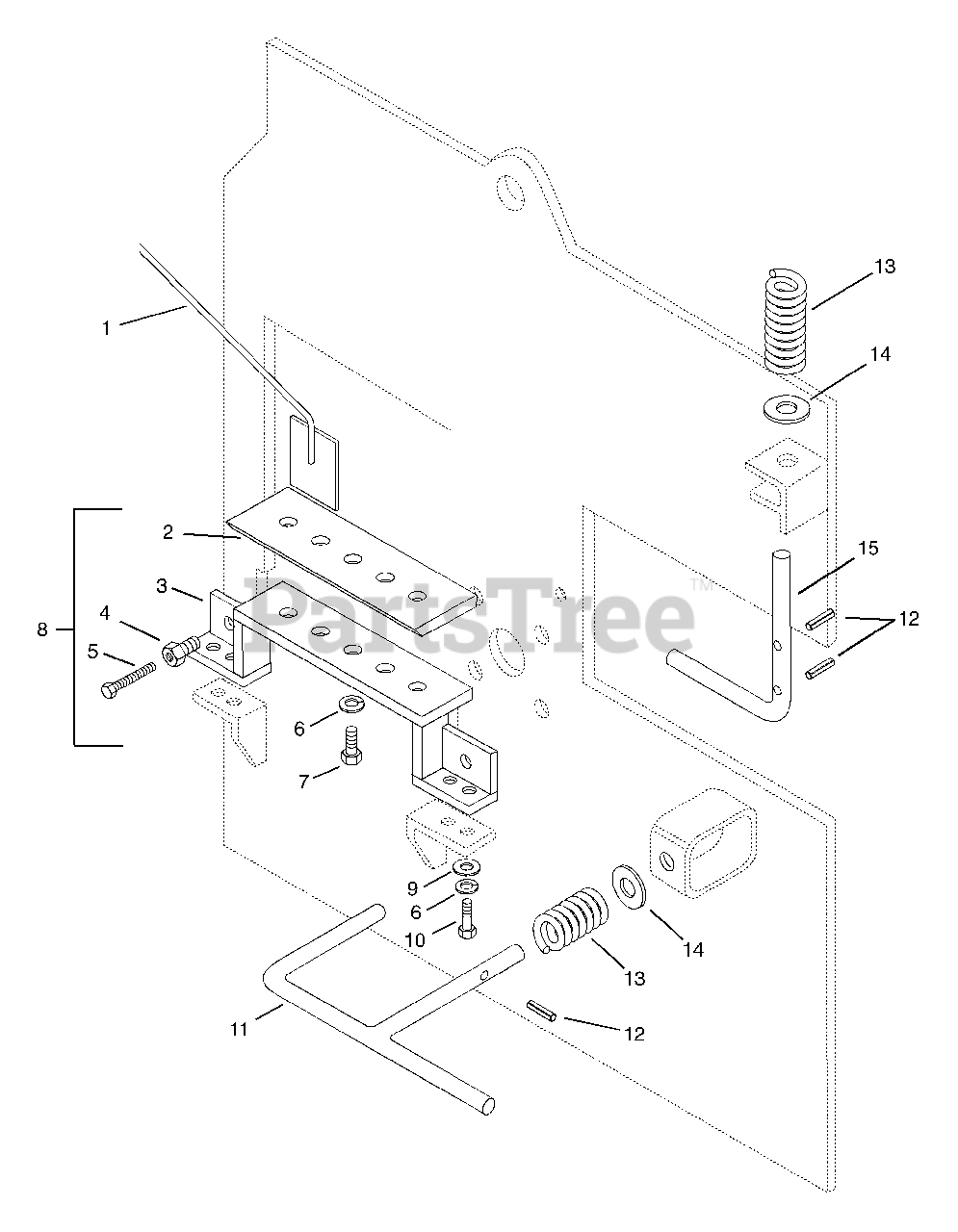

Bed Knife And Rotating Lock Parts Diagram

  • Title

1

Gravely 04133651

KNIFE GAUGE (.060)

$

$

Not available

2

Bed Knife

$

$

Not available

3

Gravely 04124251

BED KNIFE MOUNT WELDMENT

$

$

Not available

4

Gravely 04130400

BED KNIFE ADJUSTMENT

$

$

Not available

5

Gravely 05962900

BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

6

Gravely 06307300

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 05930600

BLT-HEX .50-13X1.25 YZ GR5

$

$

Not available

8

Gravely 59304600

BED KNIFE KIT 395

Note: (Includes Items 2, 6 and 7)

$

$

Not available

9

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 05958900

BLT-HEX .50-13X1.25 GR5 YWZC
(Superseded to 05901637)

$3.49

$

In Stock, Qty 6

0

11

Gravely 04123600

FLYWHEEL LOCK WELDMENT
(Superseded to 09353700)

$9.49

$

Usually ships in 4-12 days

0

12

Gravely 05803000

PIN-ROLL .188X1.50

$1.49

$

In Stock, only 4 left!

0

13

Gravely 08324100

SPRING .080X.91X3.38

$

$

Not available

14

Gravely 06442900

WSHR-FL-STL.688X1.75X.134 YWZ
(Superseded to 06401032)

$1.49

$

In Stock, Qty 13

0

15

Gravely 04130500

DETENT PIN

$

$

Not available
