993401 (Pro-Chip 944) - Gravely Pro-Chip Chipper, 44hp Yanmar Diesel (SN: 000101 & Above) Clutch Parts Diagram

Pro-Chip Chipper, 44hp Yanmar Diesel

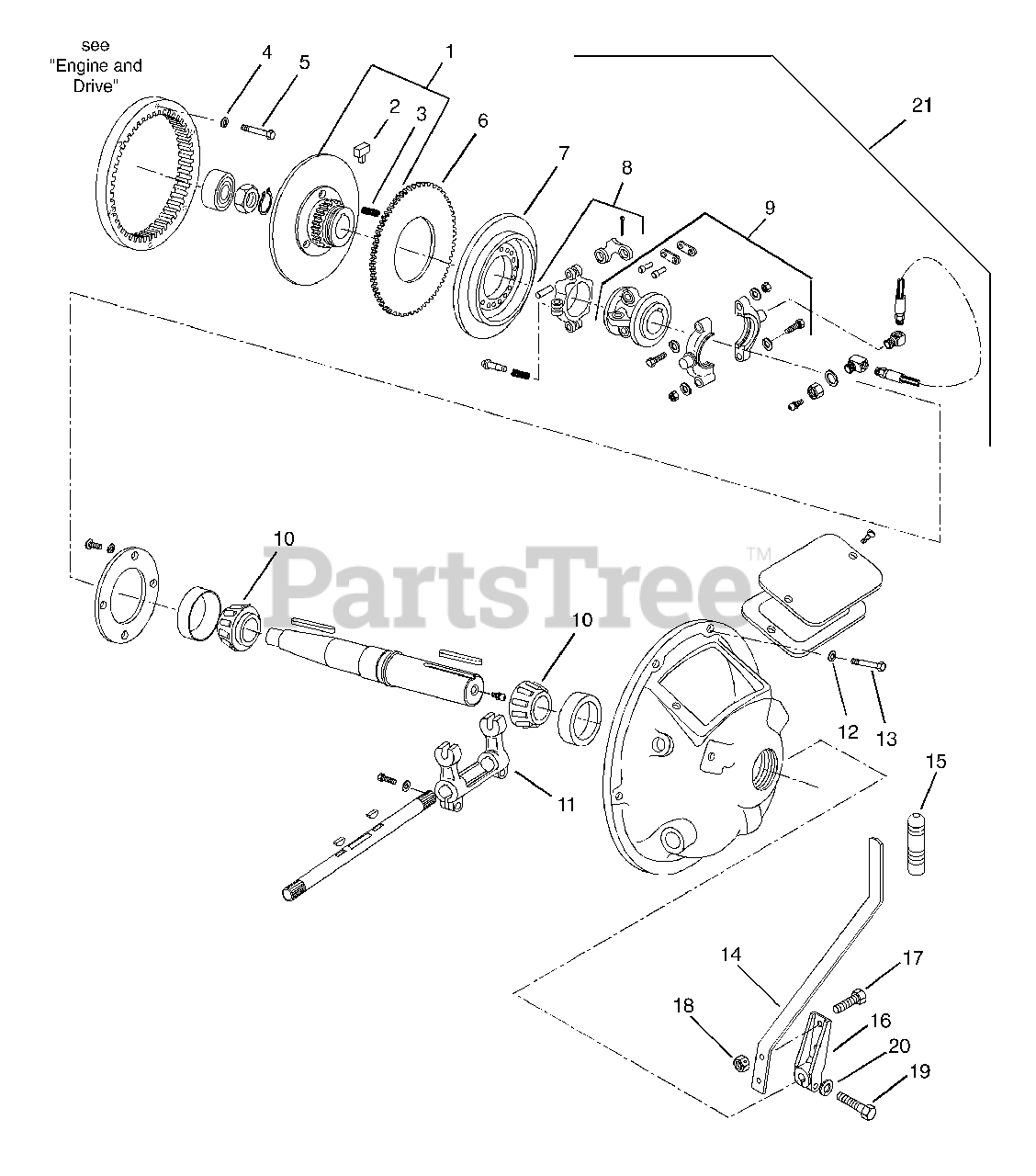

Clutch Parts Diagram

  • Title

1

Gravely 09312900

Plate-Hub and Back Assembly

$

$

Not available

2

Gravely 09321300

Pin Plate - Front and Back

$

$

Not available

3

Gravely 09313000

Spring-Release

$

$

Not available

4

Gravely 06308600

Washer-Locking .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 05931200

Bolt-Hex M8 x 1.25 x 35 mm Grade 10.9

$

$

Not available

6

Gravely 09313800

Plate-Driving Split

$

$

Not available

7

Gravely 09313900

Yoke-Adjusting Assembly

$

$

Not available

8

Gravely 09314000

Yoke-Adjusting Assembly

$

$

Not available

9

Gravely 09314100

Sleeve-Sliding Assembly

$

$

Not available

10

Gravely 09314200

Ball Bearing, Shaft Clutch

$

$

Not available

11

Gravely 09314300

Yoke-Throwout

$

$

Not available

12

Gravely 06309300

Washer-Locking .44 x .109
(Superseded to 06300121)

$2.99

$

In Stock, only 1 left!

0

13

Gravely 05943000

Bolt-Hex M10 x 1.50 x 25 mm

$2.99

$

Usually ships in 4-12 days

0

14

Gravely 09332100

Lever-Clutch

$

$

Not available

15

Gravely 07500600

Grip
(Superseded to 07500113)

$

$

Not available

16

Gravely 04138851

Clutch-Lever, Socket Diesel
(Superseded to 59316300)

$

$

Not available

17

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 05957900

Bolt-Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 5

0

20

Gravely 06308800

Washer-Locking .38 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 16

0

21

Gravely 04132200

Clutch Assembly

Note: (Contains Items 1-3, 6-11)

$

$

Not available
