993401 (Pro-Chip 944) - Gravely Pro-Chip Chipper, 44hp Yanmar Diesel (SN: 000101 & Above) Clutch Parts Diagram

Pro-Chip Chipper, 44hp Yanmar Diesel

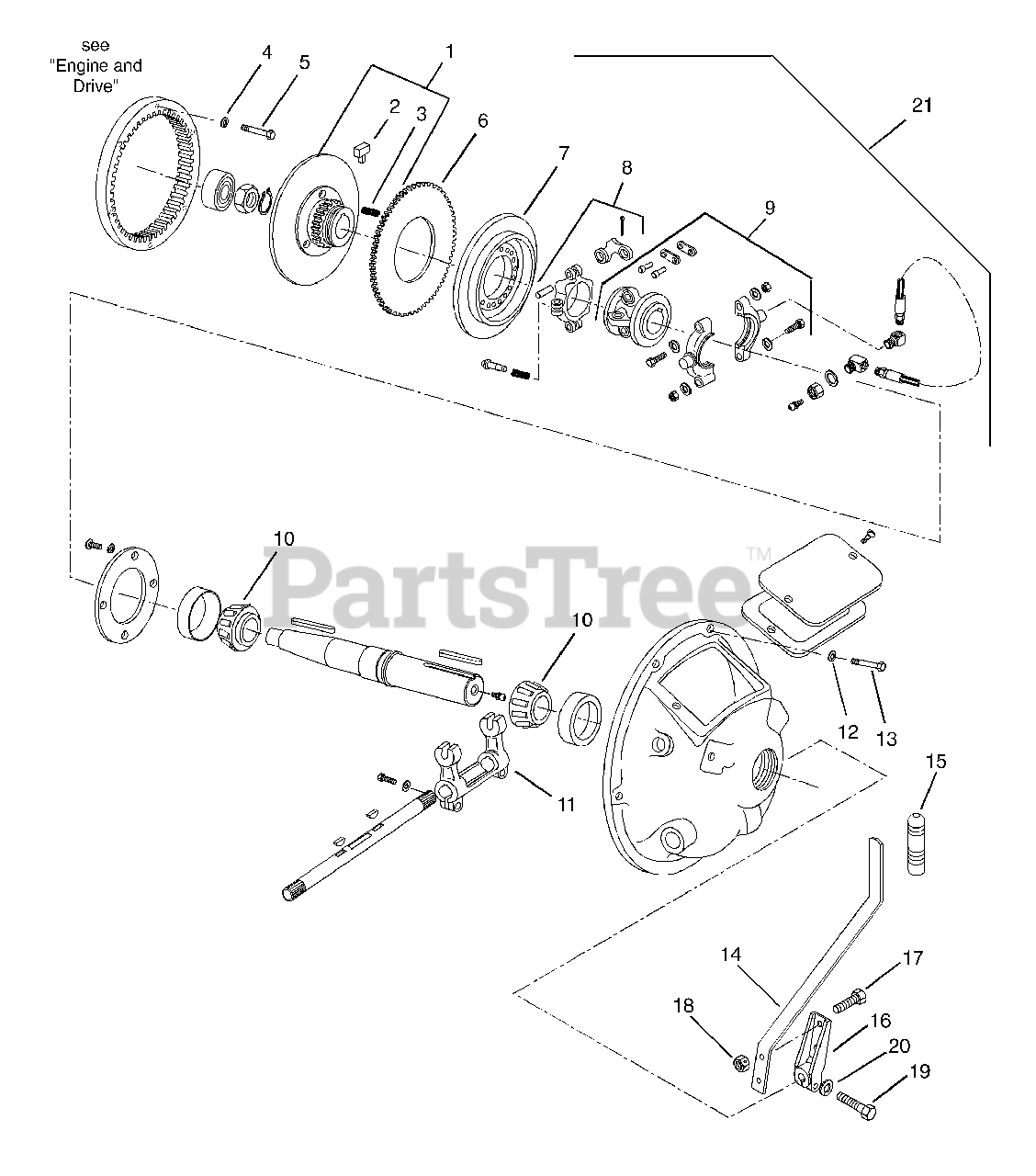

Clutch Parts Diagram

  • Title

1

Gravely 09312900

PLATE,HUB AND BACK,ASSEMBLY

$

$

Not available

2

Gravely 09321300

PIN PLATE

$

$

Not available

3

Gravely 09313000

SPRING,RELEASE

$

$

Not available

4

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 05931200

BLT-HEX M8X1.25X35 GR10.9 YWZC

$

$

Not available

6

Gravely 09313800

PLATE, DRIVING SPLIT

$

$

Not available

7

Gravely 09313900

PLATE,FLOATING

$

$

Not available

8

Gravely 09314000

YOKE, ADJUSTING ASSEMBLY

$

$

Not available

9

Gravely 09314100

SLEEVE,SLIDING,ASSEMBLY

$

$

Not available

10

Gravely 09314200

BALL BEARING,SHAFT,CLUTCH

$

$

Not available

11

Gravely 09314300

YOKE, THROWOUT

$

$

Not available

12

Gravely 06309300

WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 20+

0

13

Gravely 05943000

BLT-HEX M10 X 1.5X25 YWZC

$2.99

$

Usually ships in 4-12 days

0

14

Gravely 09332100

LEVER-CLUTCH

$

$

Not available

15

Gravely 07500600

GRIP
(Superseded to 07500113)

$

$

Not available

16

Gravely 04138851

CLUTCH LEVER SOCKET DIESEL
(Superseded to 59316300)

$

$

Not available

17

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, Qty 15

0

20

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 04132200

CLUTCH - ASSEMBLY

Note: (Contains Items 1-3, 6-11)

$

$

Not available
