993401 (Pro-Chip 944) - Gravely Pro-Chip Chipper, 44hp Yanmar Diesel (SN: 000101 & Above) Discharge Parts Diagram

Pro-Chip Chipper, 44hp Yanmar Diesel

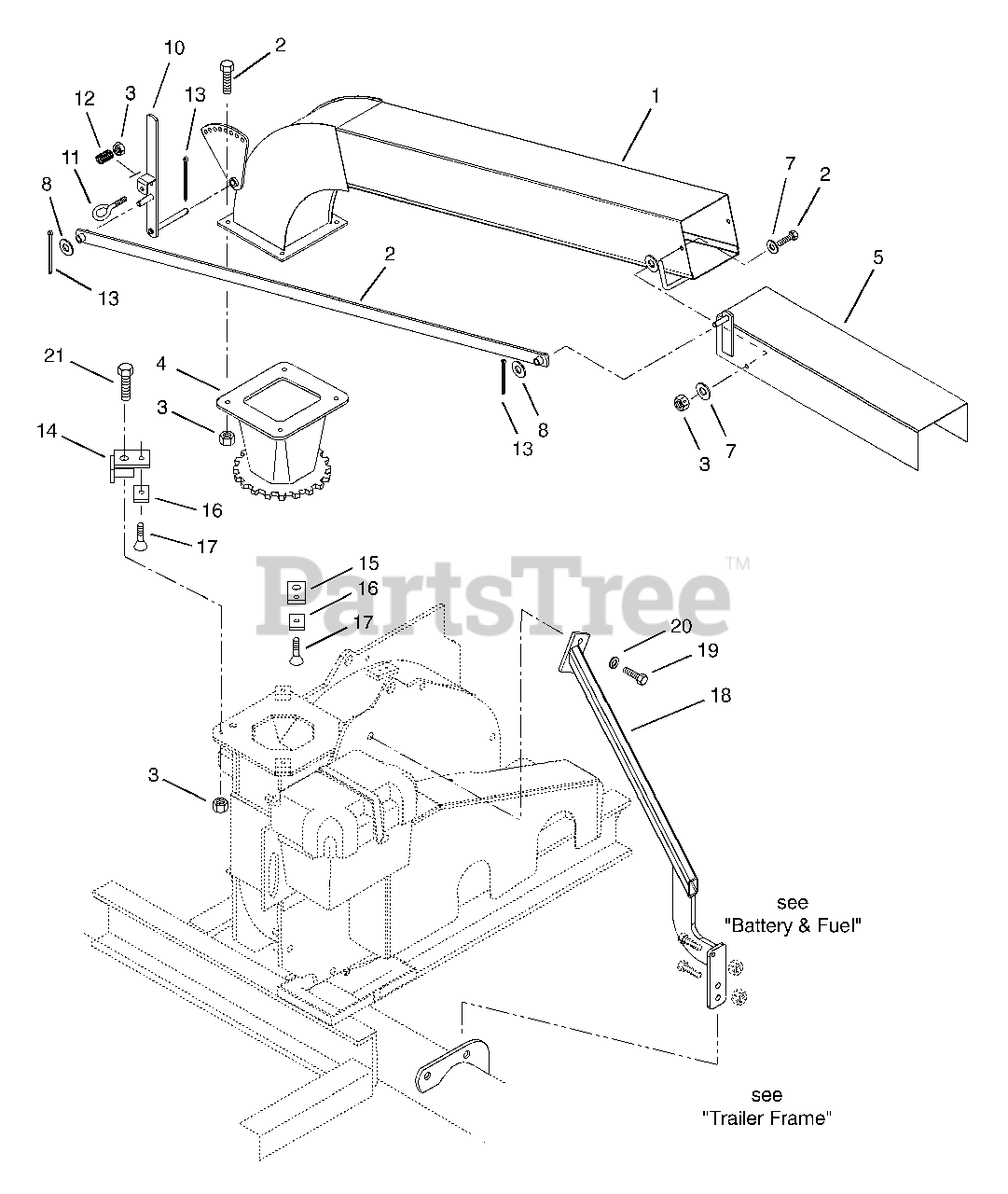

Discharge Parts Diagram

  • Title

1

Gravely 09326200

Tube-Discharge

$

$

Not available

2

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 04124400

Vertical Discharge Riser Weldment

$

$

Not available

5

Gravely 09331900

Bonnet Weldment

$

$

Not available

6

Gravely 06425000

Washer-Flat-Nylon .38 x 1.00 x .083

$

$

Not available

7

Gravely 06435900

Washer-Flat-Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

Usually ships in 4-12 days

0

8

Gravely 06442000

Washer-Flat-Steel .563 x 1.38 x .109
(Superseded to 06401012)

$3.49

$

In Stock, Qty 15

0

9

Gravely 09324500

Lever-Control Weldment

$

$

Not available

10

Gravely 09313300

Handle-Adjustment Weldment

$

$

Not available

11

Gravely 07030000

Bolt-Eye .375-16 x .50

$7.99

$

In Stock, only 1 left!

0

12

Gravely 08300600

Spring-Compression .045 x .50 x 1.187
(Superseded to 08300028)

$4.99

$

In Stock, Qty 8

0

13

Gravely 06707100

Pin-Cotter .12 x 1.00

$0.99

$

In Stock, Qty 12

0

14

Gravely 04123700

Discharge Retainer Weldment

$

$

Not available

15

Gravely 04123701

Retainer-Discharge

$

$

Not available

16

Gravely 04123200

Pad-Discharge Retainer

$

$

Not available

17

Gravely 06117300

Screw-Machine-Flat Countersunk Head .25-20 x .50

$

$

Not available

18

Gravely 09332000

Brace

$

$

Not available

19

Gravely 05946000

Bolt-Hex .50-13 x 1.75 Grade 5

$

$

Not available

20

Gravely 06307300

Washer-Locking .50 x .125
(Superseded to 06300115)

$1.49

$

In Stock, Qty 18

0

21

Gravely 05963300

Bolt-Hex .38-16 x 2.00 Grade 5
(Superseded to 05901718)

$2.99

$

In Stock, Qty 10

0
