993401 (Pro-Chip 944) - Gravely Pro-Chip Chipper, 44hp Yanmar Diesel (SN: 000101 & Above) Engine And Drive Parts Diagram

Pro-Chip Chipper, 44hp Yanmar Diesel

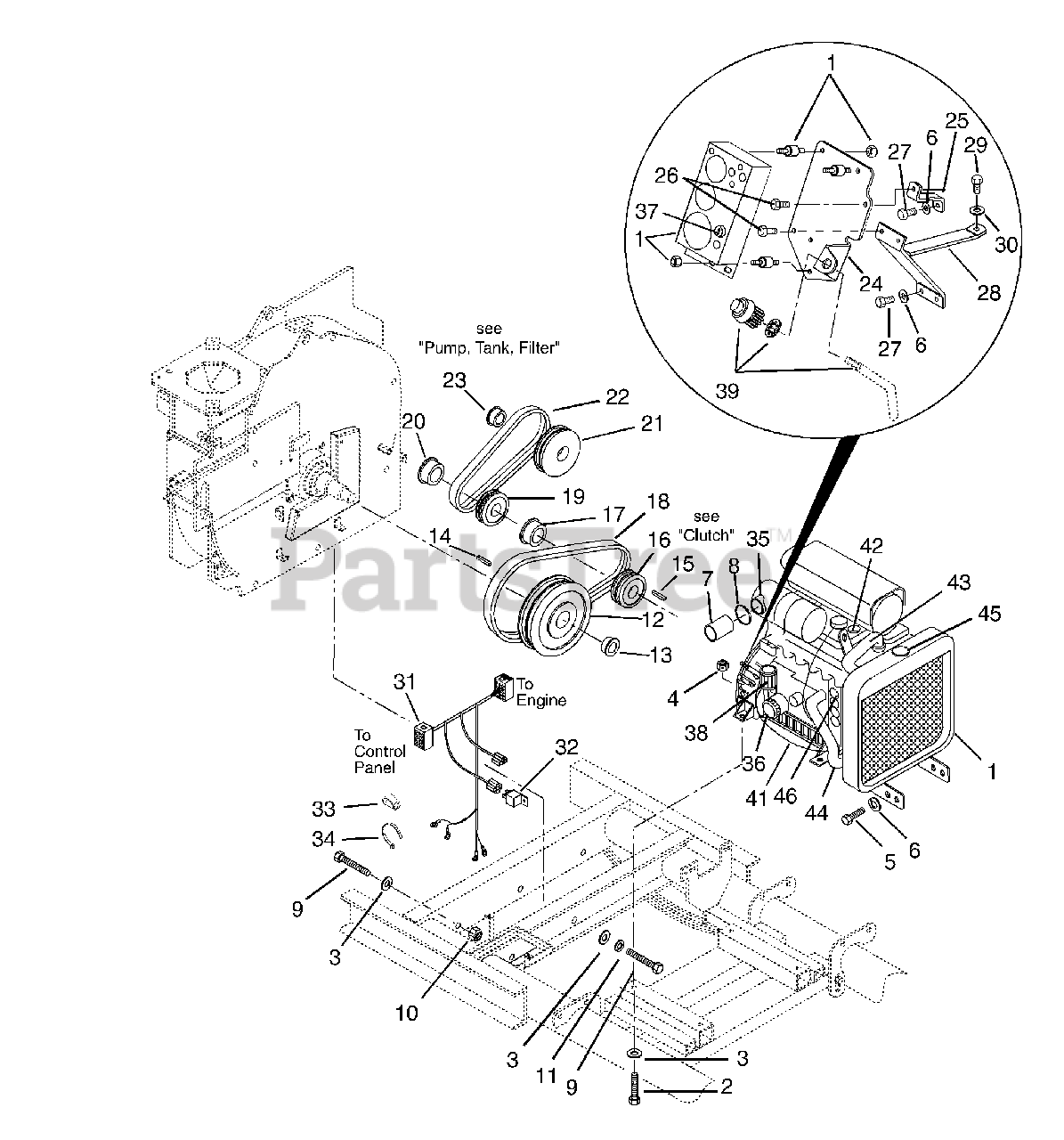

Engine And Drive Parts Diagram

  • Title

1

Gravely 08252700

Engine-Yanmar Diesel 44 HP 4TNE84-VM

Note: (Includes Control Panel and Control Panel Mounting Hardware)

$

$

Not available

2

Gravely 05958900

Bolt-Hex .50-13 x 1.25 Grade 5
(Superseded to 05901637)

$3.49

$

Usually ships in 4-12 days

0

3

Gravely 06442000

Washer-Flat-Steel .563 x 1.38 x 1.09
(Superseded to 06401012)

$3.49

$

In Stock, Qty 15

0

4

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

5

Gravely 05931300

Bolt-Hex M8 1.25 x 25 mm Grade 5
(Superseded to 05964900)

$2.49

$

Usually ships in 4-12 days

0

6

Gravely 06308600

Washer-Locking .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 07530000

Hose-Air Intake 2.5 I.D. x 5.00

$

$

Not available

8

Gravely 06940200

Clamp-Hose-Worm 2.3/3.2

$3.49

$

Usually ships in 4-12 days

0

9

Gravely 05946000

Bolt-Hex .50-13 x 1.75 Grade 8

$

$

Not available

10

Gravely 06528200

Nut-Locking-Cone .50-13 Grade C

$3.99

$

In Stock, only 2 left!

0

11

Gravely 06307300

Washer-Locking .50 x .125
(Superseded to 06300115)

$1.49

$

In Stock, Qty 18

0

12

Gravely 07315900

Pulley 3V 10.60-2517

$184.99

$

Usually ships in 4-12 days

0

13

Gravely 04129800

Bushing-Taperloc 2517-2

$53.99

$

Usually ships in 4-12 days

0

14

Gravely 06606400

Key-Straight .50 x .50 x 1.75

$

$

Not available

15

Gravely 06606800

Key-Square .375 x .375 x 1.25

$4.99

$

Usually ships in 4-12 days

0

16

Gravely 07316200

Pulley 4G-3V 5.3

$

$

Not available

17

Gravely 04133100

Bushing-SDS 1-7/16 O.D.

$

$

Not available

18

Gravely 07218800

Belt - 4 x 3V475

$

$

Not available

19

Gravely 07316100

Pulley 2G-3V 5.3

$

$

Not available

20

Gravely 04133000

Bushing-SH 1-7/16 O.D.

$

$

Not available

21

Gravely 07315800

Pulley 3V 6.90-1610

$

$

Not available

22

Gravely 07218700

Belt-2 x 3V450

$

$

Not available

23

Gravely 04129600

Bushing-Taperloc 1610-3/4

$32.99

$

Usually ships in 4-12 days

0

24

Gravely 09343700

Mount-Instrument Panel

$20.99

$

Usually ships in 4-12 days

0

25

Gravely 09343600

Bracket-Instrument Panel-Upper

$5.99

$

Usually ships in 4-12 days

0

26

Gravely 07414400

Screw-Tapping .31-18 x .75 Hex Washer Head
(Superseded to 07400127)

$1.49

$

In Stock, only 2 left!

0

27

Gravely 05956300

Bolt-Hex M8 x 1.25 x 16 mm

$

$

Not available

28

Gravely 09343500

Bracket-Instrument Panel-Lower w/Assembly

$9.49

$

Usually ships in 4-12 days

0

29

Gravely 05959400

Bolt-Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, only 2 left!

0

30

Gravely 06308800

Washer-Locking .38 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 17

0

31

Gravely 09343400

Harness-Relay/Jumper Wiring

Note: (Includes Item 32); Used on Model 993403, Serial No's: 000101-000250.

$

$

Not available

31

Gravely 09353800

Harness, Wire- 944 Chipper

Note: (Includes Item 32); Used on Model 9934XX, Serial No's: 000251 and up & 000101 and up.

$

$

Not available

32

Gravely 040216

Relay
(Superseded to 00432101)

$20.99

$

In Stock, Qty 16

0

33

Gravely 051728

Clip-Wire
(Superseded to 06921600)

$

$

Not available

34

Gravely 04003800

Tie Wrap

$

$

Not available

35

Gravely 21524000

Air Filter Element, Primary

$

$

Not available

36

Gravely 21524100

Oil Filter

$

$

Not available

37

Gravely 21524300

Key, Ignition

$

$

Not available

37

Gravely 21524200

Key Switch Assembly

$

$

Not available

38

Gravely 20892100

Fuel Filter Element

$

$

Not available

38

Gravely 20893400

Clamp, Fuel Line

$

$

Not available

38

Gravely 20892300

Retainer, Fuel Filter Bowl

$28.99

$

Usually ships in 4-12 days

0

38

Gravely 20905600

O-Ring, Fuel Filter

$

$

Not available

38

Gravely 20892400

Nut, Fuel Filter Retaining

$

$

Not available

39

Gravely 21524400

Throttle Cable

$256.99

$

Usually ships in 4-12 days

0

40

Gravely 20881000

V-Belt

$

$

Not available

41

Gravely 21524500

Plug, Oil Drain

$

$

Not available

41

Gravely 21524600

Seal, Oil Plug

$

$

Not available

42

Gravely 20867200

Oil Fill Cap

$17.99

$

Usually ships in 4-12 days

0

42

Gravely 21524700

O-Ring, Oil Fill Cap

$

$

Not available

43

Gravely 21524800

Hose, Upper Radiator

$39.99

$

Usually ships in 4-12 days

0

44

Gravely 21438200

Hose, Lower Radiator

$47.99

$

Usually ships in 4-12 days

0

45

Gravely 21427700

Cap, Radiator

$34.99

$

Usually ships in 4-12 days

0

46

Gravely 20882600

Thermostat

$

$

Not available
