993401 (Pro-Chip 944) - Gravely Pro-Chip Chipper, 44hp Yanmar Diesel (SN: 000101 & Above) Engine Housing And Belt Guard Parts Diagram

Pro-Chip Chipper, 44hp Yanmar Diesel

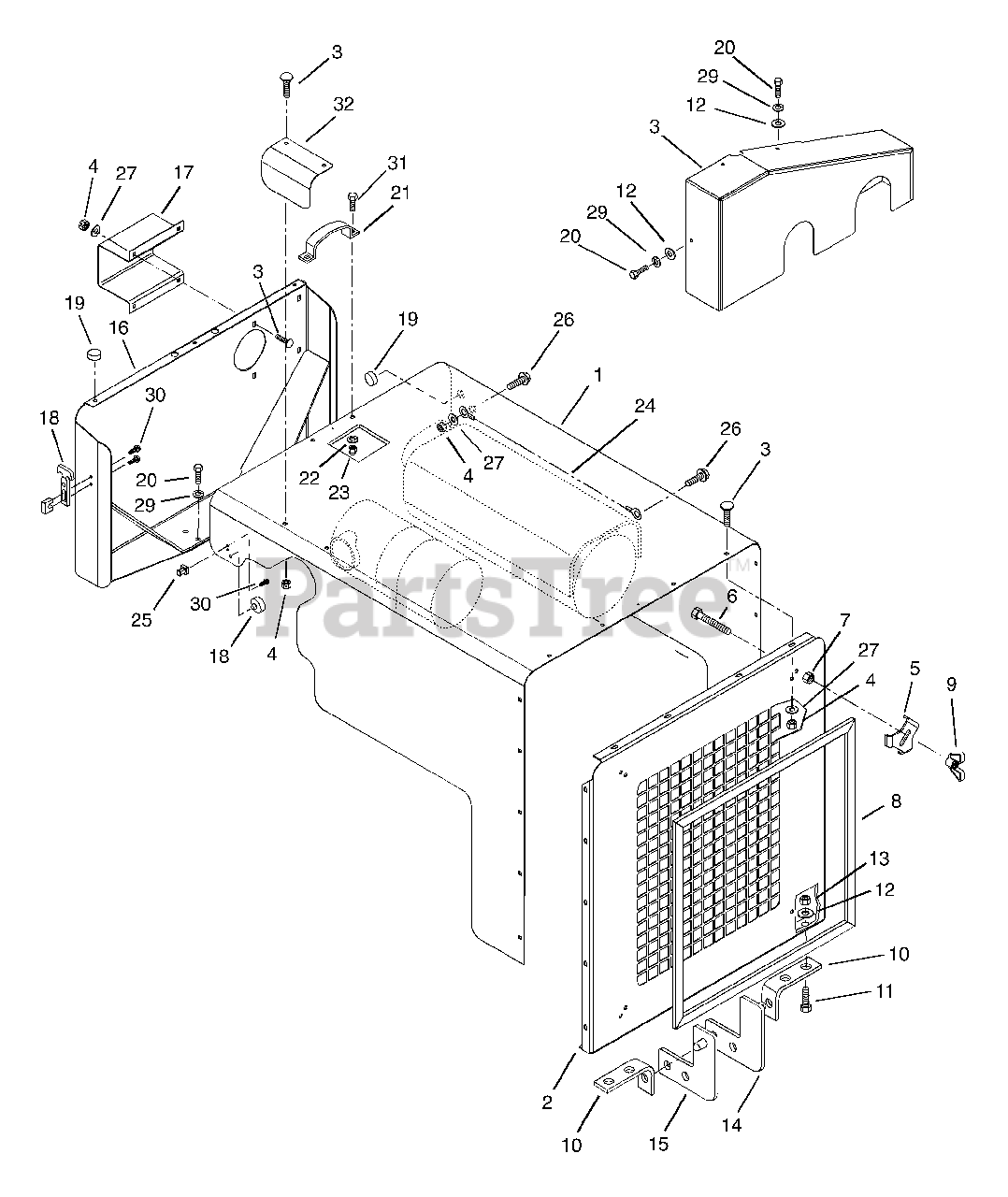

Engine Housing And Belt Guard Parts Diagram

  • Title

1

Gravely 09345200

COWLING-TOP

$131.99

$

Usually ships in 4-12 days

0

2

Gravely 09345100

COWLING-FRONT WELDMENT

$

$

Not available

3

Gravely 06220600

BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$1.49

$

In Stock, Qty 11

0

4

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 09333200

CLIP, SCREEN

$

$

Not available

6

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 09345400

SCREEN, RADIATOR 18X22

$70.99

$

Usually ships in 4-12 days

0

9

Gravely 06537100

NUT-NYLK WING .312-18 YWZC

$6.49

$

In Stock, only 1 left!

0

10

Gravely 04137300

COWLING MOUNT BRACKET

$

$

Not available

11

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 04137800

LEFT PIVOT WELDMENT

$

$

Not available

15

Gravely 04137700

RIGHT PIVOT WELDMENT

$

$

Not available

16

Gravely 09345000

COWLING-REAR WELDMENT

$56.99

$

Usually ships in 4-12 days

0

17

Gravely 09345300

GUARD-TAIL PIPE

$

$

Not available

18

Gravely 09079500

LATCH, RUBBER

$35.99

$

In Stock, Qty 5

0

19

Gravely 07516000

BUTTON BUMPER

$1.49

$

In Stock, Qty 13

0

20

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 14

0

21

Gravely 04137951

HANDLE - COWLING

$5.99

$

Usually ships in 4-12 days

0

22

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06530800

NUT-CROWN .312-18 YWZC

$6.49

$

Usually ships in 4-12 days

0

24

Gravely 039054

CABLE
(Superseded to 06910200)

$38.99

$

Usually ships in 4-12 days

0

25

Gravely 05956300

BLT-HEX M8 X 1.25X16 YWZC

$

$

Not available

26

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

27

Gravely 06435800

WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 04121200

BELT GUARD WELDMENT

$

$

Not available

29

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 06110900

SCR-MCH .25-20X.50

$2.49

$

Usually ships in 4-12 days

0

31

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

32

Gravely 09345900

GUARD-AIR CLEANER INLET

$5.99

$

Usually ships in 4-12 days

0
