993401 (Pro-Chip 944) - Gravely Pro-Chip Chipper, 44hp Yanmar Diesel (SN: 000101 & Above) Engine Housing And Belt Guard Parts Diagram

Pro-Chip Chipper, 44hp Yanmar Diesel

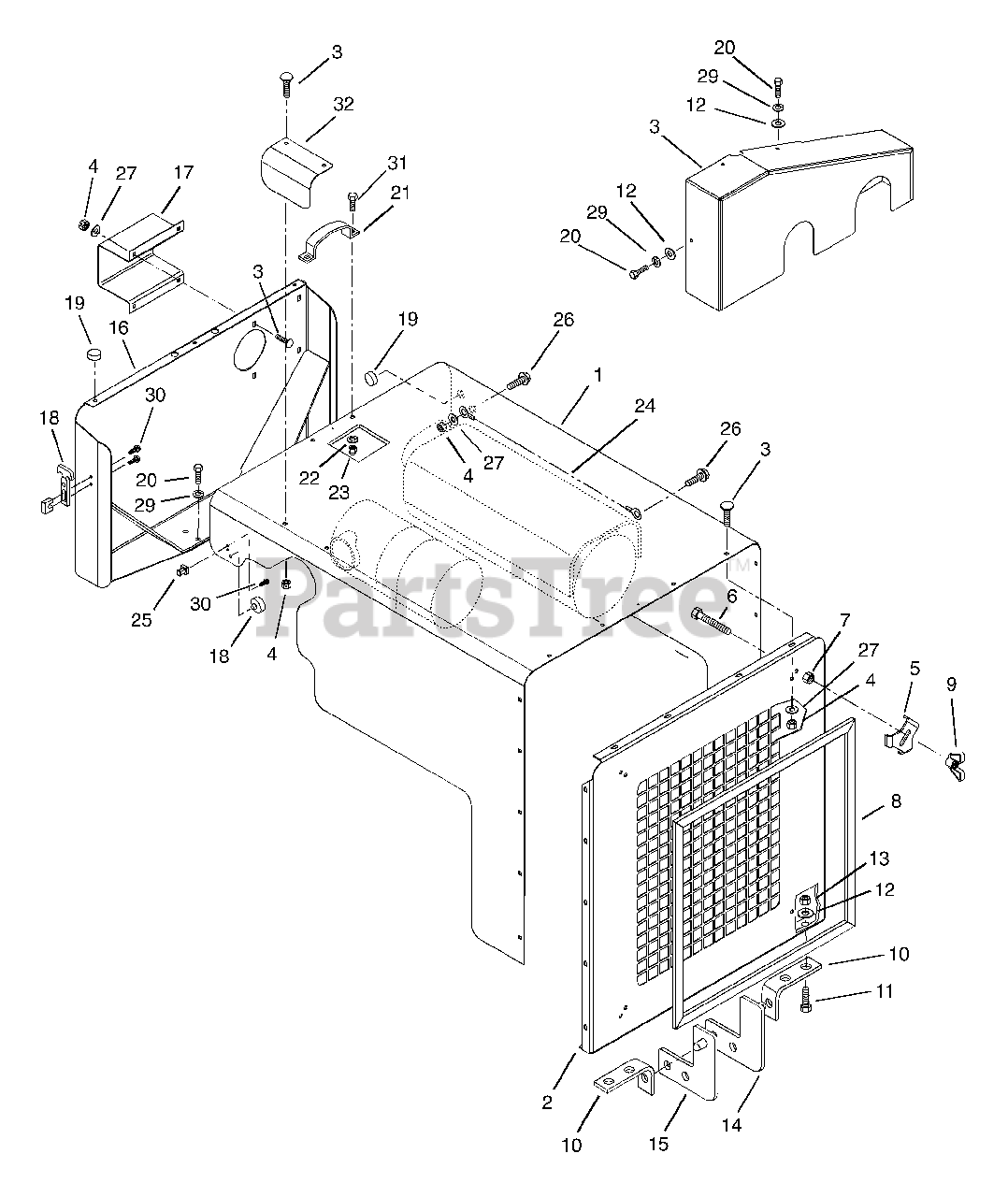

Engine Housing And Belt Guard Parts Diagram

  • Title

1

Gravely 09345200

Cowling-Top

$131.99

$

Usually ships in 4-12 days

0

2

Gravely 09345100

Cowling-Front Weldment

$

$

Not available

3

Gravely 06220600

Bolt-Round Head Square Neck .25-20 x .50 Grade 5
(Superseded to 06200306)

$0.99

$

In Stock, Qty 7

0

4

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 09333200

Clip-Screen

$

$

Not available

6

Gravely 05946900

Bolt-Hex .31-18 x 1.25 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, only 4 left!

0

7

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 09345400

Screen-Radiator 18 x 22

$70.99

$

Usually ships in 4-12 days

0

9

Gravely 06537100

Nut-Nylock-Wing .31-18

$5.99

$

In Stock, only 1 left!

0

10

Gravely 04137300

Bracket-Cowling Mount

$

$

Not available

11

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06435900

Washer-Flat-Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

In Stock, only 4 left!

0

13

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 04137800

Left Pivot Weldment

$

$

Not available

15

Gravely 04137700

Right Pivot Weldment

$

$

Not available

16

Gravely 09345000

Cowling-Rear Weldment

$56.99

$

Usually ships in 4-12 days

0

17

Gravely 09345300

Guard-Tail Pipe

$

$

Not available

18

Gravely 09079500

Hook-Rubber

$34.99

$

In Stock, only 2 left!

0

19

Gravely 07516000

Button Bumper

$1.99

$

In Stock, Qty 17

0

20

Gravely 05959400

Bolt-Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, only 2 left!

0

21

Gravely 04137951

Handle-Cowling

$5.99

$

Usually ships in 4-12 days

0

22

Gravely 06308600

Washer-Locking .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 06530800

Nut-Crown .31-18

$5.99

$

Usually ships in 4-12 days

0

24

Gravely 039054

Cable
(Superseded to 06910200)

$37.99

$

Usually ships in 4-12 days

0

25

Gravely 05956300

Bolt-Hex M8 1.25 x 16 mm

$

$

Not available

26

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 10

0

27

Gravely 06435800

Washer-Flat-Steel .312 x .734 x .065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 8

0

28

Gravely 04121200

Guard-Belt Weldment

$

$

Not available

29

Gravely 06308800

Washer-Locking .38 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 16

0

30

Gravely 06110900

Screw-Machine-Hex Washer Head 10-24 x .75

$2.49

$

Usually ships in 4-12 days

0

31

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 10

0

32

Gravely 09345900

Guard-Air Cleaner Inlet

$5.99

$

Usually ships in 4-12 days

0
