993401 (Pro-Chip 944) - Gravely Pro-Chip Chipper, 44hp Yanmar Diesel (SN: 000101 & Above) Flywheel And Housing Parts Diagram

Pro-Chip Chipper, 44hp Yanmar Diesel

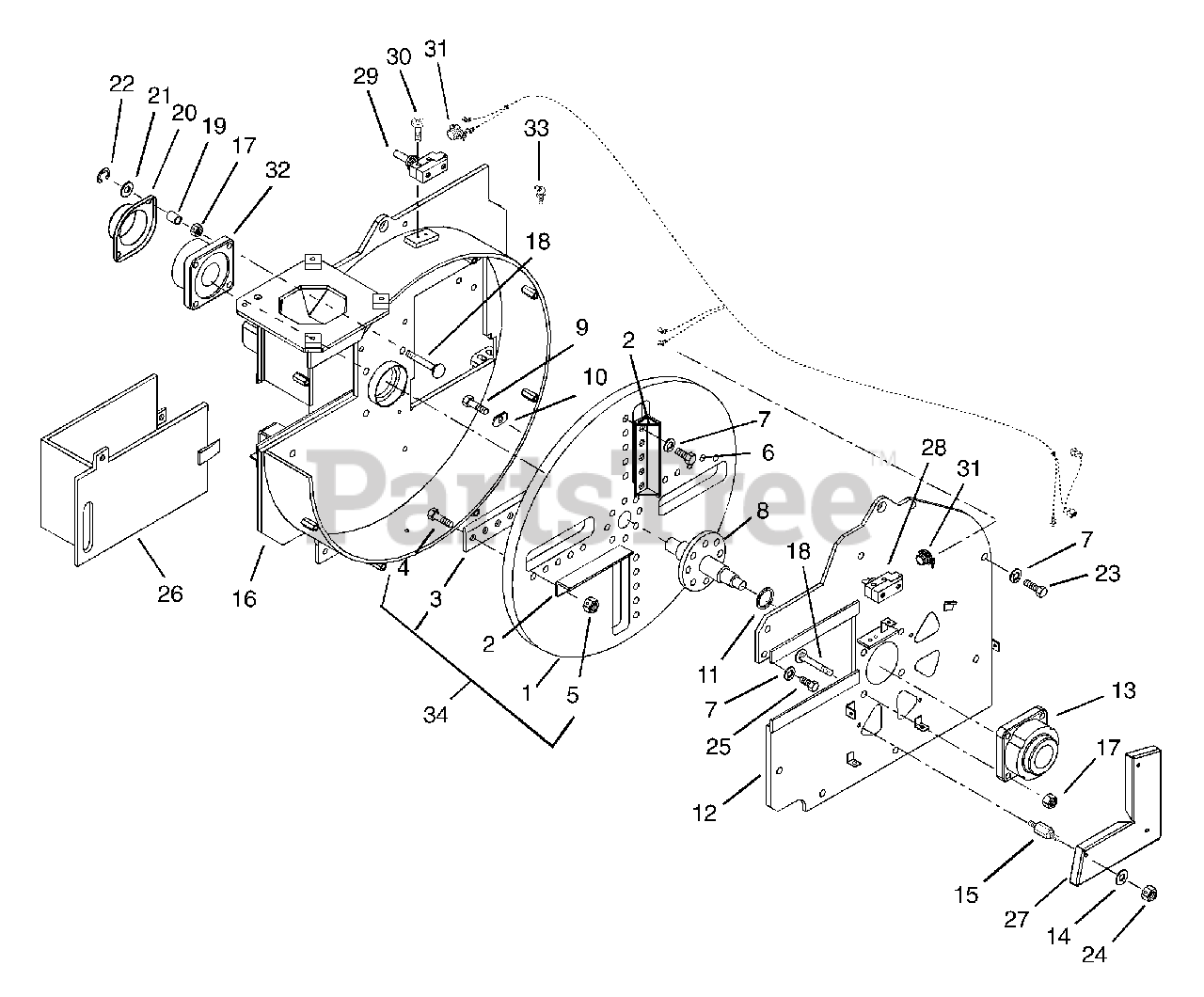

Flywheel And Housing Parts Diagram

  • Title

1

Gravely 04122000

Flywheel

$

$

Not available

2

Gravely 04121900

Impeller Angle

$

$

Not available

3

Chipper Knife

Chipper Knife

$

$

Not available

4

Gravely 05930800

Bolt-Flat Socket Head .50-13 x 3.00 Grade 8

$

$

Not available

5

Gravely 06528200

Nut-Locking-Cone .50-13 Grade C

$3.99

$

In Stock, only 2 left!

0

6

Gravely 05958900

Bolt-Hex .50-13 x 1.25 Grade 5
(Superseded to 05901637)

$3.49

$

Usually ships in 4-12 days

0

7

Gravely 06307300

Washer-Locking .50 x .125
(Superseded to 06300115)

$1.49

$

In Stock, Qty 18

0

8

Gravely 04121700

Shaft Weldment

$

$

Not available

9

Gravely 05930700

Bolt-Hex .62-11 x 2.25 Grade 8

$3.99

$

In Stock, only 1 left!

0

10

Gravely 04125200

Lock Tab

$

$

Not available

11

Gravely 09303100

Shim-Flywheel Shaft

$

$

Not available

12

Gravely 04121000

Housing-Chipper-Front Weldment

$

$

Not available

13

Gravely 05418400

Bearing-Flange 2.00 Inner Diameter Expandable

$

$

Not available

14

Gravely 06435900

Washer-Flat-Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

Usually ships in 4-12 days

0

15

Gravely 09304800

Spacer-Screen

$5.99

$

Usually ships in 4-12 days

0

16

Gravely 04120800

Rear Chipper Housing Weldment

$

$

Not available

17

Gravely 06519200

Nut-Locking .62-18

$

$

Not available

18

Gravely 04129900

Bolt-Rib Neck

$

$

Not available

19

Gravely 09344200

Coupler

$

$

Not available

20

Gravely 09309200

Cover-Bearing

$

$

Not available

21

Gravely 06441400

Washer-Flat-Steel .754 x 1.125 x .062
(Superseded to 06401119)

$0.99

$

In Stock, Qty 6

0

22

Gravely 05701200

Ring-Retaining External .750 x .042
(Superseded to 05700135)

$2.49

$

In Stock, Qty 8

0

23

Gravely 05946000

Bolt-Hex .50-13 x 1.75 Grade 5

$

$

Not available

24

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 05947100

Bolt-Hex .50-13 x 1.00 Grade 5
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

26

Gravely 04120900

Access Cover Weldment
(Superseded to 04120953)

$79.99

$

Usually ships in 4-12 days

0

27

Gravely 09304451

Guard-Screen

$

$

Not available

28

Gravely 04130100

Switch

$

$

Not available

29

Gravely 04130000

Switch

$

$

Not available

30

Gravely 06118800

Screw-Machine-Pen Head 6-32 x 1.50

$

$

Not available

31

Gravely 04132700

Connector

$

$

Not available

32

Gravely 05418300

Flange-Bearing

$

$

Not available

33

Gravely 07012600

Fitting-Lube .25-28 x .256
(Superseded to 07001806)

$

$

Not available

34

Gravely 59304500

Set-Chipper Knife

Note: (Includes Items 3 Through 5)

$

$

Not available
