993401 (Pro-Chip 944) - Gravely Pro-Chip Chipper, 44hp Yanmar Diesel (SN: 000101 & Above) Flywheel And Housing Parts Diagram

Pro-Chip Chipper, 44hp Yanmar Diesel

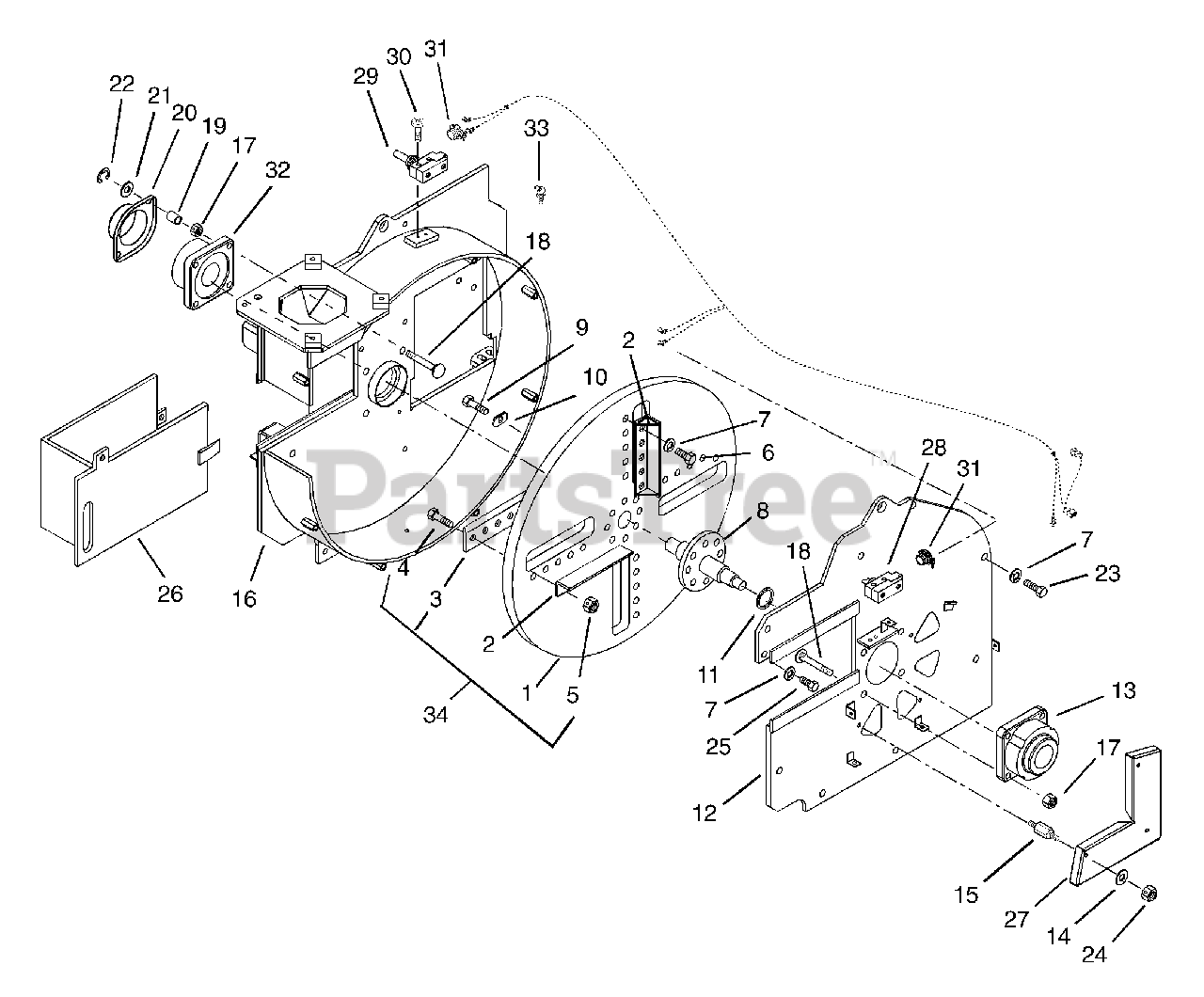

Flywheel And Housing Parts Diagram

  • Title

1

Gravely 04122000

FLYWHEEL

$

$

Not available

2

Gravely 04121900

IMPELLER ANGLE WELDMENT

$

$

Not available

3

Chipper Knife

$

$

Not available

4

Gravely 05930800

BLT-FL-SKH.50-13X3.00 GR8 BP&O

$

$

Not available

5

Gravely 06528200

NUT-LK-CONE .50-13 GR C YWZC

$3.99

$

In Stock, Qty 5

0

6

Gravely 05958900

BLT-HEX .50-13X1.25 GR5 YWZC
(Superseded to 05901637)

$3.49

$

In Stock, Qty 6

0

7

Gravely 06307300

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 04121700

SHAFT WELDMENT

$

$

Not available

9

Gravely 05930700

BLT-HEX .62-11X2.25 YWZC GR8

$3.99

$

Usually ships in 4-12 days

0

10

Gravely 04125200

LOCK TAB

$

$

Not available

11

Gravely 09303100

SHIM-FLYWHEEL SHAFT

$

$

Not available

12

Gravely 04121000

CHIPPER HOUSING-FRONT WELDMENT

$

$

Not available

13

Gravely 05418400

BRG-FLG 2.4375ID EXPANDABLE

$

$

Not available

14

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 09304800

SPACER-SCREEN

$5.99

$

Usually ships in 4-12 days

0

16

Gravely 04120800

REAR CHIPPER HOUSING WELDMENT

$

$

Not available

17

Gravely 06519200

NUT-LK .625-18 FLEX YWZC

$

$

Not available

18

Gravely 04129900

BOLT-RIB NECK .625-18 X 2.19

$

$

Not available

19

Gravely 09344200

COUPLER

$

$

Not available

20

Gravely 09309200

BEARING COVER

$

$

Not available

21

Gravely 06441400

WSHR-FL-STL.754X1.125X.062YWZC
(Superseded to 06401119)

$1.49

$

In Stock, Qty 14

0

22

Gravely 05701200

RG-RTNG-EXT .750X.042
(Superseded to 05700135)

$2.99

$

In Stock, only 2 left!

0

23

Gravely 05946000

BLT-HEX .50-13X1.75 YZ GR8

$

$

Not available

24

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 05947100

BLT-HEX .50-13X1.00 GR5 YWZC
(Superseded to 05901715)

$2.99

$

In Stock, only 2 left!

0

26

Gravely 04120900

ACCESS COVER WELDMENT
(Superseded to 04120953)

$79.99

$

Usually ships in 4-12 days

0

27

Gravely 09304451

SCREEN GUARD

$

$

Not available

28

Gravely 04130100

SWITCH

$

$

Not available

29

Gravely 04130000

SWITCH

$

$

Not available

30

Gravely 06118800

SCR-MCH 6-32X1.50 PHD CR YWZC

$

$

Not available

31

Gravely 04132700

ROMEX CONNECTOR 6623 3/8

$

$

Not available

32

Gravely 05418300

BRG-FLG 2.4375 ID NON-EXPANDAB

$

$

Not available

33

Gravely 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

34

Gravely 59304500

CHIPPER KNIFE SET 395

Note: (Includes Items 3 Through 5)

$

$

Not available
