993401 (Pro-Chip 944) - Gravely Pro-Chip Chipper, 44hp Yanmar Diesel (SN: 000101 & Above) Hopper Parts Diagram

Pro-Chip Chipper, 44hp Yanmar Diesel

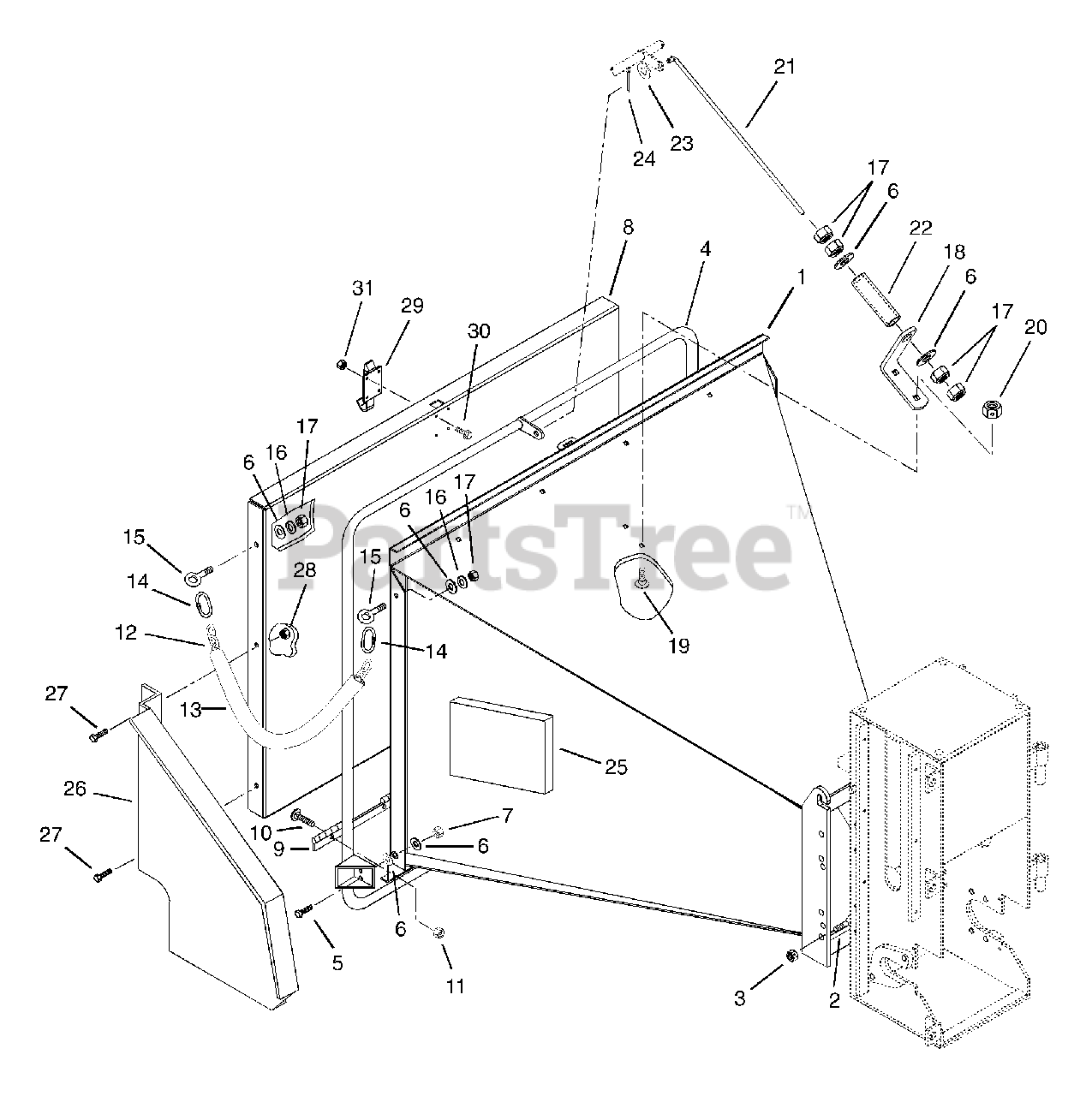

Hopper Parts Diagram

  • Title

1

Gravely 59316100

HOPPER-REPAIR ASSY

Note: Used on Model 993403, Serial No's: 000101-000250.

$

$

Not available

Gravely 09352600

HOPPER WELD ASSY

Note: Used on Model 9934XX, Serial No's: 000251 and up and 000101 and up.

$517.99

$

Usually ships in 4-12 days

0

2

Gravely 06117200

SCR-MCH.500-13X1.25FLCNTRSSHPL

$

$

Not available

3

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 18

0

4

Gravely 09340600

BAR-FEED CONTROL WELD ASSY

$1875.99

$

Usually ships in 4-12 days

0

5

Gravely 05958500

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 59316200

APRON-REPAIR ASSY

Note: Used on Model 993403, Serial No's: 000101-000250.

$

$

Not available

Gravely 09352700

APRON WELD ASSY

Note: Used on Model 9934XX, Serial No's: 000251 and up and 000101 and up.

$176.99

$

Usually ships in 4-12 days

0

9

Gravely 04125400

HINGE

$

$

Not available

10

Gravely 06220600

BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$1.49

$

In Stock, Qty 11

0

11

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 04130600

CHAIN

Note: Used on Model 993403, Serial No's: 000101-000250.

$17.99

$

Usually ships in 4-12 days

0

13

Gravely 04130700

VINYL TUBING

Note: Used on Model 993403, Serial No's: 000101-000250.

$

$

Not available

14

Gravely 09300300

QUICK LINK 5/16" SAFETY TYPE

Note: Used on Model 993403, Serial No's: 000101-000250.

$

$

Not available

15

Gravely 04138200

EYE BOLT .375 X 1.250- PLATED

Note: Used on Model 993403, Serial No's: 000101-000250.

$

$

Not available

16

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 09337700

BRACKET-VALVE STOP

$

$

Not available

19

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

20

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 09338300

ROD-VALVE STOP

$

$

Not available

22

Gravely 00931900

TUBING-URETHANE .438X.688

$

$

Not available

23

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 06707300

PIN-CTR .12X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 6

0

25

Gravely 09347000

BOX-LITERATURE

$

$

Not available

26

Gravely 09352900

SIDE-APRON RH

Note: Used on Model 9934XX, Serial No's: 000251 and up and 000101 and up.

$31.99

$

Usually ships in 4-12 days

0

Gravely 09353000

SIDE-APRON LH

Note: Used on Model 9934XX, Serial No's: 000251 and up and 000101 and up.

$60.99

$

Usually ships in 4-12 days

0

27

Gravely 05967000

BLT-HEX .38-16X.50 GR5 YWZC

Note: Used on Model 9934XX, Serial No's: 000251 and up and 000101 and up.

$3.99

$

Usually ships in 4-12 days

0

28

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

Note: Used on Model 9934XX, Serial No's: 000251 and up and 000101 and up.

$1.49

$

In Stock, Qty 20+

0

29

Gravely 04122900

LATCH

Note: Used on Model 9934XX, Serial No's: 000251 and up and 000101 and up.

$

$

Not available

30

Gravely 06116700

SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

Note: Used on Model 9934XX, Serial No's: 000251 and up and 000101 and up.

$0.99

$

In Stock, Qty 20+

0

31

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

Note: Used on Model 9934XX, Serial No's: 000251 and up and 000101 and up.

$0.99

$

In Stock, Qty 20+

0
