993401 (Pro-Chip 944) - Gravely Pro-Chip Chipper, 44hp Yanmar Diesel (SN: 000101 & Above) Hopper Parts Diagram

Pro-Chip Chipper, 44hp Yanmar Diesel

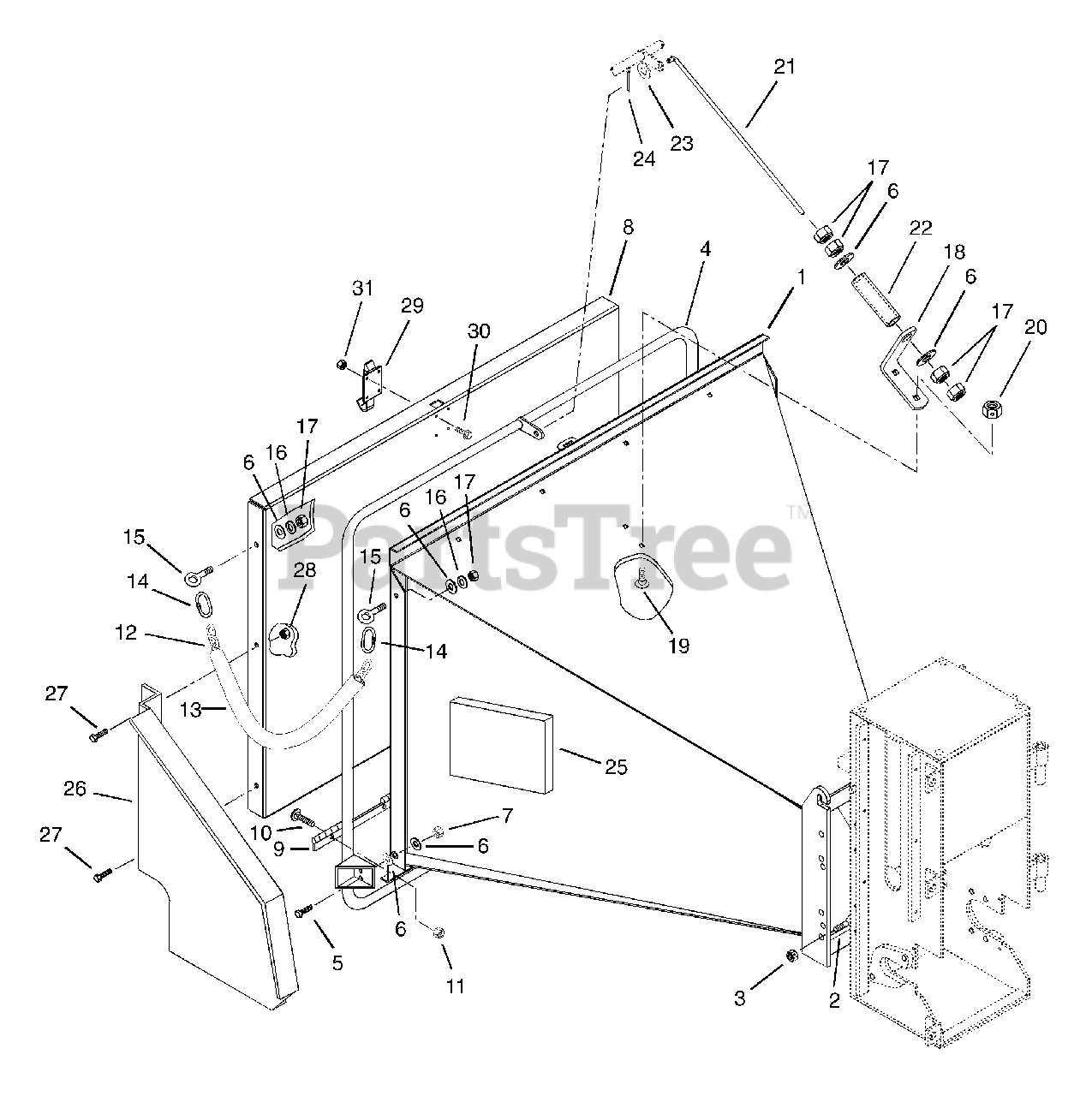

Hopper Parts Diagram

  • Title

1

Gravely 59316100

Hopper Weldment

Note: Used on Model 993403, Serial No's: 000101-000250.

$

$

Not available

1

Gravely 09352600

Hopper Weldment

Note: Used on Model 9934XX, Serial No's: 000251 and up and 000101 and up.

$517.99

$

Usually ships in 4-12 days

0

2

Gravely 06117200

Screw-Machine-Flat-Countersunk .50-13 x 1.25

$

$

Not available

3

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

4

Gravely 09340600

Bar-Feed Control Weldment

$1875.99

$

Usually ships in 4-12 days

0

5

Gravely 05958500

Bolt-Hex .38-16 x 1.75 Grade 5
(Superseded to 05901809)

$1.49

$

In Stock, only 3 left!

0

6

Gravely 06435900

Washer-Flat-Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

Usually ships in 4-12 days

0

7

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 59316200

Apron Weldment

Note: Used on Model 993403, Serial No's: 000101-000250.

$

$

Not available

8

Gravely 09352700

Apron Weldment

Note: Used on Model 9934XX, Serial No's: 000251 and up and 000101 and up.

$176.99

$

Usually ships in 4-12 days

0

9

Gravely 04125400

Hinge

$

$

Not available

10

Gravely 06220600

Bolt-Round Head Square Neck .25-20 x .50 Grade 5
(Superseded to 06200306)

$0.99

$

In Stock, Qty 7

0

11

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 04130600

Chain-1/4 inch x 28 Links Long

Note: Used on Model 993403, Serial No's: 000101-000250.

$17.99

$

Usually ships in 4-12 days

0

13

Gravely 04130700

Tubing-Vinyl

Note: Used on Model 993403, Serial No's: 000101-000250.

$

$

Not available

14

Gravely 09300300

Quick Link-Safety Type 5/16 inch

Note: Used on Model 993403, Serial No's: 000101-000250.

$

$

Not available

15

Gravely 04138200

Bolt-Eye .375 x 1.250

Note: Used on Model 993403, Serial No's: 000101-000250.

$

$

Not available

16

Gravely 06308800

Washer-Locking .38 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 17

0

17

Gravely 06529400

Nut-Hex .38-16
(Superseded to 06500917)

$0.99

$

Usually ships in 4-12 days

0

18

Gravely 09337700

Bracket-Valve Stop

$

$

Not available

19

Gravely 06215700

Bolt-Round Head Square Neck .31-18 x .75 Grade 5
(Superseded to 06200232)

$2.49

$

Usually ships in 4-12 days

0

20

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 09338300

Rod-Valve Stop

$

$

Not available

22

Gravely 00931900

Tubing-Urethane .438 x .688

$

$

Not available

23

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 11

0

24

Gravely 06707300

Pin-Cotter .12 x .75

$0.99

$

In Stock, Qty 9

0

25

Gravely 09347000

Box-Literature

$

$

Not available

26

Gravely 09352900

Side-Apron Right Hand

Note: Used on Model 9934XX, Serial No's: 000251 and up and 000101 and up.

$31.99

$

Usually ships in 4-12 days

0

26

Gravely 09353000

Side-Apron Left Hand

Note: Used on Model 9934XX, Serial No's: 000251 and up and 000101 and up.

$60.99

$

Usually ships in 4-12 days

0

27

Gravely 05967000

Bolt-Hex .38-16 x .50 Grade 5

Note: Used on Model 9934XX, Serial No's: 000251 and up and 000101 and up.

$3.49

$

Usually ships in 4-12 days

0

28

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

Note: Used on Model 9934XX, Serial No's: 000251 and up and 000101 and up.

$1.49

$

In Stock, Qty 20+

0

29

Gravely 04122900

Latch

Note: Used on Model 9934XX, Serial No's: 000251 and up and 000101 and up.

$

$

Not available

30

Gravely 06116700

Screw-Machine 10-24 x .50
(Superseded to 05901825)

Note: Used on Model 9934XX, Serial No's: 000251 and up and 000101 and up.

$0.99

$

In Stock, Qty 20+

0

31

Gravely 06536000

Nut-Locking-Nylon 10-24 w/Insert
(Superseded to 06500915)

Note: Used on Model 9934XX, Serial No's: 000251 and up and 000101 and up.

$0.99

$

In Stock, only 3 left!

0
