993401 (Pro-Chip 944) - Gravely Pro-Chip Chipper, 44hp Yanmar Diesel (SN: 000101 & Above) Hydraulic Control Valves Parts Diagram

Pro-Chip Chipper, 44hp Yanmar Diesel

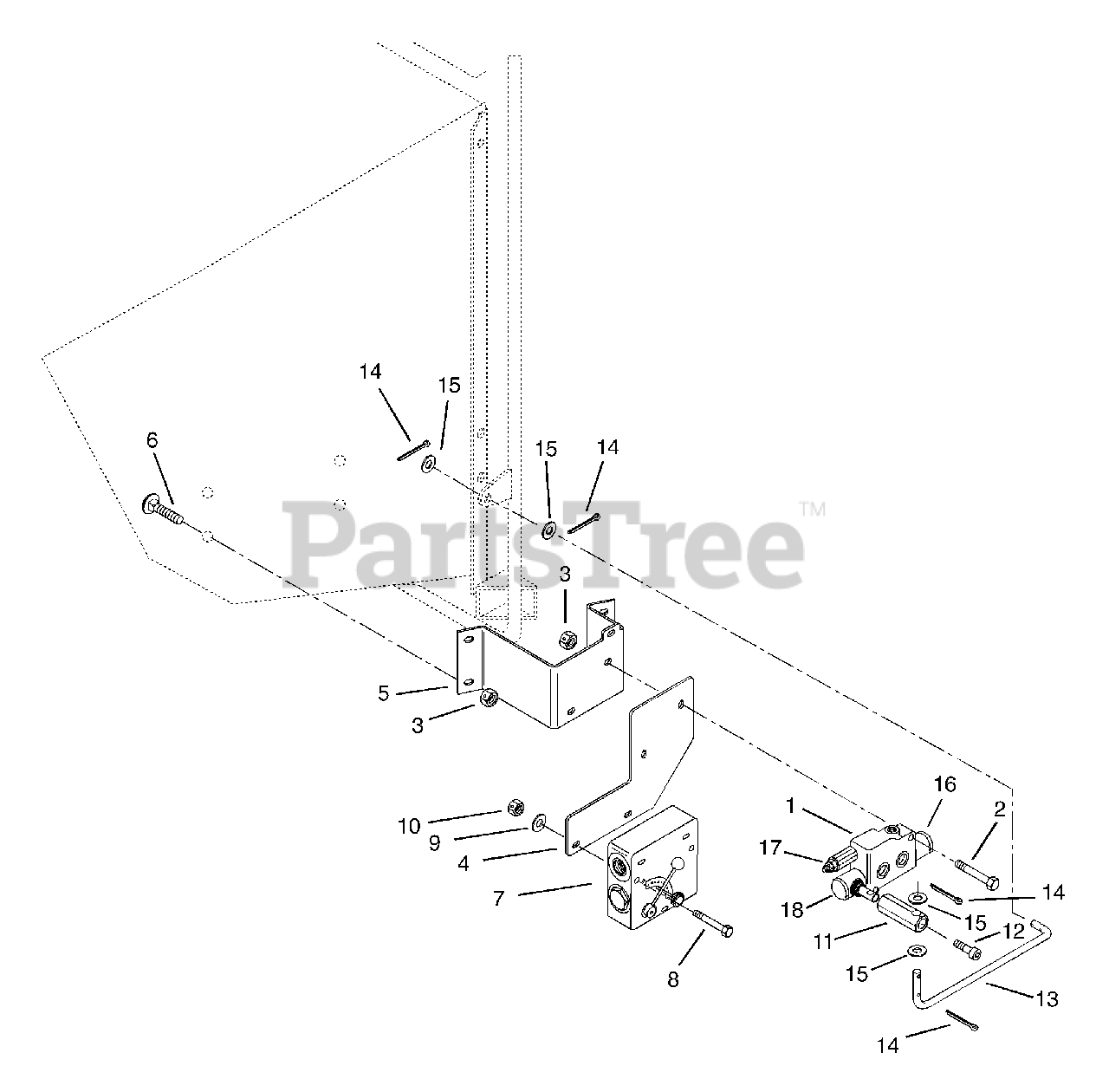

Hydraulic Control Valves Parts Diagram

  • Title

1

Gravely 09308800

Valve-Hydraulic

Note: (Includes Items 16-18)

$

$

Not available

2

Gravely 05952600

Bolt-Hex .31-18 x 2.50 Grade 5
(Superseded to 05901912)

$1.49

$

In Stock, only 4 left!

0

3

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 09312300

Bracket-Manual Feed

Note: (Option 8)

$

$

Not available

5

Gravely 09309700

Bracket-Valve Mount

$

$

Not available

6

Gravely 06215700

Bolt-Round Head Square Neck .31-18 x 1.00 Grade 5
(Superseded to 06200232)

$2.49

$

In Stock, Qty 8

0

7

Gravely 04126200

Valve-Hydraulic Flow Control

Note: (Option 8)

$

$

Not available

8

Gravely 05961600

Bolt-Hex .25-20 x 2.50 Grade 5

Note: (Option 8)

$2.49

$

In Stock, only 1 left!

0

9

Gravely 06435800

Washer-Flat-Steel .312 x .734 x .065
(Superseded to 06401124)

Note: (Option 8)

$0.99

$

In Stock, Qty 8

0

10

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

Note: (Option 8)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 09309600

Adapter-Hex

$

$

Not available

12

Gravely 05932500

Screw-Socket Head M8 x 1.25 x 20 mm

$

$

Not available

13

Gravely 09309800

Rod-Control Valve

Note: Used on Model 993403, Serial No's: 000101-000250.

$

$

Not available

13

Gravely 09352800

Rod-Control Valve

Note: Used on Model 9934XX, Serial No's: 000251 and up & 000101 and up.

$28.99

$

Usually ships in 4-12 days

0

14

Gravely 06707300

Pin-Cotter .12 x .75

$0.99

$

In Stock, Qty 9

0

15

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 09333900

Detent Assembly-Control Valve

$

$

Not available

17

Gravely 09334000

Relief Valve-Hydraulic Control Assembly

$

$

Not available

18

Gravely 09334100

Lever Assembly-Hydraulic Control Valve

$

$

Not available
