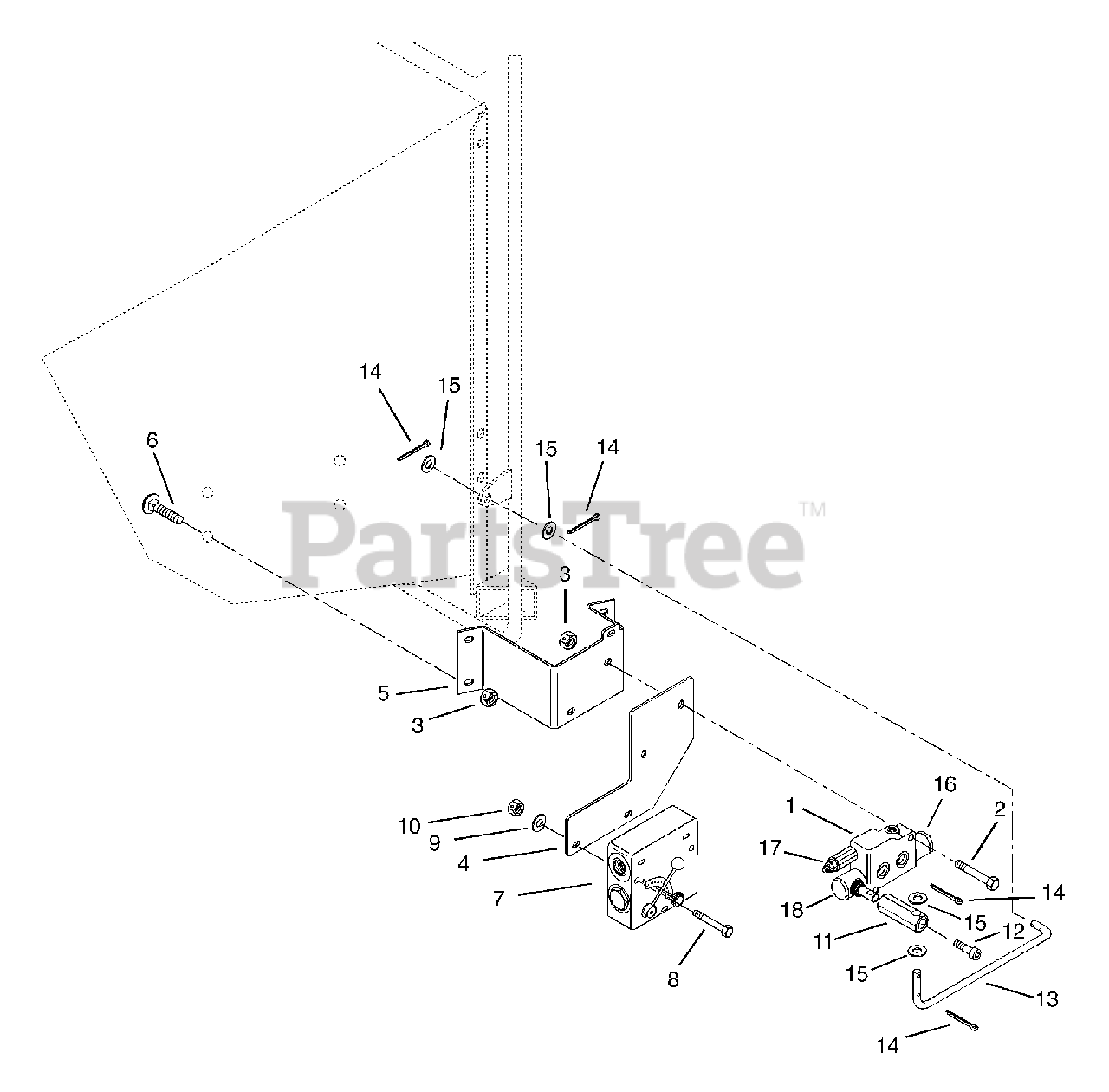

993401 (Pro-Chip 944) - Gravely Pro-Chip Chipper, 44hp Yanmar Diesel (SN: 000101 & Above) Hydraulic Control Valves Parts Diagram

Pro-Chip Chipper, 44hp Yanmar Diesel

Hydraulic Control Valves Parts Diagram

  • Title

1

Gravely 09308800

VALVE HYD. BLB INC.

Note: (Includes Items 16-18)

$

$

Not available

2

Gravely 05952600

BLT-HEX .31-18X2.50 GR5 YWZC
(Superseded to 05901912)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 09312300

BRACKET-MANUAL FEED

Note: (Option 8)

$

$

Not available

5

Gravely 09309700

VALVE MOUNT BRKT

$

$

Not available

6

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

7

Gravely 04126200

FLOW CONTROL VALVE HYD.

Note: (Option 8)

$

$

Not available

8

Gravely 05961600

BLT-HEX .25-20X2.50 GR5 YWZC

Note: (Option 8)

$2.99

$

Usually ships in 4-12 days

0

9

Gravely 06435800

WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

Note: (Option 8)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

Note: (Option 8)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 09309600

HEX ADAPTER

$

$

Not available

12

Gravely 05932500

SCR-SKH M8 X 1.25X20

$

$

Not available

13

Gravely 09309800

ROD-CONTROL VALVE

Note: Used on Model 993403, Serial No's: 000101-000250.

$

$

Not available

Gravely 09352800

ROD-CONTROL VALVE

Note: Used on Model 9934XX, Serial No's: 000251 and up & 000101 and up.

$28.99

$

Usually ships in 4-12 days

0

14

Gravely 06707300

PIN-CTR .12X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 6

0

15

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 09333900

DETENT ASSY-HYDRAULIC CNTRL V

$

$

Not available

17

Gravely 09334000

RELIEF VALVE ASSY-HYD CNTRL V

$

$

Not available

18

Gravely 09334100

LEVER ASSY-HYDRAULIC CNTRL V

$

$

Not available
