993401 (Pro-Chip 944) - Gravely Pro-Chip Chipper, 44hp Yanmar Diesel (SN: 000101 & Above) Hydraulic Pump, Tank And Filter Parts Diagram

Pro-Chip Chipper, 44hp Yanmar Diesel

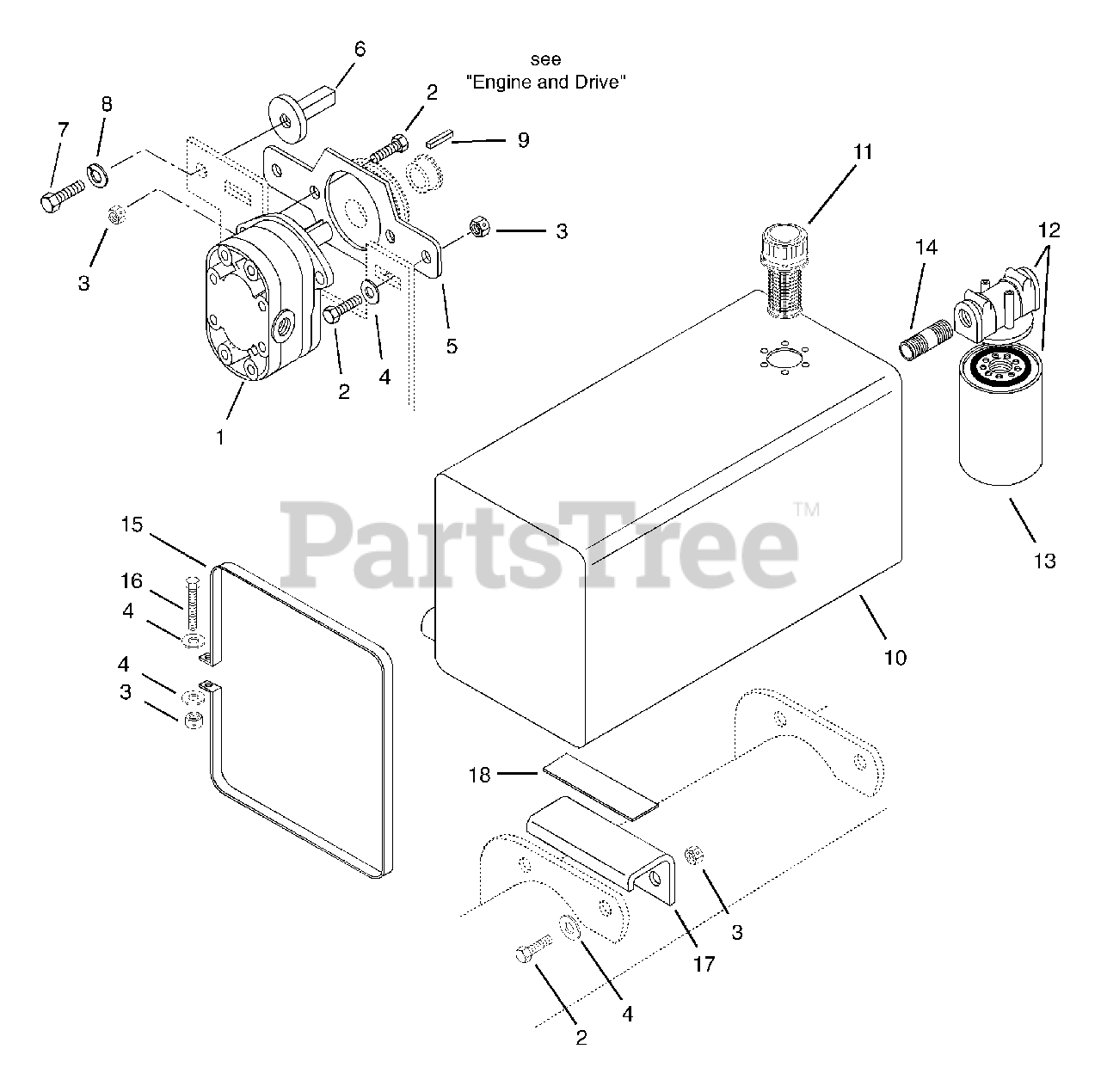

Hydraulic Pump, Tank And Filter Parts Diagram

  • Title

1

Gravely 04124900

PUMP-HYDRAULIC

$

$

Not available

2

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 18

0

3

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 04123851

HYDRAULIC PUMP BRACKET

$6.99

$

Usually ships in 4-12 days

0

6

Gravely 04122500

ADUSTMENT CAM WELDMENT

$

$

Not available

7

Gravely 05959700

BLT-HEX .50-13X2.00 GR5 YWZC
(Superseded to 05901929)

$3.49

$

In Stock, only 2 left!

0

8

Gravely 06307300

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06606700

KEY-SQ .250 X .375 X 1.25

$

$

Not available

10

Gravely 04122250

HYDRAULIC TANK WELDMENT

$

$

Not available

11

Gravely 04105800

FILLER CAP ASSEMBLY

$

$

Not available

12

Gravely 04108000

FILTER PARKER 307690 12ATIOC

Note: (Includes Item 13)

$

$

Not available

13

Gravely 04108100

REPLACEMENT ELEMENT

$51.99

$

Usually ships in 4-12 days

0

14

Gravely 04133400

STANDARD PIPE NIPPLE

$

$

Not available

15

Gravely 04140051

TANK STRAPS

$

$

Not available

16

Gravely 05958300

BLT-HEX .38-16X3.00 GR5 FTH YZ
(Superseded to 05901815)

$3.49

$

In Stock, Qty 20+

0

17

Gravely 04140151

TANK MOUNT

$

$

Not available

18

Gravely 00916400

GASKET-FOAM W/ADHESIVE BACK
(Superseded to 02072000)

$

$

Not available
