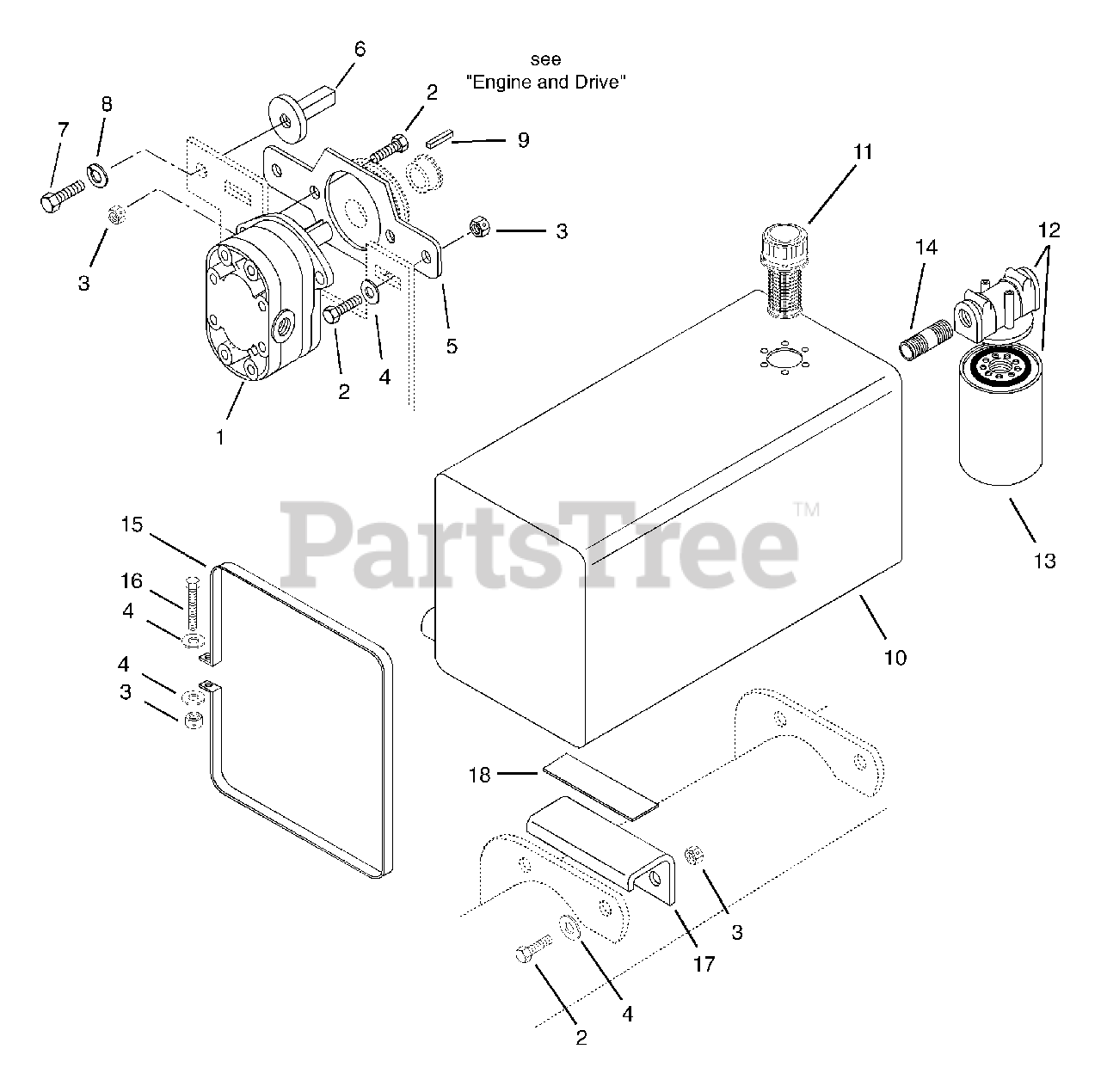

993401 (Pro-Chip 944) - Gravely Pro-Chip Chipper, 44hp Yanmar Diesel (SN: 000101 & Above) Hydraulic Pump, Tank And Filter Parts Diagram

Pro-Chip Chipper, 44hp Yanmar Diesel

Hydraulic Pump, Tank And Filter Parts Diagram

  • Title

1

Gravely 04124900

Pump-Hydraulic

$

$

Not available

2

Gravely 05958000

Bolt-Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 10

0

3

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06435900

Washer-Flat-Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

In Stock, only 4 left!

0

5

Gravely 04123851

Bracket-Hydraulic Pump

$6.99

$

Usually ships in 4-12 days

0

6

Gravely 04122500

Adjustment Cam Weldment

$

$

Not available

7

Gravely 05959700

Bolt-Hex .50-13 x 2.00 Grade 5
(Superseded to 05901929)

$3.49

$

Usually ships in 4-12 days

0

8

Gravely 06307300

Washer-Locking .50 x .125
(Superseded to 06300115)

$1.49

$

In Stock, Qty 18

0

9

Gravely 06606700

Key-Square .250 x .375 x 1.25

$

$

Not available

10

Gravely 04122250

Hydraulic Tank Weldment

$

$

Not available

11

Gravely 04105800

Filler Cap Assembly

$

$

Not available

12

Gravely 04108000

Filter

Note: (Includes Item 13)

$

$

Not available

13

Gravely 04108100

Replacement Filter Element

$50.99

$

Usually ships in 4-12 days

0

14

Gravely 04133400

Nipple-Standard Pipe

$

$

Not available

15

Gravely 04140051

Strap-Hydraulic Tank

$

$

Not available

16

Gravely 05958300

Bolt Hex .38-16 x 3.00 Grade 5
(Superseded to 05901815)

$3.49

$

In Stock, only 1 left!

0

17

Gravely 04140151

Mount-Tank

$

$

Not available

18

Gravely 00916400

Gasket
(Superseded to 02072000)

$

$

Not available
