993401 (Pro-Chip 944) - Gravely Pro-Chip Chipper, 44hp Yanmar Diesel (SN: 000101 & Above) Trailer Frame Parts Diagram

Pro-Chip Chipper, 44hp Yanmar Diesel

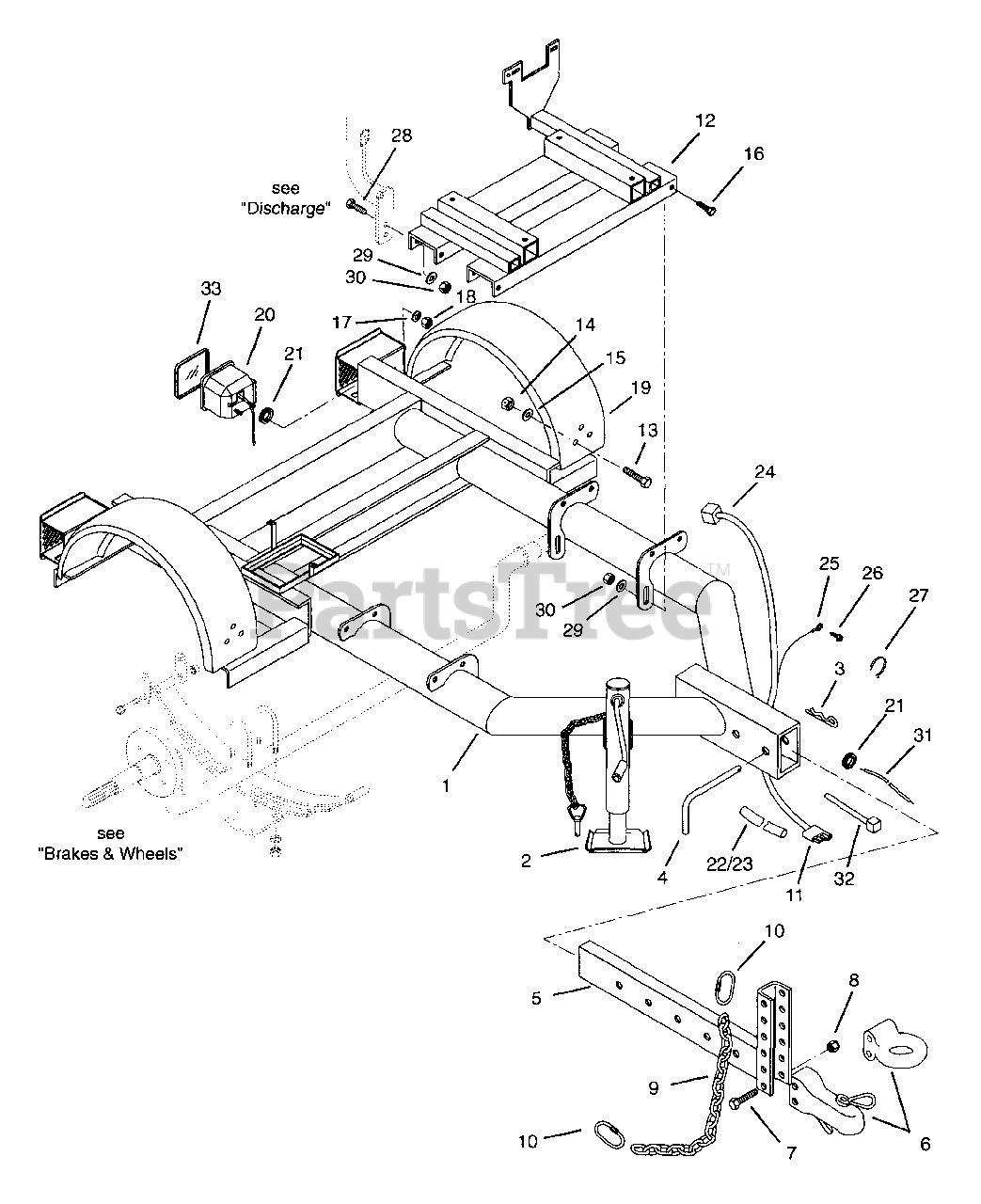

Trailer Frame Parts Diagram

  • Title

1

Gravely 04120700

Frame-Trailer Weldment

$

$

Not available

2

Gravely 04124600

Jack

$

$

Not available

3

Gravely 06714000

Pin-Hair-Internal .15 x 2.937

$2.99

$

In Stock, Qty 9

0

4

Gravely 04125100

Pin-Hitch

$

$

Not available

5

Gravely 04123551

Tongue

$45.99

$

Usually ships in 4-12 days

0

6

Gravely 04133951

Hitch-Ball 2 inch

Note: (Option 7)

$323.99

$

Usually ships in 4-12 days

0

6

Gravely 04124751

Hitch-Ring

Note: (Option 6)

$

$

Not available

7

Gravely 05962400

Bolt-Hex .62-11 x 4.25 Grade 5

$

$

Not available

8

Gravely 06535300

Nut-Locking-Center .62-11

$2.99

$

In Stock, only 1 left!

0

9

Gravely 04004300

Chain-Safety - 4 ft long

$

$

Not available

10

Gravely 09300300

Quick Link-Safety Type 5/16 inch

$

$

Not available

11

Gravely 04117200

Harness-Wire

Note: (Items 22-25 Needed to Complete Harness)

$

$

Not available

12

Gravely 04136300

Cross brace-Engine

$

$

Not available

13

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 10

0

14

Gravely 06529800

Nut Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06435700

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 05959700

Bolt-Hex .50-13 x 2.00 Grade 5
(Superseded to 05901929)

$3.49

$

Usually ships in 4-12 days

0

17

Gravely 06306800

Washer-Locking-External .262 x .502 x .026
(Superseded to 06300118)

$0.99

$

In Stock, only 2 left!

0

18

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 09308050

Fender-Trailer

$

$

Not available

20

Gravely 04116300

Light-Tail-Left Hand

$

$

Not available

20

Gravely 04116400

Light-Tail-Right Hand

$

$

Not available

21

Gravely 07518500

Grommet

Note: (Option 4)

$

$

Not available

21

Gravely 07518500

Grommet

Note: (Option 5)

$

$

Not available

22

Gravely 04133800

Wire Covering

$

$

Not available

23

Gravely 00903500

Electrical Tape

$

$

Not available

24

Gravely 04117300

Connector

$

$

Not available

25

Gravely 04132900

Ring Tongue Connector

$

$

Not available

26

04741560

Screw-Tapping-Hex Washer Head 8-32 x .50

$

$

Not available

27

Gravely 04003800

Tie Wrap

$

$

Not available

28

Gravely 05961000

Bolt-Hex .50-13 x 2.25 Grade 5
(Superseded to 05901835)

$3.49

$

In Stock, Qty 9

0

29

Gravely 06442000

Washer-Flat-Steel .563 x 1.38 x .109
(Superseded to 06401012)

$3.49

$

In Stock, Qty 15

0

30

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

31

Gravely 04105900

Wire

Note: (Option 5)

$

$

Not available

32

Gravely 04153000

Plug

Note: (Option 5)

$

$

Not available

33

Gravely 09310000

Lens-Tail Light

$

$

Not available
