993401 (Pro-Chip 944) - Gravely Pro-Chip Chipper, 44hp Yanmar Diesel (SN: 000101 & Above) Trailer Frame Parts Diagram

Pro-Chip Chipper, 44hp Yanmar Diesel

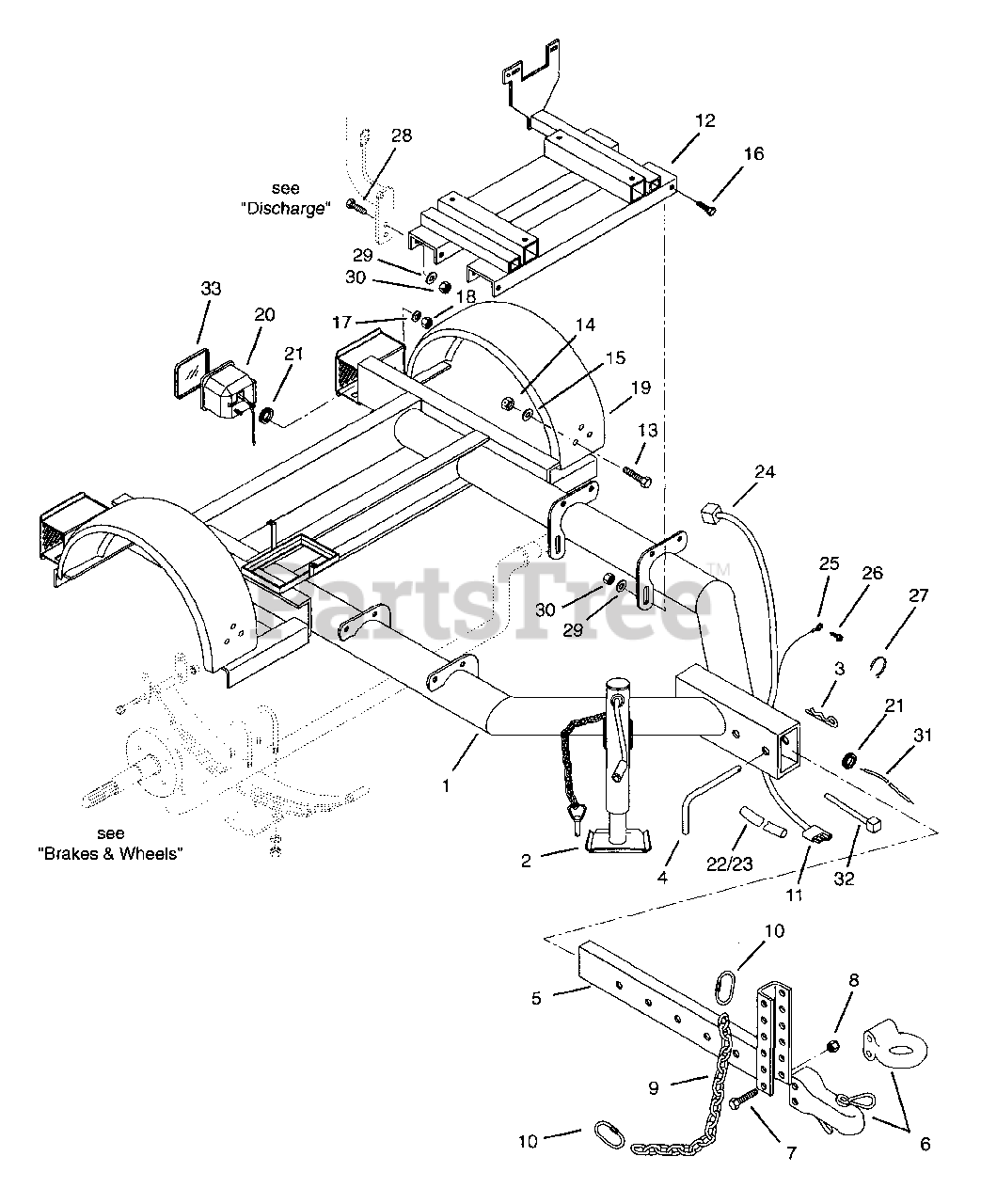

Trailer Frame Parts Diagram

  • Title

1

Gravely 04120700

FRAME, TRAILER

$

$

Not available

2

Gravely 04124600

JACK

$

$

Not available

3

Gravely 06714000

PIN-HAIR-INT .15X2.937 YWZC

$3.49

$

In Stock, only 1 left!

0

4

Gravely 04125100

HITCH PIN

$

$

Not available

5

Gravely 04123551

TONGUE WELDMENT

$45.99

$

Usually ships in 4-12 days

0

6

Gravely 04133951

2" BALL HITCH

Note: (Option 7)

$323.99

$

Usually ships in 4-12 days

0

Gravely 04124751

HITCH-RING

Note: (Option 6)

$

$

Not available

7

Gravely 05962400

BLT-HEX .62-11X4.25 GR5 YWZC

$

$

Not available

8

Gravely 06535300

NUT-LK-CTR .62-11 YWZC

$2.99

$

In Stock, only 2 left!

0

9

Gravely 04004300

SAFETY CHAIN 4 FT. LONG

$

$

Not available

10

Gravely 09300300

QUICK LINK 5/16" SAFETY TYPE

$

$

Not available

11

Gravely 04117200

WIRE HARNESS

Note: (Items 22-25 Needed to Complete Harness)

$

$

Not available

12

Gravely 04136300

ENGINE CROSSBRACE WELD -DIESEL

$

$

Not available

13

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 05959700

BLT-HEX .50-13X2.00 GR5 YWZC
(Superseded to 05901929)

$3.49

$

In Stock, only 2 left!

0

17

Gravely 06306800

WSHR-LK-EXT.262X.502X.026YWZC
(Superseded to 06300118)

$0.99

$

In Stock, only 3 left!

0

18

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 09308050

FENDER, TRAILER

$

$

Not available

20

Gravely 04116300

TAIL LIGHT LH

$

$

Not available

Gravely 04116400

TAIL LIGHT RH

$

$

Not available

21

Gravely 07518500

GROMMETS

Note: (Option 4)

$

$

Not available

Gravely 07518500

GROMMETS

Note: (Option 5)

$

$

Not available

22

Gravely 04133800

WIRE COVERING - 3/8 ID BLACK

$

$

Not available

23

Gravely 00903500

ELECTRICAL TAPE

$

$

Not available

24

Gravely 04117300

P-CONNECTOR

$

$

Not available

25

Gravely 04132900

RING TONGUE CONNECTOR

$

$

Not available

26

Gravely 07415600

SCR-TAP 8-32X.50 HWH TR YWZC

$2.49

$

Usually ships in 4-12 days

0

27

Gravely 04003800

TIE WRAP

$

$

Not available

28

Gravely 05961000

BLT-HEX .50-13X2.25 GR5 YWZC
(Superseded to 05901835)

$3.99

$

In Stock, only 1 left!

0

29

Gravely 06442000

WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.99

$

In Stock, Qty 20+

0

30

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 18

0

31

Gravely 04105900

WIRE 14GA RED

Note: (Option 5)

$

$

Not available

32

Gravely 04153000

PLUG CONNECTOR - TRAILER

Note: (Option 5)

$

$

Not available

33

Gravely 09310000

LENS, TAIL LIGHT

$

$

Not available
