993401 (Pro-Chip 944) - Gravely Pro-Chip Chipper, 44hp Yanmar Diesel (SN: 000101 & Above) Wheels And Brakes Parts Diagram

Pro-Chip Chipper, 44hp Yanmar Diesel

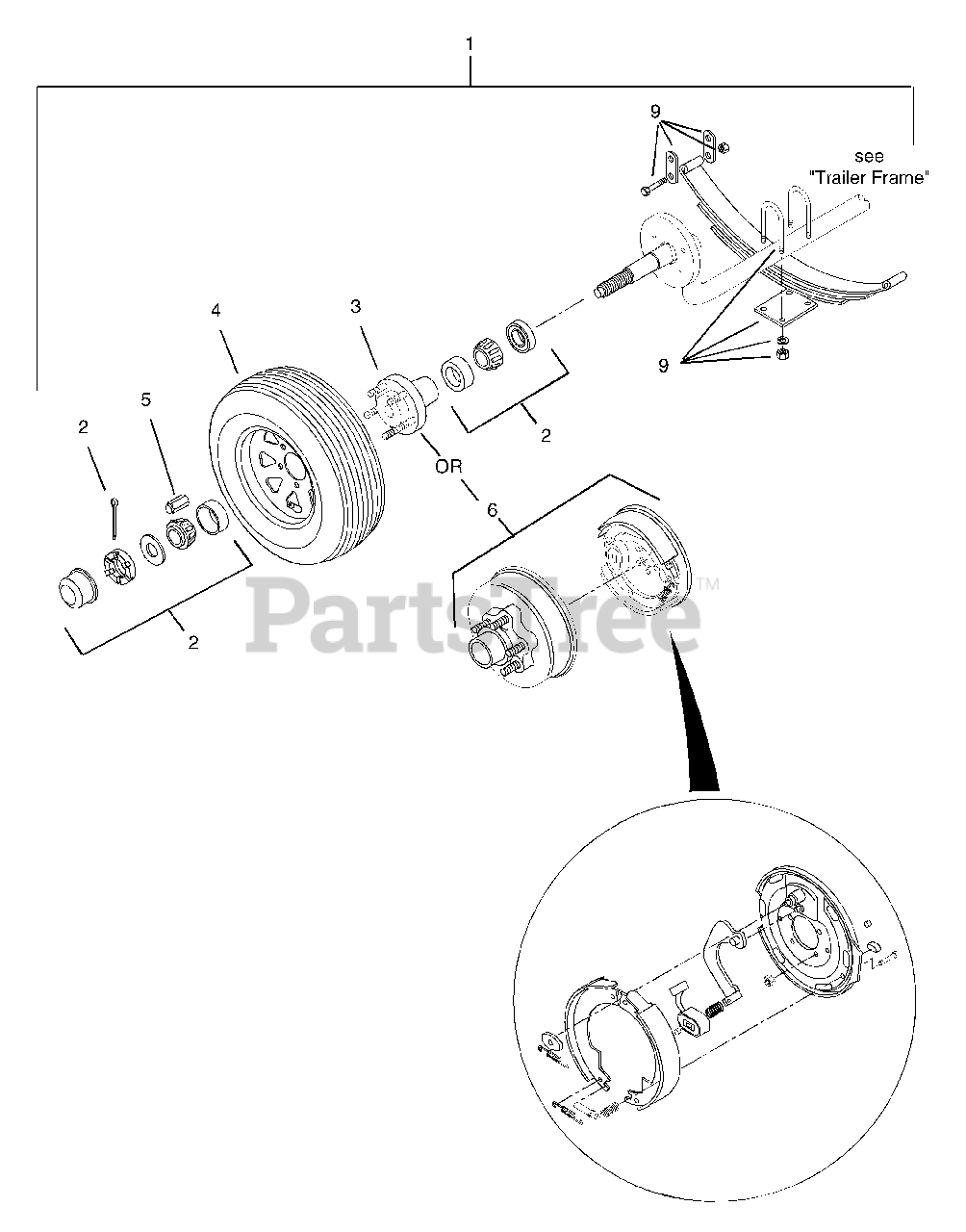

Wheels And Brakes Parts Diagram

  • Title

1

Gravely 09330800

AXLE-TRAILER (IDLER)

Note: (Contains Items 2-9, except 4 & 6); (Option 4)

$1314.99

$

Usually ships in 4-12 days

0

Gravely 09330900

AXLE-TRAILER (ELECTRIC BRAKE)

Note: (Contains Items 2-9, except 3 & 4); (Option 5)

$

$

Not available

2

Gravely 59300700

BEARING KIT,AXLE

$

$

Not available

3

Gravely 09306100

HUB-IDLER AXLE

Note: (Option 4)

$

$

Not available

4

Gravely 07126300

T/WHL ASSY

$

$

Not available

5

Gravely 06535000

NUT-LUG .50-20 YWZC
(Superseded to 06517600)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 09306300

HUB/DRUM KIT,ELEC AXLE

Note: (Option 5)

$

$

Not available

7

Gravely 09306200

SPRING-AXLE

$

$

Not available

8

Gravely 59300900

HARDWARE KIT 3500# AXLE STD

$

$

Not available

9

Gravely 59301000

U-BOLT KIT 3500# AXLE STD

$

$

Not available
