993501 - Gravely Pro-Chip Chipper, Perkins Diesel (SN: 000101 & Above) Belts And Idler Parts Diagram

Pro-Chip Chipper, Perkins Diesel

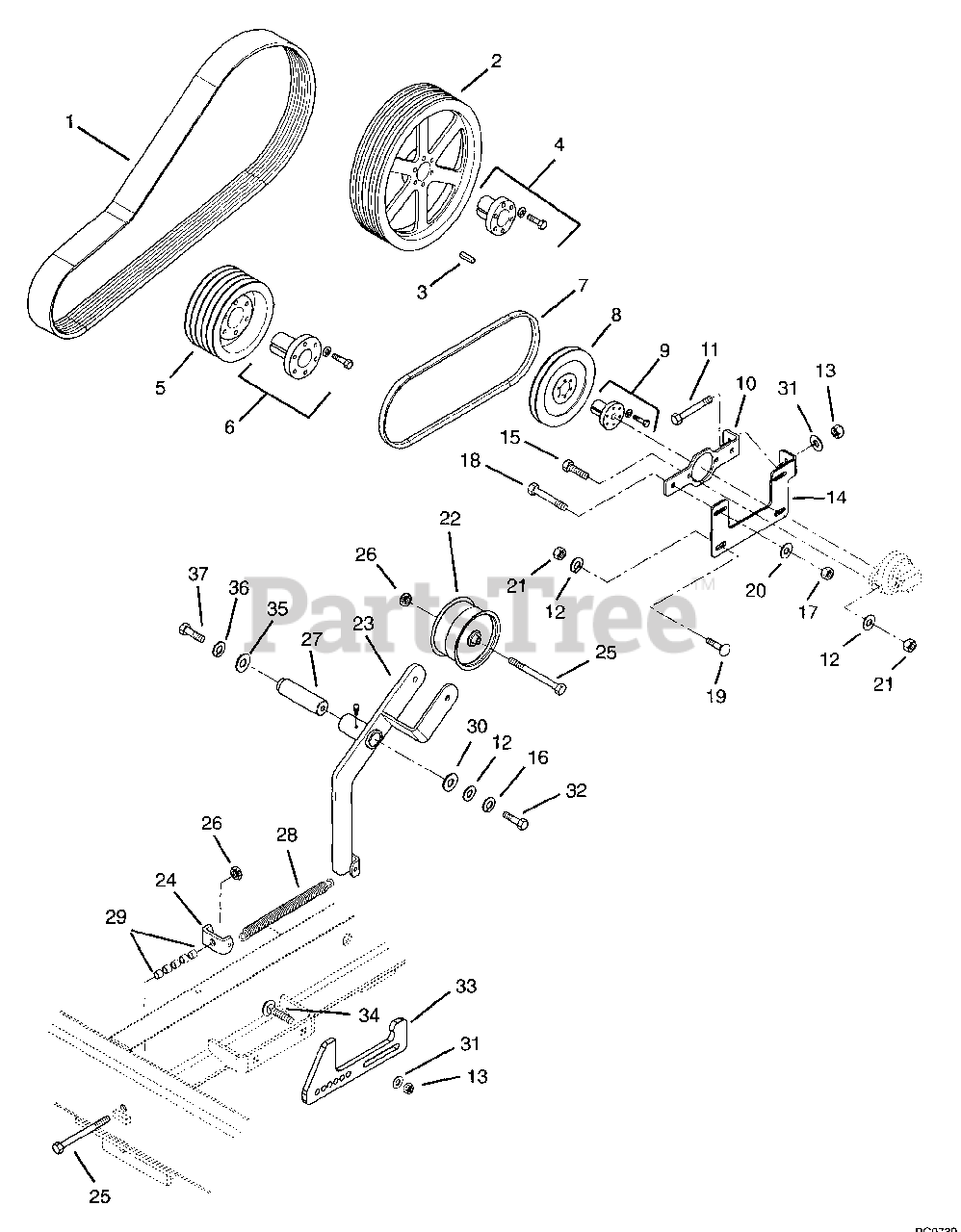

Belts And Idler Parts Diagram

  • Title

1

Gravely 07234100

V BELT-4 GROOVE BANDED ASAE HB

$

$

Not available

2

Gravely 07322100

PULLEY DRIVEN 16 IN

$

$

Not available

3

Gravely 06606400

KEY-STR .50X.50X1.75

$

$

Not available

4

Gravely 07322400

BUSHING - SHEAVE

$

$

Not available

5

Gravely 07322200

DRIVE SHEAVE

$

$

Not available

6

Gravely 07322400

BUSHING - SHEAVE

Note: (99 HP-Option 2 or 108 HP-Option 3)

$

$

Not available

Gravely 07323200

BUSHING-2.250 BORE W/.625 KEY

Note: (81 HP-Option 1)

$96.99

$

Usually ships in 4-12 days

0

7

Gravely 07233400

V-BLT(1)5L-RMA 57.96X.656 BP55

$

$

Not available

8

Gravely 07322600

PUMP SHEAVE

$

$

Not available

9

Gravely 07322500

BUSHING - SHEAVE

$

$

Not available

10

Gravely 09317500

HYD PUMP BRACKET

$

$

Not available

11

Gravely 05958300

BLT-HEX .38-16X3.00 GR5 FTH YZ
(Superseded to 05901815)

$3.49

$

In Stock, Qty 20+

0

12

Gravely 06441000

WSHR-FL-STL.50X1.25X.083 YWZC
(Superseded to 06401202)

$3.49

$

In Stock, Qty 9

0

13

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 09317600

HYD PUMP MOUNT BRKT

$

$

Not available

15

Gravely 05963800

BLT-HEX .44-14X1.25 GR5 YWZC

$2.99

$

In Stock, only 1 left!

0

16

Gravely 06309300

WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 20+

0

17

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 18

0

18

Gravely 05959900

BLT-HEX .50-13X3.00 GR5 YWZC
(Superseded to 05901737)

$5.49

$

In Stock, Qty 14

0

19

Gravely 06219300

BLT-RDHDSQNK .44-14X1.50 G2YZ
(Superseded to 06224500)

$3.99

$

Usually ships in 4-12 days

0

20

Gravely 06442000

WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.99

$

In Stock, Qty 20+

0

21

Gravely 06536400

NUT-LK-CTR .44-14 YWZC
(Superseded to 06500930)

$3.49

$

In Stock, only 4 left!

0

22

Gravely 07322300

PULLY IDLER

$

$

Not available

23

Gravely 09315300

IDLER ARM WELD
(Superseded to 09355200)

$

$

Not available

24

Gravely 09315351

SPRING BRACKET

$

$

Not available

25

Gravely 05961800

BLT-HEX .50-13X6.00 GR5 YWZC

$

$

Not available

26

Gravely 06528200

NUT-LK-CONE .50-13 GR C YWZC

$3.99

$

In Stock, Qty 5

0

27

Gravely 09344400

SHAFT-IDLER ARM PIVOT

$

$

Not available

28

Gravely 039364

SG-TENS .156X1.062X8.68 WLD ??
(Superseded to 08310700)

$

$

Not available

29

Gravely 00229400

SPACER .76 X .51 X .56

$19.99

$

Usually ships in 4-12 days

0

30

Gravely 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$3.49

$

In Stock, Qty 20+

0

31

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

32

Gravely 05962800

BLT-HEX .44-14X1.50 GR5 YWZC
(Superseded to 05901633)

$3.49

$

In Stock, Qty 6

0

33

Gravely 09344900

STOP-IDLER ARM

$

$

Not available

34

Gravely 06221400

BLT-RDHDSQNK .38-16X1.25 G2YZ
(Superseded to 06224100)

$2.99

$

In Stock, Qty 20+

0

35

Gravely 06439800

WSHR-FL-STL.812X2.00X.148YWZC
(Superseded to 06401201)

$4.99

$

In Stock, Qty 10

0

36

Gravely 06310300

WSHR-LK .75X.188 REG YWZC

$1.99

$

In Stock, Qty 13

0

37

Gravely 05959600

BLT-HEX .75-10X1.50 GR5 YWZC

$3.99

$

Usually ships in 4-12 days

0
