993501 - Gravely Pro-Chip Chipper, Perkins Diesel (SN: 000101 & Above) Clutch - Auto (Option 11, 12 & 13) Parts Diagram

Pro-Chip Chipper, Perkins Diesel

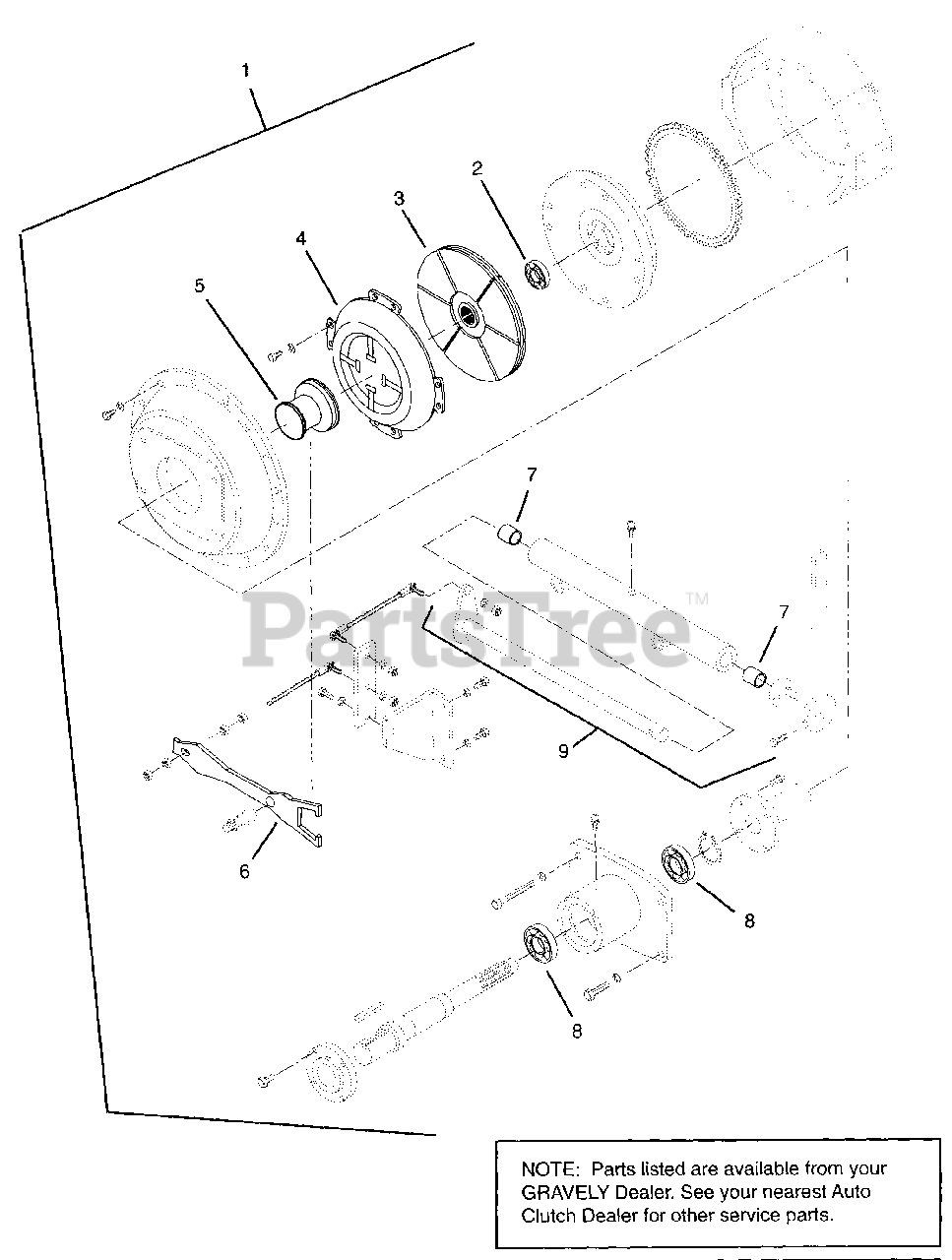

Clutch - Auto (Option 11, 12 & 13) Parts Diagram

  • Title

1

Gravely 09347600

CLUTCH ASSY-AUTOCLUTCH,PERK

Note: (Contains Items 2-9) (Options 11 & 12)

$

$

Not available

Gravely 09351200

CLUTCH ASSY-AUTOCLUTCH,JD

Note: (Option 13) (Contains 2-9)

$

$

Not available

2

Gravely 59312800

BEARING-PILOT,PERKINS

Note: (Options 11 & 12)

$

$

Not available

Gravely 59312900

BEARING-PILOT,JOHN DEERE

Note: (Option 13)

$

$

Not available

3

Gravely 59313000

DISK-CLUTCH

$

$

Not available

4

Gravely 59313200

PLATE-PRESSURE,CLUTCH

$

$

Not available

5

Gravely 59313100

BEARING-THROW OUT

$

$

Not available

6

Gravely 59313300

FORK

$

$

Not available

7

Gravely 59313400

BUSHING-SHAFT

$

$

Not available

8

Gravely 59313500

BEARING-PTO

$

$

Not available

9

Gravely 59316000

SHAFT-CLUTCH RELEASE ASSY (XL)

$

$

Not available
