993501 - Gravely Pro-Chip Chipper, Perkins Diesel (SN: 000101 & Above) Engine (Options 10-12) Parts Diagram

Pro-Chip Chipper, Perkins Diesel

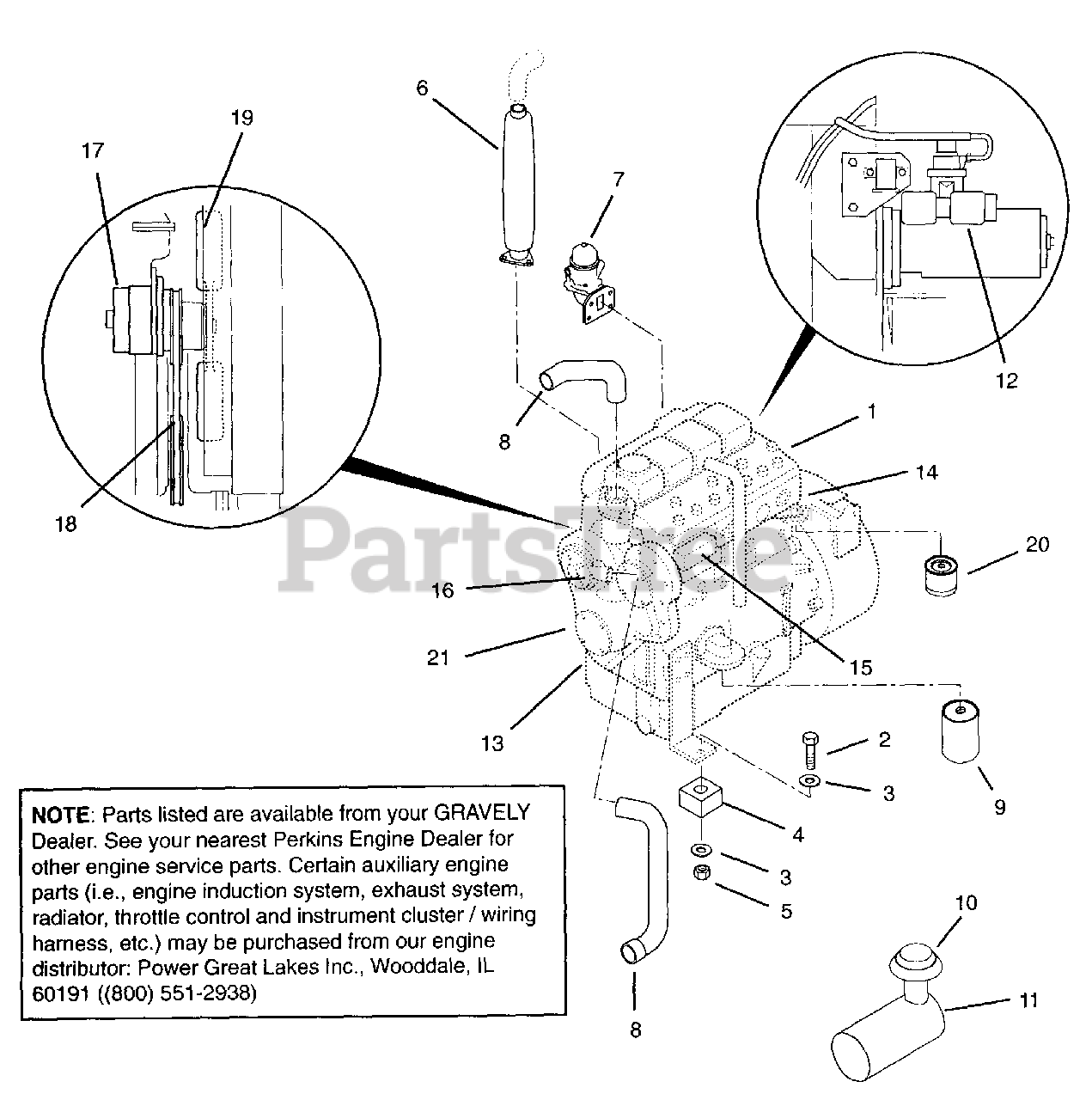

Engine (Options 10-12) Parts Diagram

  • Title

1

Gravely 08257100

Engine-Perkins AR70427 86 HP Diesel

Note: (Option 10)

$

$

Not available

1

Gravely 08257500

Engine-Perkins AR70428 86 HP Diesel

Note: (Option 11)

$

$

Not available

1

Gravely 08257200

Engine-Perkins AK70453 110 HP Diesel

Note: (Option 12)

$

$

Not available

2

Gravely 05961700

Bolt-Hex .75-10 x 3.00 Grade 5

$3.49

$

Usually ships in 4-12 days

0

3

Gravely 06439800

Washer-Flat-Steel .813 x 2.000 x .148
(Superseded to 06401201)

$3.99

$

Usually ships in 4-12 days

0

4

Gravely 09325000

Engine Base Spacer

$5.99

$

Usually ships in 4-12 days

0

4

Gravely 09351000

Engine Base Spacer

$

$

Not available

5

Gravely 06535400

Nut-Locking-Center .75-10

$5.99

$

Usually ships in 4-12 days

0

6

Gravely 59312000

Muffler

Note: (Option 10 & 11)

$

$

Not available

6

Gravely 59312500

Muffler

Note: (Option 12)

$

$

Not available

7

Gravely 59308400

Pump-Lift

$

$

Not available

8

Gravely 59311800

Hose-Radiator-Top & Bottom

$

$

Not available

9

Gravely 59307700

Filter-Oil

$

$

Not available

9

Gravely 59312300

Filter Oil

Note: (Option 12)

$

$

Not available

10

Gravely 59307800

Filter-Air-Primary

$

$

Not available

11

Gravely 59307900

Filter-Air-Secondary

$

$

Not available

12

Gravely 59309600

Starter

$

$

Not available

13

Gravely 59312200

Gasket Set-Bottom

Note: (Option 10 & 11)

$

$

Not available

13

Gravely 59312700

Gasket Set Bottom

Note: (Option 12)

$

$

Not available

14

Gravely 59312100

Gasket Set-Top

Note: (Option 10 & 11)

$

$

Not available

14

Gravely 59312600

Gasket Set-Top

Note: (Option 12)

$

$

Not available

15

Gravely 59311600

Pump-Injection

Note: (Option 10 & 11)

$

$

Not available

15

Gravely 59308200

Pump-Injection

Note: (Option 12)

$

$

Not available

16

Gravely 59311500

Pump-Water

$

$

Not available

17

Gravely 59309700

Alternator

$

$

Not available

18

Gravely 59311900

Belt

$

$

Not available

19

Gravely 59311700

Fan

Note: (Option 10 & 11)

$

$

Not available

19

Gravely 59312400

Fan

Note: (Option 12)

$

$

Not available

20

Gravely 59311400

Element-Fuel Filter

$

$

Not available

21

Gravely 59309100

Pump-Oil

$

$

Not available
