993510 - Gravely Pro-Chip 12" Chipper, Perkins Diesel (SN: 000101 & Above) Brakes Parts Diagram

Pro-Chip 12" Chipper, Perkins Diesel

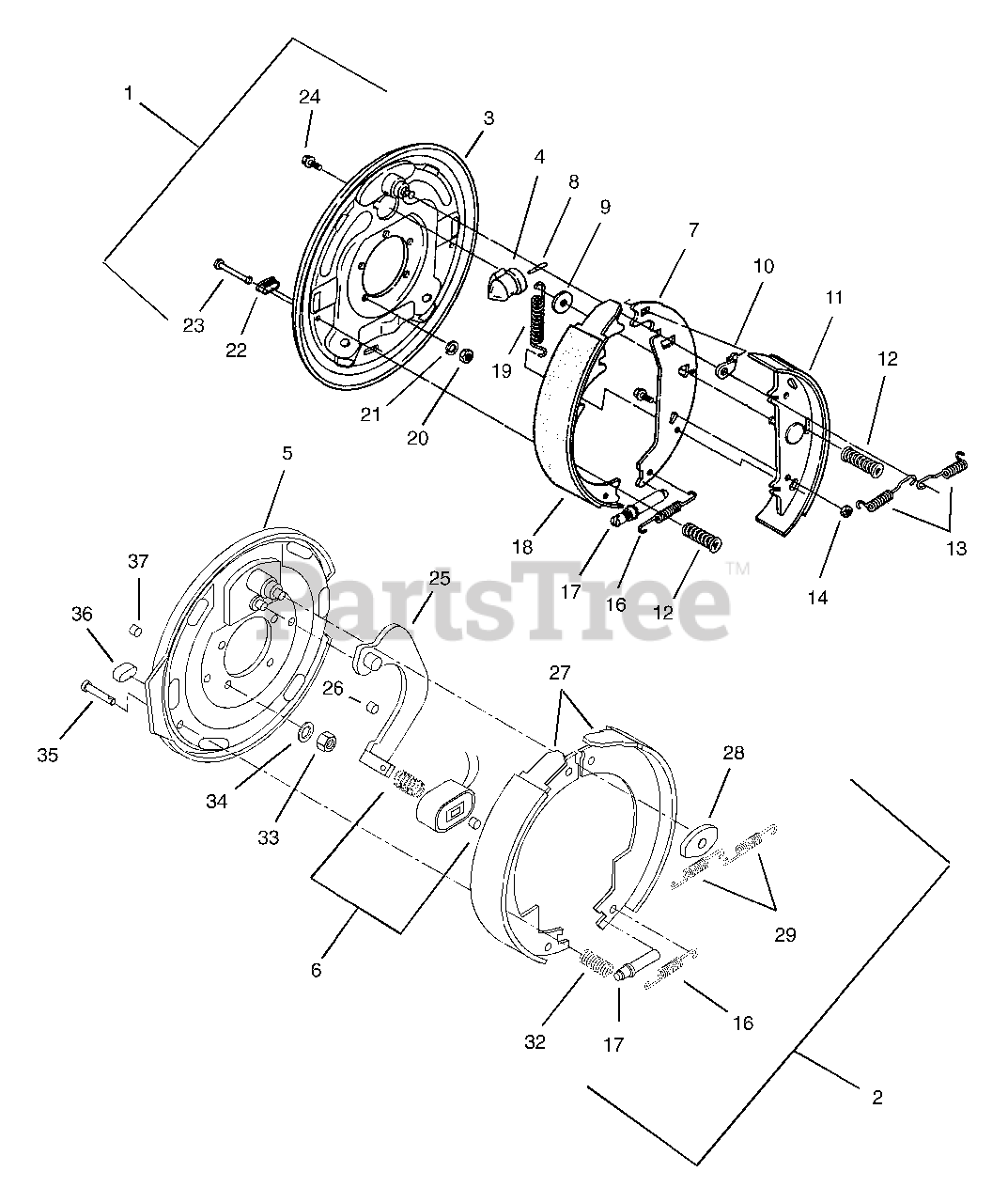

Brakes Parts Diagram

  • Title

1

Gravely 59302300

LH BRAKE ASSEMBLY,HYD

Note: (Contains Items 3,4,7-24); (Option 5)

$

$

Not available

Gravely 59302400

RH BRAKE ASSEMBLY,HYD

Note: (Contains Items 3,4,7-24); (Option 5)

$

$

Not available

2

Gravely 59306000

LH BRAKE ASSY-ELEC

Note: (Contains Items 5,6,16,17,25-37); (Option 4)

$

$

Not available

Gravely 59306100

RH BRAKE ASSY-ELEC

Note: (Contains Items 5,6,16,17,25-37); (Option 4)

$

$

Not available

3

Gravely 59302500

BACKING PLATE ASSEMBLY,HYD

Note: (Option 5)

$

$

Not available

4

Gravely 59302600

LH BRAKE CYLINDER KIT (HYD)

Note: (Option 5)

$

$

Not available

Gravely 59302700

RH BRAKE CYLINDER KIT (HYD)

Note: (Option 5)

$

$

Not available

5

Gravely 59306200

BACKING PLATE ASSY-ELEC

Note: (Option 4)

$

$

Not available

6

Gravely 59310800

KIT-MAGNET

Note: (Option 4)

$

$

Not available

7

Gravely 59303900

SHOE LEVER,HYD

Note: (Option 5)

$

$

Not available

Gravely 59302900

BRAKE SHOE & LINING KIT-LH,HYD

Note: (Contains Items 11,12,18,23); (Option 5)

$

$

Not available

Gravely 59303000

BRAKE SHOE AND LINING KIT-RH

Note: (Contains Items 11,12,18,23); (Option 5)

$

$

Not available

Gravely 59306300

LH/RH BRAKE SHOE & LINING KT-E

Note: (Contains Items 27,32,35); (Option 4)

$

$

Not available

Gravely 59303100

BRAKE SPRING KIT,HYD

Note: (Contains Items 12,13,16,19); (Option 5)

$

$

Not available

Gravely 59302800

ADJUSTING SCREW AND SPRING KIT

Note: (Contains Items 16,17); (Options 4 & 5)

$

$

Not available

8

UNKNOWN

$

$

Not available

9

UNKNOWN

$

$

Not available

10

UNKNOWN

$

$

Not available

11

UNKNOWN

$

$

Not available

12

UNKNOWN

$

$

Not available

13

UNKNOWN

$

$

Not available

14

UNKNOWN

$

$

Not available

16

UNKNOWN

$

$

Not available

17

UNKNOWN

$

$

Not available

18

UNKNOWN

$

$

Not available

19

UNKNOWN

$

$

Not available

20

UNKNOWN

$

$

Not available

21

UNKNOWN

$

$

Not available

22

UNKNOWN

$

$

Not available

23

UNKNOWN

$

$

Not available

24

UNKNOWN

$

$

Not available

25

UNKNOWN

$

$

Not available

26

UNKNOWN

$

$

Not available

27

UNKNOWN

$

$

Not available

28

UNKNOWN

$

$

Not available

29

UNKNOWN

$

$

Not available

32

UNKNOWN

$

$

Not available

33

UNKNOWN

$

$

Not available

34

UNKNOWN

$

$

Not available

35

UNKNOWN

$

$

Not available

36

UNKNOWN

$

$

Not available

37

UNKNOWN

$

$

Not available
