993510 - Gravely Pro-Chip 12" Chipper, Perkins Diesel (SN: 000101 & Above) Couplers And Actuator/Hitch Parts Diagram

Pro-Chip 12" Chipper, Perkins Diesel

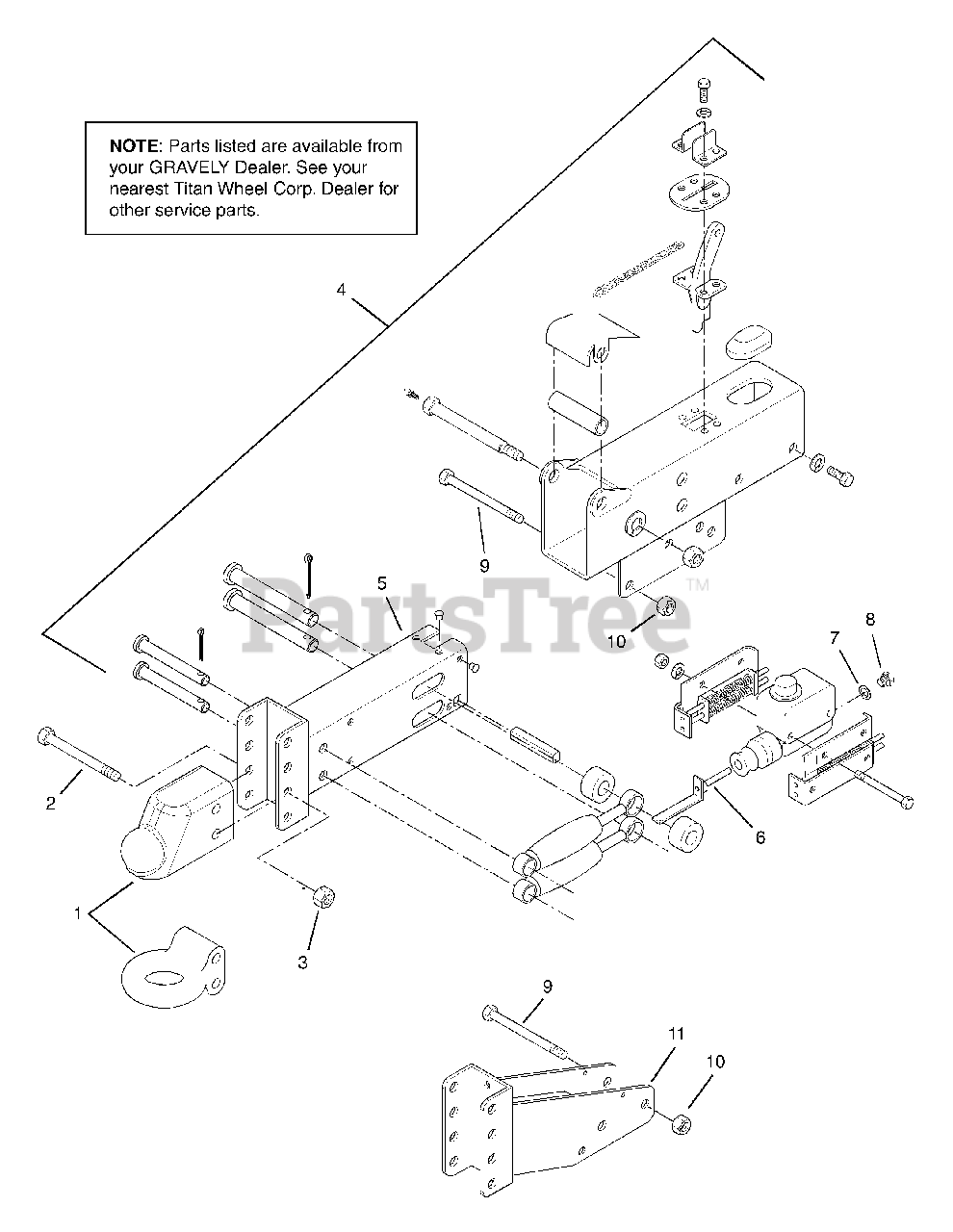

Couplers And Actuator/Hitch Parts Diagram

  • Title

1

Gravely 04113500

ADJUSTABLE BALL COUPLER 2 5/16

Note: (Option 7)

$

$

Not available

Gravely 04124751

HITCH-RING

Note: (Option 6)

$

$

Not available

2

Gravely 05962400

BLT-HEX .62-11X4.25 GR5 YWZC

$

$

Not available

3

Gravely 06535300

NUT-LK-CTR .62-11 YWZC

$2.99

$

In Stock, only 1 left!

0

4

Gravely 09312600

ACTUATOR HYD. SURGE

Note: (Option 5); Includes Items 5-8 and Repair Kit below

$

$

Not available

Gravely 21509700

1 1/4 MASTER CYL REPAIR KIT

$

$

Not available

5

Gravely 21509600

INNER SLIDE ASSY W/CHANNEL

$

$

Not available

6

Gravely 21509300

PUSH ROD ASSY

$

$

Not available

7

Gravely 21509400

GASKET

$

$

Not available

8

Gravely 21509500

CONNECTOR

$

$

Not available

9

Gravely 05961900

BLT-HEX .50-13X4.00 GR5 YWZC
(Superseded to 05901734)

$3.99

$

Usually ships in 4-12 days

0

10

Gravely 06528200

NUT-LK-CONE .50-13 GR C YWZC

$3.99

$

In Stock, Qty 5

0

11

Gravely 09336800

HITCH WELD ASSY

Note: (Option 4)

$

$

Not available
