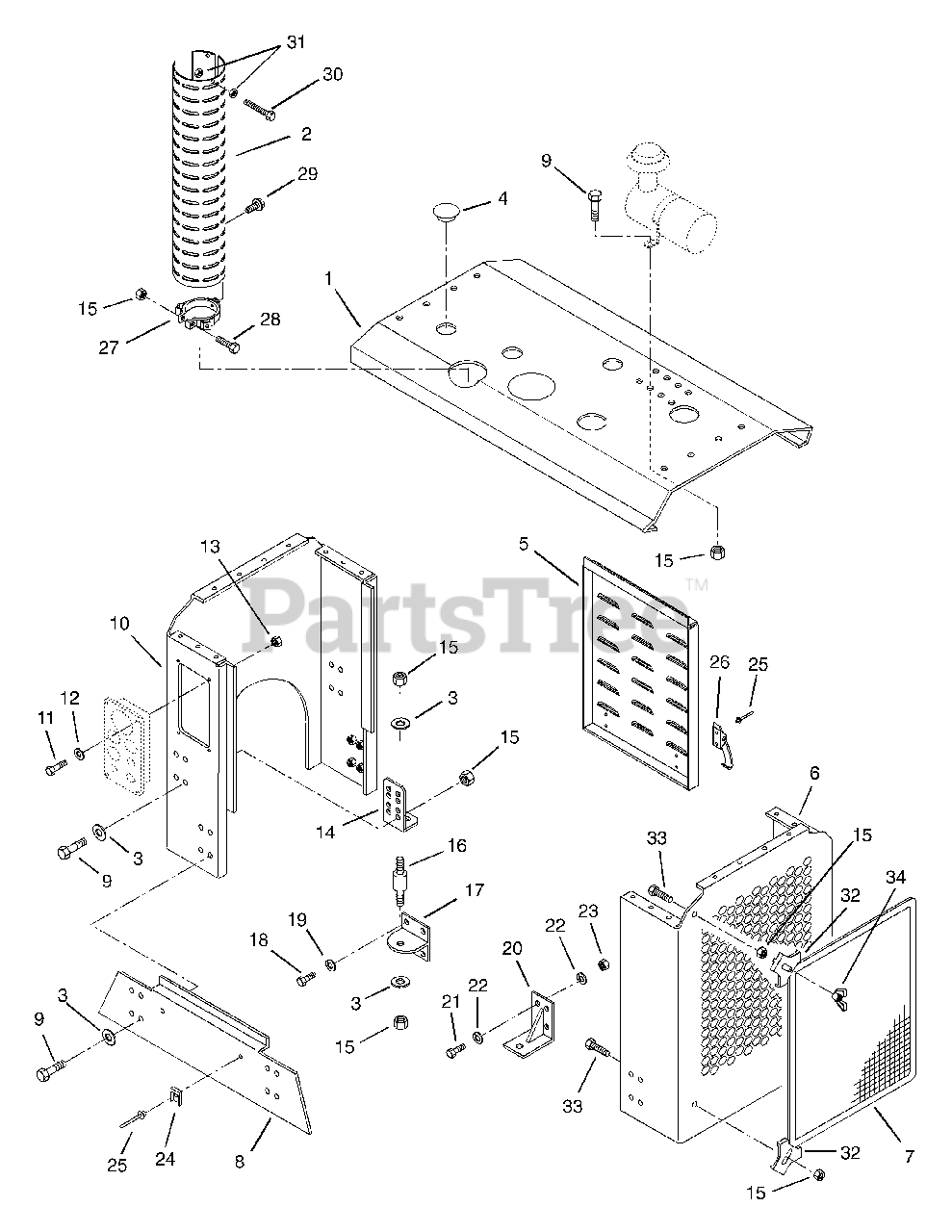

993510 - Gravely Pro-Chip 12" Chipper, Perkins Diesel (SN: 000101 & Above) Engine Housing And Muffler Guard Parts Diagram

Pro-Chip 12" Chipper, Perkins Diesel

Engine Housing And Muffler Guard Parts Diagram

  • Title

1

Gravely 09330550

HOOD (81HP W/DONALDSON)

Note: (Option 1)

$

$

Not available

Gravely 09330650

HOOD (102HP W/DONALDSON)

Note: (Option 2)

$

$

Not available

Gravely 09330750

HOOD (110HP W/DONALDSON)

Note: (Option 3)

$

$

Not available

Gravely 09349500

HOOD-86HP

Note: (Options 10 & 11)

$176.99

$

Usually ships in 4-12 days

0

Gravely 09350300

HOOD-110 HP PERKINS

Note: (Option 12)

$176.99

$

Usually ships in 4-12 days

0

Gravely 09350700

HOOD-115 HP JOHN DEERE

Note: (Option 13)

$

$

Not available

2

Gravely 09330400

GUARD-MUFFLER 495

Note: (Options 1 - 3)

$

$

Not available

Gravely 09350400

GUARD-MUFFLER

Note: (Options 10 - 12)

$

$

Not available

Gravely 09351500

GUARD-MUFFLER

Note: (Option 13)

$

$

Not available

3

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 09323200

HOLE PLUG

Note: (Options 1 - 3)

$

$

Not available

5

Gravely 09322850

DOOR

Note: (Options 1 - 3)

$

$

Not available

Gravely 09349600

DOOR

Note: (Options 10 - 13)

$

$

Not available

6

Gravely 09322650

PANEL, FRONT

Note: (Options 1 - 3)

$

$

Not available

Gravely 09349400

PANEL-FRONT

Note: (Options 10 - 13)

$

$

Not available

7

Gravely 09333100

SCREEN, RADIATOR 24X26

$

$

Not available

8

Gravely 09322950

SIDE FILLER PANEL

Note: (Options 1 - 3)

$

$

Not available

Gravely 09349100

PANEL-SIDE FILLER,RH

Note: (Options 10 - 13)

$

$

Not available

Gravely 09349200

PANEL-SIDE FILLER,LH

Note: (Options 10 - 13)

$

$

Not available

9

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 09322550

REAR PANEL

Note: (Options 1 - 3)

$

$

Not available

Gravely 09349300

PANEL-REAR

Note: (Options 10 - 13)

$

$

Not available

11

Gravely 05947700

BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.99

$

In Stock, only 2 left!

0

12

Gravely 06435800

WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 09323000

OUTER SUPPORT BRACKET

$

$

Not available

15

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 09323400

ISOLATOR

$

$

Not available

17

Gravely 09323100

INNER SUPPORT BRACKET

Note: (Options 1 - 3 & 10 - 12)

$

$

Not available

18

Gravely 05946400

BLT-HEX M12 X 1.75X25 YWZC

$

$

Not available

19

Gravely 06307300

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 09323500

INNER SUPPORT BRACKET

Note: (Options 1 - 3 & 10 - 12)

$

$

Not available

21

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

23

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 09329000

CATCH-OVER CENTER LATCH

$

$

Not available

25

Gravely 06803900

RVT-POP.187X.277 DOME ST

$

$

Not available

26

Gravely 09328900

LATCH-OVER CENTER

$

$

Not available

27

Gravely 09330300

CLAMP-MUFFLER GUARD

Note: (Option 1 - 3 & 10 - 12)

$

$

Not available

Gravely 09351600

CLAMP-MUFFLER GUARD

Note: (Option 13)

$

$

Not available

28

Gravely 05952400

BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$1.99

$

In Stock, Qty 15

0

29

Gravely 07411500

SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

Note: (Options 1 - 3 & 10 - 12)

$1.99

$

In Stock, Qty 20+

0

Gravely 07411500

SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

Note: (Option 13)

$1.99

$

In Stock, Qty 20+

0

30

Gravely 05961600

BLT-HEX .25-20X2.50 GR5 YWZC

Note: (Options 1 - 3 & 10 - 12)

$2.99

$

Usually ships in 4-12 days

0

31

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

Note: (Options 1 - 3 & 10 - 12)

$0.99

$

In Stock, Qty 20+

0

32

Gravely 09333200

CLIP, SCREEN

$

$

Not available

33

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

34

Gravely 06537100

NUT-NYLK WING .312-18 YWZC

$6.49

$

In Stock, only 1 left!

0
