993510 - Gravely Pro-Chip 12" Chipper, Perkins Diesel (SN: 000101 & Above) Engine (Option 1, 2 & 3) Parts Diagram

Pro-Chip 12" Chipper, Perkins Diesel

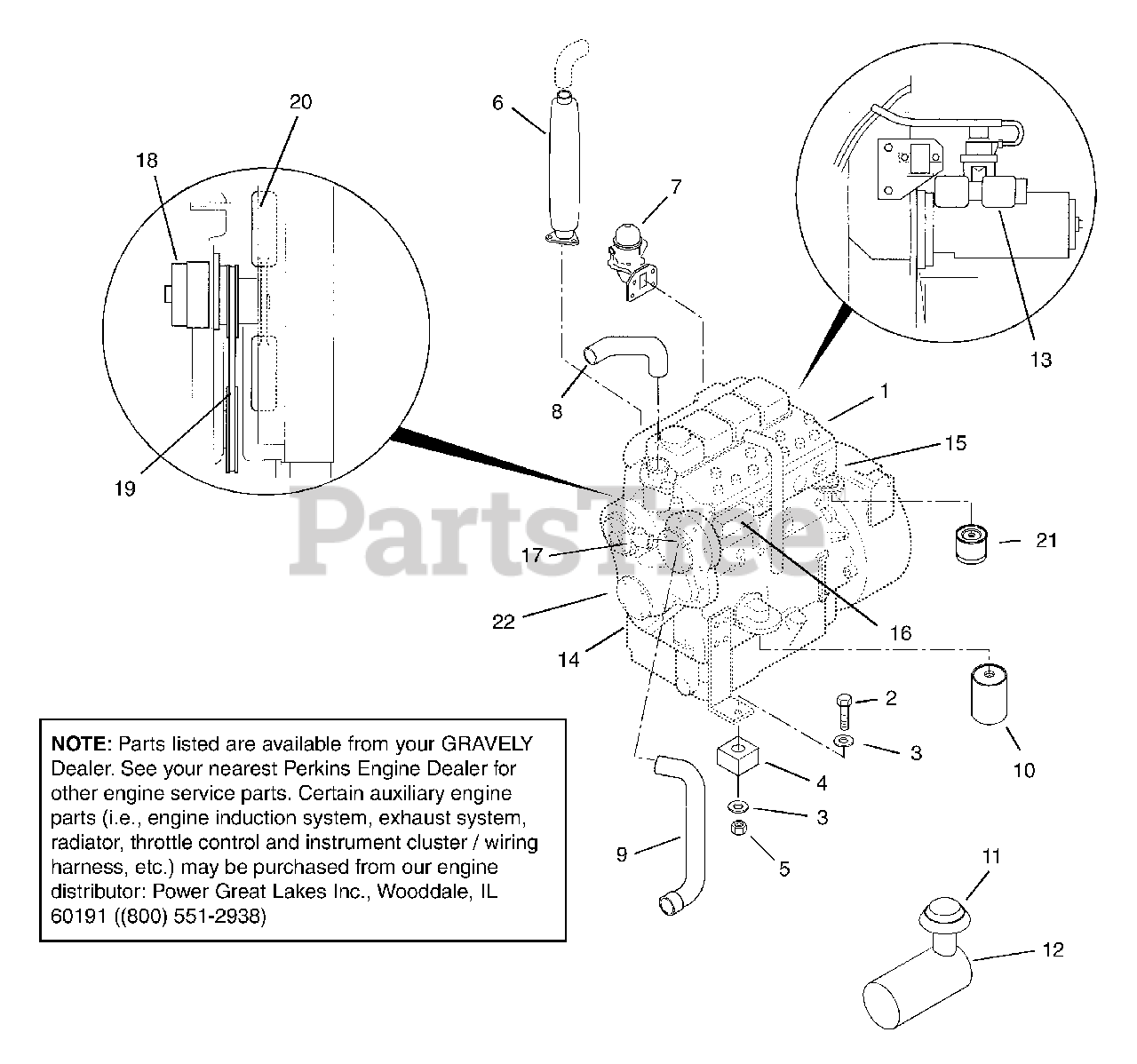

Engine (Option 1, 2 & 3) Parts Diagram

  • Title

1

Gravely 08248400

ENGINE-PERKINS 4.236 81HP

Note: (Option 1)

$

$

Not available

Gravely 08252500

ENGINE-PERKINS T4.236 99HP

Note: (Option 2)

$

$

Not available

Gravely 08252600

ENGINE-PERKINS FASTRAM 108HP

Note: (Option 3)

$

$

Not available

2

Gravely 05961700

BLT-HEX .75-10X3.00 GR5 YWZC

$3.99

$

Usually ships in 4-12 days

0

3

Gravely 06439800

WSHR-FL-STL.812X2.00X.148YWZC
(Superseded to 06401201)

$4.99

$

In Stock, Qty 11

0

4

Gravely 09325000

ENGINE BASE SPACER

$5.99

$

Usually ships in 4-12 days

0

Gravely 09351000

SPACER .812X2.00X1.12

$

$

Not available

5

Gravely 06535400

NUT-LK-CTR .75-10 YWZC

$6.49

$

Usually ships in 4-12 days

0

6

Gravely 59308900

MUFFLER (SERVICE)

Note: (Option 1)

$

$

Not available

Gravely 59309000

MUFFLER (SERVICE)

Note: (Options 2 & 3)

$

$

Not available

7

Gravely 59308300

PUMP-LIFT

Note: (Option 1)

$

$

Not available

Gravely 59310200

PUMP-LIFT

Note: (Option 2)

$

$

Not available

Gravely 59308400

PUMP-LIFT

Note: (Option 3)

$

$

Not available

8

Gravely 59309400

HOSE-RADIATOR TOP

$

$

Not available

9

Gravely 59309500

HOSE-RADIATOR BOTTOM

$

$

Not available

10

Gravely 59307700

FILTER-OIL

$

$

Not available

11

Gravely 59307800

FILTER-AIR,PRIMARY

Note: (Options 1 & 3)

$

$

Not available

Gravely 59309900

FILTER-AIR,PRIMARY

Note: (Option 2)

$

$

Not available

12

Gravely 59307900

FILTER-AIR,SECONDARY

Note: (Options 1 & 3)

$

$

Not available

Gravely 59310000

FILTER-AIR,SECONDARY

Note: (Option 2)

$

$

Not available

13

Gravely 59309600

STARTER

Note: (Option 1, 2, & 3)

$

$

Not available

14

Gravely 59308600

GASKET KIT-BOTTOM

Note: (Options 1 & 2); (Option 3-order individual gaskets from Perkins)

$

$

Not available

15

Gravely 59308500

GASKET KIT-TOP

Note: (Option 1)

$

$

Not available

Gravely 59310300

GASKET KIT-TOP

Note: (Option 2); (Option 3-order individual gaskets from Perkins)

$

$

Not available

16

Gravely 59308100

PUMP-INJECTION

Note: (Option 1)

$

$

Not available

Gravely 59310100

PUMP-INJECTION

Note: (Option 2)

$

$

Not available

Gravely 59308200

PUMP-INJECTION

Note: (Option 3)

$

$

Not available

17

Gravely 59308000

PUMP-WATER

$

$

Not available

18

Gravely 59309700

ALTERNATOR

$

$

Not available

19

Gravely 59308700

BELT (SERVICE)

Note: (Option 1)

$

$

Not available

Gravely 59310400

BELT (SERVICE)

Note: (Option 2)

$

$

Not available

Gravely 59308800

BELT (SERVICE)

Note: (Option 3)

$

$

Not available

20

Gravely 59309200

FAN (SERVICE)

Note: (Option 1)

$

$

Not available

Gravely 59310600

FAN

Note: (Option 2)

$

$

Not available

Gravely 59309300

FAN (SERVICE)

Note: (Option 3)

$

$

Not available

21

Gravely 59309800

ELEMENT-FUEL FILTER

$

$

Not available

22

Gravely 59309100

PUMP-OIL

$

$

Not available

Gravely 09353900

ASSEMBLY, INSTRUMENT PANEL

Note: Instrument Panel Replacement Parts

$

$

Not available

Gravely 09354000

TACH HOUR METER W/LIGHT

Note: Instrument Panel Replacement Parts

$

$

Not available

Gravely 09354100

GAUGE, OIL PRESSURE

Note: Instrument Panel Replacement Parts

$

$

Not available

Gravely 09354200

GAUGE, WATER TEMPERATURE

Note: Instrument Panel Replacement Parts

$

$

Not available

Gravely 09354300

TAIL, TATTLE

Note: Instrument Panel Replacement Parts

$

$

Not available

Gravely 09354400

METER, VOLT

Note: Instrument Panel Replacement Parts

$

$

Not available

Gravely 09354500

SWITCH, KEY

Note: Instrument Panel Replacement Parts

$

$

Not available

Gravely 09354600

PLATE, CAUTION

Note: Instrument Panel Replacement Parts

$

$

Not available

Gravely 09354700

PANEL

Note: Instrument Panel Replacement Parts

$

$

Not available

Gravely 09354800

HARNESS, WIRING

Note: Instrument Panel Replacement Parts

$

$

Not available

Gravely 09354900

KIT, OIL PRESSURE LINE

Note: Instrument Panel Replacement Parts

$

$

Not available

Gravely 09355000

THROTTLE 60"

Note: Instrument Panel Replacement Parts

$

$

Not available

Gravely 09355100

KEY, IGNITION PERKINS

Note: Instrument Panel Replacement Parts

$

$

Not available
