993510 - Gravely Pro-Chip 12" Chipper, Perkins Diesel (SN: 000101 & Above) Engine (Option 13) Parts Diagram

Pro-Chip 12" Chipper, Perkins Diesel

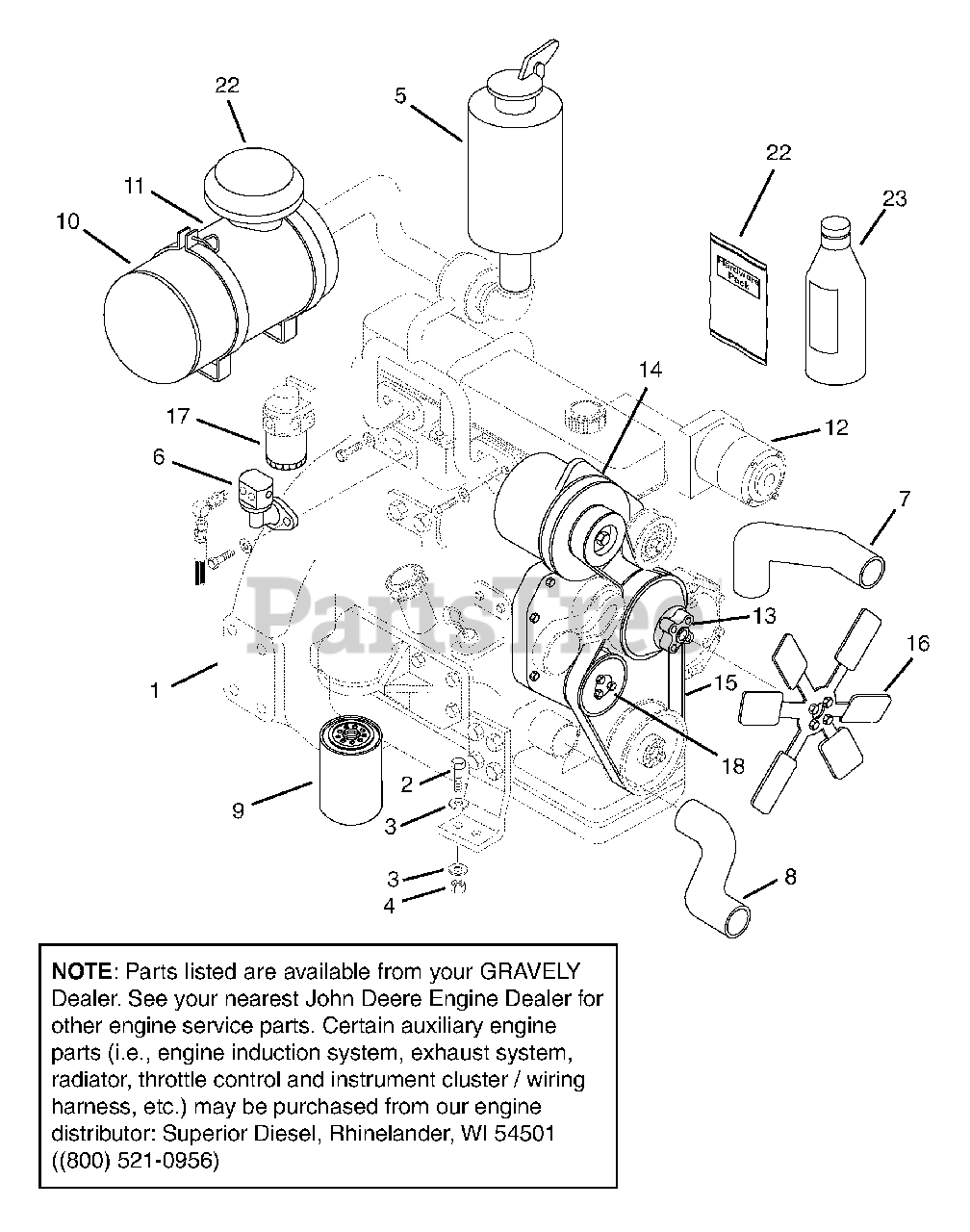

Engine (Option 13) Parts Diagram

  • Title

1

Gravely 08257300

ENGINE 115HP JD 350--4045TF150

$

$

Not available

2

Gravely 05966900

BLT-HEX .75-10X2.50 GR5 YWZC

$

$

Not available

3

Gravely 06439800

WSHR-FL-STL.812X2.00X.148YWZC
(Superseded to 06401201)

$4.99

$

In Stock, Qty 11

0

4

Gravely 06535400

NUT-LK-CTR .75-10 YWZC

$6.49

$

Usually ships in 4-12 days

0

5

Gravely 59313800

MUFFLER

$

$

Not available

6

Gravely 59313900

PUMP-LIFT (FUEL)

Note: (Fuel)

$

$

Not available

7

Gravely 59314000

HOSE-RADIATOR UPPER

$

$

Not available

8

Gravely 59314100

HOSE-RADIATOR LOWER

$

$

Not available

9

Gravely 59314200

FILTER-OIL

$

$

Not available

10

Gravely 59314300

FILTER-AIR PRIMARY

$

$

Not available

11

Gravely 59314400

FILTER-AIR SECONDARY

$

$

Not available

12

Gravely 59314500

STARTER

$

$

Not available

13

Gravely 59314800

PUMP-WATER

$

$

Not available

Gravely 59314900

GASKET-WATER PUMP

$

$

Not available

14

Gravely 59315000

ALTERNATOR

$

$

Not available

15

Gravely 59315100

BELT (SERVICE)

$

$

Not available

16

Gravely 59315200

FAN

$

$

Not available

17

Gravely 59315300

FILTER-FUEL

$

$

Not available

18

Gravely 59315400

PUMP-OIL

$

$

Not available

19

Gravely 59314600

KIT-GASKET OVERHAUL

$

$

Not available

20

Gravely 59314700

KIT-GASKET TUNE-UP(HEAD REMVL)

Note: (Tune-up) (Head Removal)

$

$

Not available

21

Gravely 59315500

CAP-AIR INTAKE

$

$

Not available

22

Gravely 59315600

KITS-COOLANT CONDITIONER TEST

$

$

Not available

23

Gravely 59315700

CONTIONER-COOLANT, 1/2 GALLON

$

$

Not available
