993510 - Gravely Pro-Chip 12" Chipper, Perkins Diesel (SN: 000101 & Above) Feed Hopper Parts Diagram

Pro-Chip 12" Chipper, Perkins Diesel

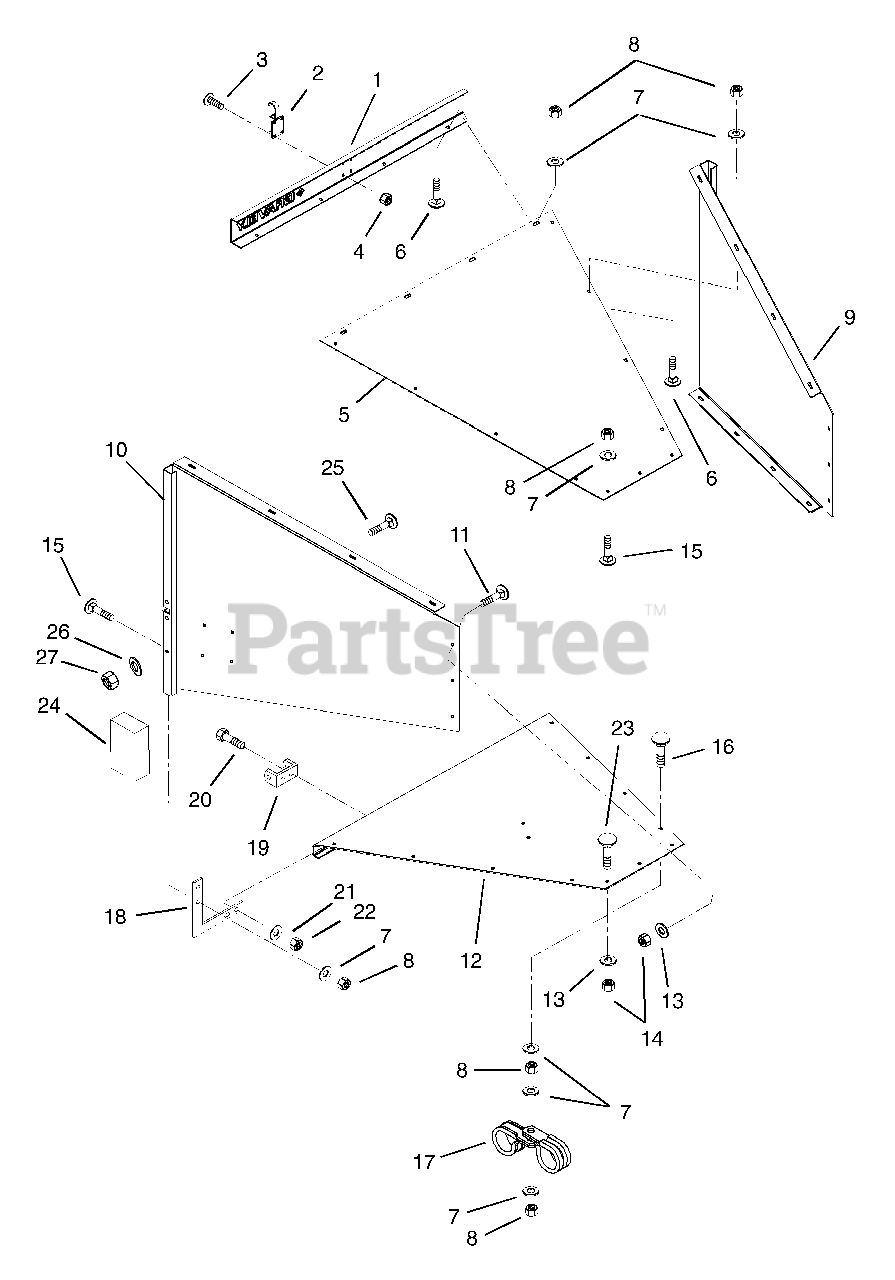

Feed Hopper Parts Diagram

  • Title

1

Gravely 09317100

HOPPER SAFETY TAB

$

$

Not available

2

Gravely 09321100

LATCH-495

$

$

Not available

3

Gravely 06116700

SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 09316800

HOPPER TOP

$

$

Not available

6

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

7

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 09324400

HOPPER-LH SIDE

$

$

Not available

10

Gravely 09310100

HOPPER-RH SIDE

$

$

Not available

11

Gravely 06220900

BLT-RDHDSQNK .50-13X1.25 G2YW
(Superseded to 06200325)

$6.99

$

Usually ships in 4-12 days

0

12

Gravely 09337500

BOTTOM-HOPPER

$

$

Not available

13

Gravely 06442000

WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.99

$

In Stock, Qty 20+

0

14

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

15

Gravely 06216100

BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 06219200

BLT-RDHDSQNK .31-18X1.25 G5YZ
(Superseded to 06200407)

$4.99

$

Usually ships in 4-12 days

0

17

Gravely 06917900

CLAMP, COUSHIONED STEEL REV

$15.99

$

Usually ships in 4-12 days

0

18

Gravely 09327700

REINFORCEMENT-HOPPER CORNER

$

$

Not available

19

Gravely 09327600

HINGE-APRON

$

$

Not available

20

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 18

0

21

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06215600

BLT-RDHDSQNK .50-13X1.00 G2YW
(Superseded to 06224600)

$3.99

$

Usually ships in 4-12 days

0

24

Gravely 09347000

BOX-LITERATURE

$

$

Not available

25

Gravely 06220600

BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$1.49

$

In Stock, Qty 11

0

26

Gravely 06435800

WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0
