993510 - Gravely Pro-Chip 12" Chipper, Perkins Diesel (SN: 000101 & Above) Flywheel And Housing Parts Diagram

Pro-Chip 12" Chipper, Perkins Diesel

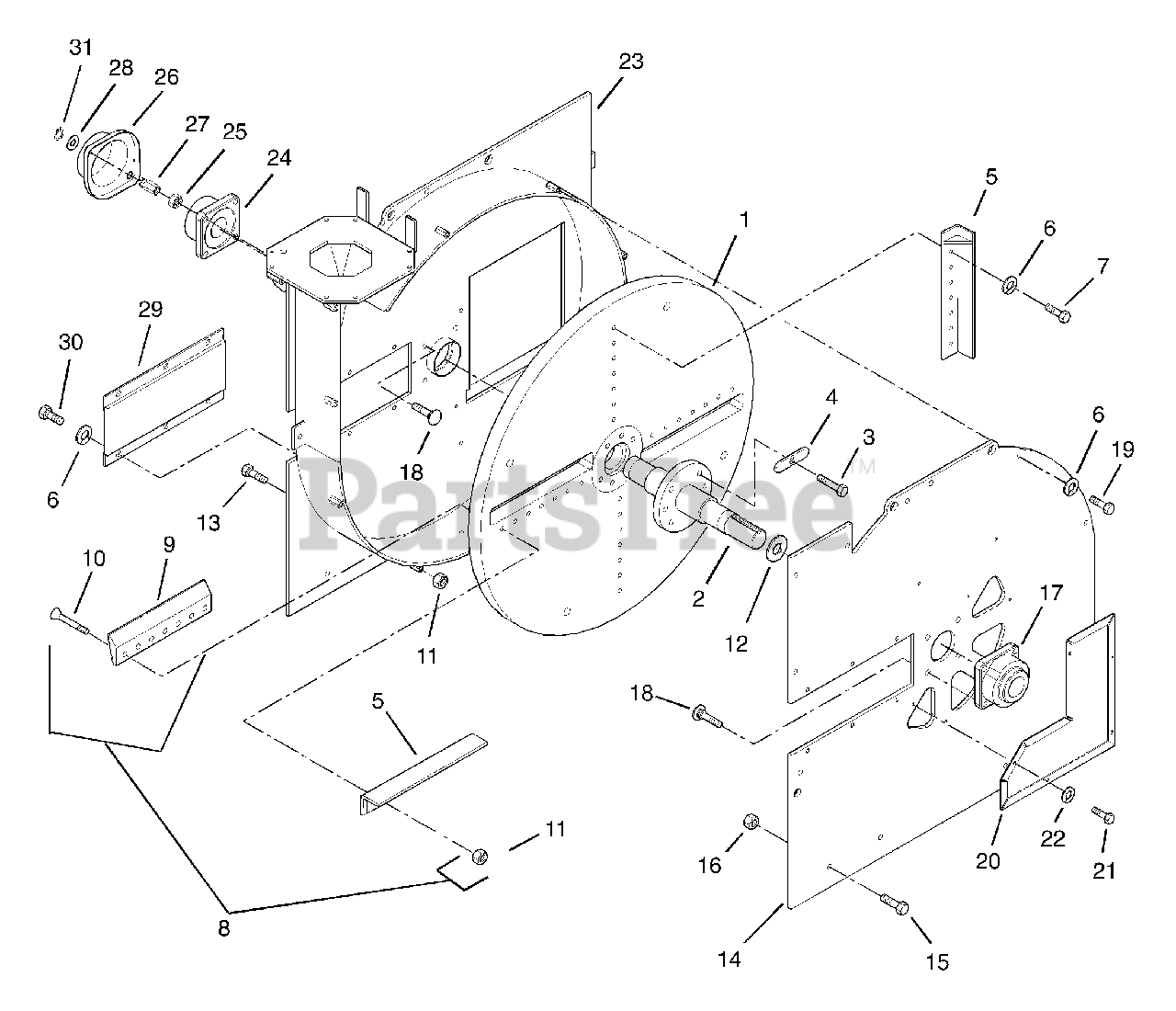

Flywheel And Housing Parts Diagram

  • Title

1

Gravely 09311800

FLYWHEEL 495

$

$

Not available

2

Gravely 09312400

FLYWHEEL SHAFT WELDMENT

$

$

Not available

3

Gravely 05930700

BLT-HEX .62-11X2.25 YWZC GR8

$3.99

$

Usually ships in 4-12 days

0

4

Gravely 04125200

LOCK TAB

$

$

Not available

5

Gravely 09321000

IMPELLER WELDMENT

$

$

Not available

6

Gravely 06307300

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 05958900

BLT-HEX .50-13X1.25 GR5 YWZC
(Superseded to 05901637)

$3.49

$

In Stock, Qty 6

0

8

Gravely 59304700

CHIPPER KNIFE SET 495

Note: (Contains Items 9-11)

$

$

Not available

9

Cutter Knife

$

$

Not available

10

Gravely 05929700

BLT-FL-SKH.50-13X3.50 GR8 BP&O

$

$

Not available

11

Gravely 06528200

NUT-LK-CONE .50-13 GR C YWZC

$3.99

$

In Stock, Qty 5

0

12

Gravely 09303100

SHIM-FLYWHEEL SHAFT

$

$

Not available

13

Gravely 05930600

BLT-HEX .50-13X1.25 YZ GR5

$

$

Not available

14

Gravely 09314600

HOUSING (FRONT)

Note: (Front)

$

$

Not available

15

Gravely 05959600

BLT-HEX .75-10X1.50 GR5 YWZC

$3.99

$

Usually ships in 4-12 days

0

16

Gravely 06535400

NUT-LK-CTR .75-10 YWZC

$6.49

$

Usually ships in 4-12 days

0

17

Gravely 05418400

BRG-FLG 2.4375ID EXPANDABLE

$

$

Not available

18

Gravely 04129900

BOLT-RIB NECK .625-18 X 2.19

$

$

Not available

19

Gravely 05946000

BLT-HEX .50-13X1.75 YZ GR8

$

$

Not available

20

Gravely 09315700

SCREEN FRAME WELDMENT

$

$

Not available

21

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 09335700

REAR HOUSING WELD.

Note: (Rear)

$

$

Not available

24

Gravely 05418300

BRG-FLG 2.4375 ID NON-EXPANDAB

$

$

Not available

25

Gravely 06519200

NUT-LK .625-18 FLEX YWZC

$

$

Not available

26

Gravely 09309200

BEARING COVER

$

$

Not available

27

Gravely 09344200

COUPLER

$

$

Not available

28

Gravely 06441400

WSHR-FL-STL.754X1.125X.062YWZC
(Superseded to 06401119)

$1.49

$

In Stock, Qty 14

0

29

Gravely 09315100

ACCESS COVER WELDMENT

$

$

Not available

30

Gravely 05947100

BLT-HEX .50-13X1.00 GR5 YWZC
(Superseded to 05901715)

$2.99

$

In Stock, only 2 left!

0

31

Gravely 05701200

RG-RTNG-EXT .750X.042
(Superseded to 05700135)

$2.99

$

In Stock, only 2 left!

0
