993510 - Gravely Pro-Chip 12" Chipper, Perkins Diesel (SN: 000101 & Above) Frame Parts Diagram

Pro-Chip 12" Chipper, Perkins Diesel

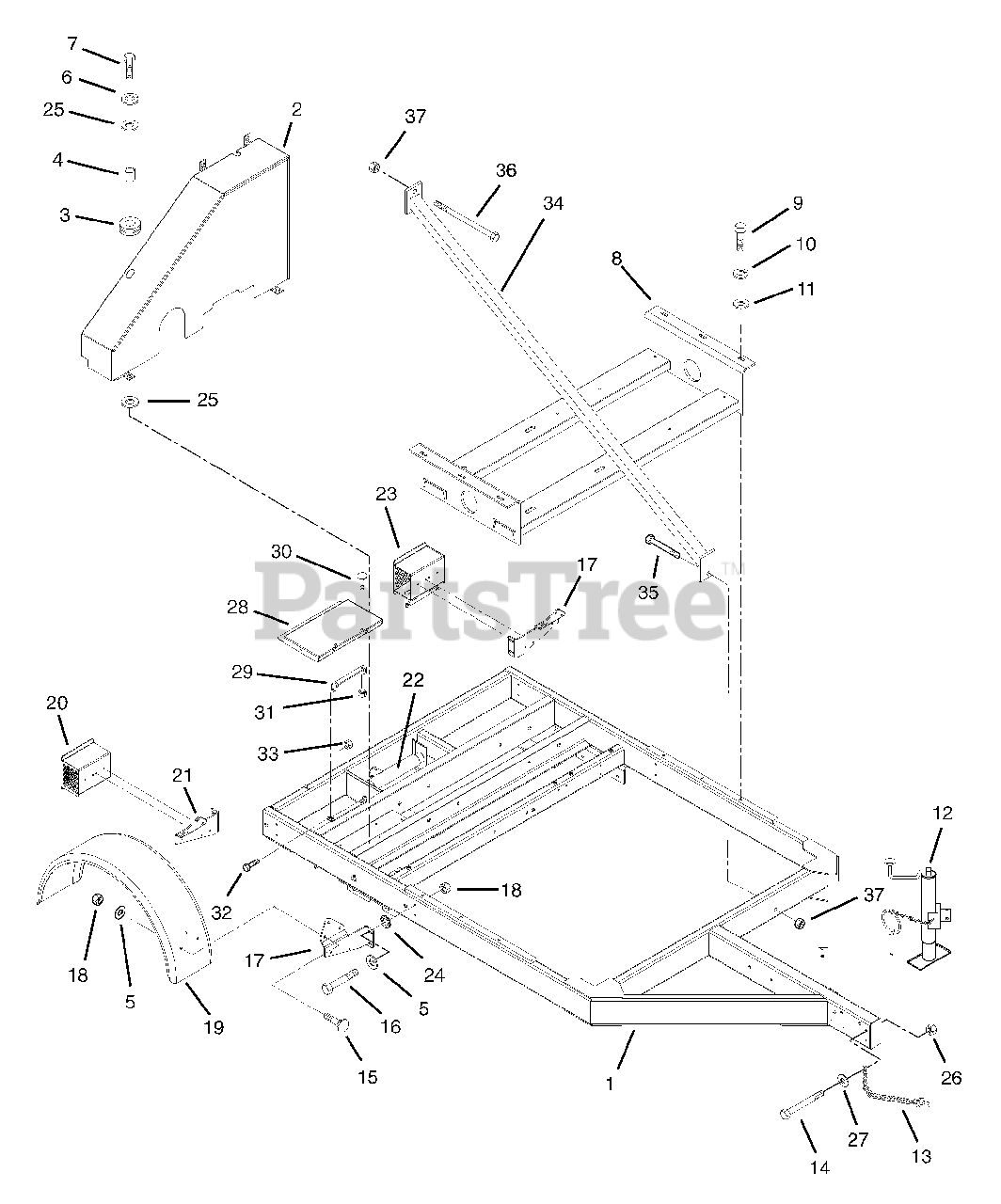

Frame Parts Diagram

  • Title

1

Gravely 59310500

PACKAGE-TRAILER REPLACEMENT

$

$

Not available

Gravely 09347300

FRAME-TRAILER WELD ASSY

$

$

Not available

2

Gravely 09327300

WELDMENT-BELT GUARD

$

$

Not available

3

Gravely 07506400

GROMMET .50IDX.812OD

$6.49

$

Usually ships in 4-12 days

0

4

Gravely 09326700

BSHG-SLV .392 X .500 X .440

$

$

Not available

5

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 18

0

8

Gravely 59315900

BASE-ENGINE, REPLACEMENT

Note: (Options 1, 2, 3, 10 - 12)

$

$

Not available

Gravely 09350900

BASE-ENGINE WELD ASSY

Note: (Options 1, 2, 3, 10 - 12)

$

$

Not available

Gravely 09350600

BASE-ENGINE WELD ASSY

Note: (Option 13)

$

$

Not available

9

Gravely 05958900

BLT-HEX .50-13X1.25 GR5 YWZC
(Superseded to 05901637)

$3.49

$

In Stock, Qty 6

0

10

Gravely 06307300

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06442000

WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.99

$

In Stock, Qty 20+

0

12

Gravely 09332400

JACK-2000 LB X 17.75 SCREW

$

$

Not available

13

Gravely 09319500

SAFETY CHAIN

$

$

Not available

14

Gravely 05964200

BLT-HEX .44-14X5.00 GR5 YWZC

$

$

Not available

15

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

16

Gravely 05960600

BLT-HEX .31-18X2.75 GR5 YWZC
(Superseded to 05901807)

$2.99

$

In Stock, Qty 6

0

17

Gravely 09318100

FENDER BRACKET LH

$

$

Not available

18

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 09317400

FENDER
(Superseded to 09317450)

$

$

Not available

20

Gravely 09322100

RH TAIL LIGHT BRACKET WLD

$

$

Not available

21

Gravely 09318000

FENDER BRACKET RH

$

$

Not available

22

Gravely 09320400

JACK-2000 LB X 12.75 SCREW

$

$

Not available

23

Gravely 09322300

LH TAIL LIGHT BRKT WLDMENT

$

$

Not available

24

Gravely 06307200

WSHR-LK-EXT.326X.599X.031YWZC
(Superseded to 06300125)

$0.99

$

In Stock, Qty 9

0

25

Gravely 06441700

WSHR-FL-STL .390X1.5X.125 YWZC

$3.99

$

In Stock, Qty 12

0

26

Gravely 06536400

NUT-LK-CTR .44-14 YWZC
(Superseded to 06500930)

$3.49

$

In Stock, only 4 left!

0

27

Gravely 06441000

WSHR-FL-STL.50X1.25X.083 YWZC
(Superseded to 06401202)

$3.49

$

In Stock, Qty 11

0

28

Gravely 09329100

TOOL BOX LID

$

$

Not available

29

Gravely 08827600

BRKT,CHUTE
(Superseded to 08827653)

$

$

Not available

30

Gravely 06219600

BLT-RDHDSQNK .38-16X.75 G2YWZ
(Superseded to 06223900)

$1.99

$

In Stock, Qty 10

0

31

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

33

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

34

Gravely 09329200

BRACE-HSG,WELDMENT

$45.99

$

Usually ships in 4-12 days

0

Gravely 09347400

BRACE-HOUSING WELD ASSY

$

$

Not available

35

Gravely 05959900

BLT-HEX .50-13X3.00 GR5 YWZC
(Superseded to 05901737)

$5.49

$

In Stock, Qty 14

0

36

Gravely 05961200

BLT-HEX .50-13X9.00 GR5 YWZC
(Superseded to 05901930)

$11.99

$

In Stock, Qty 20+

0

37

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0
