993510 - Gravely Pro-Chip 12" Chipper, Perkins Diesel (SN: 000101 & Above) Fuel System Parts Diagram

Pro-Chip 12" Chipper, Perkins Diesel

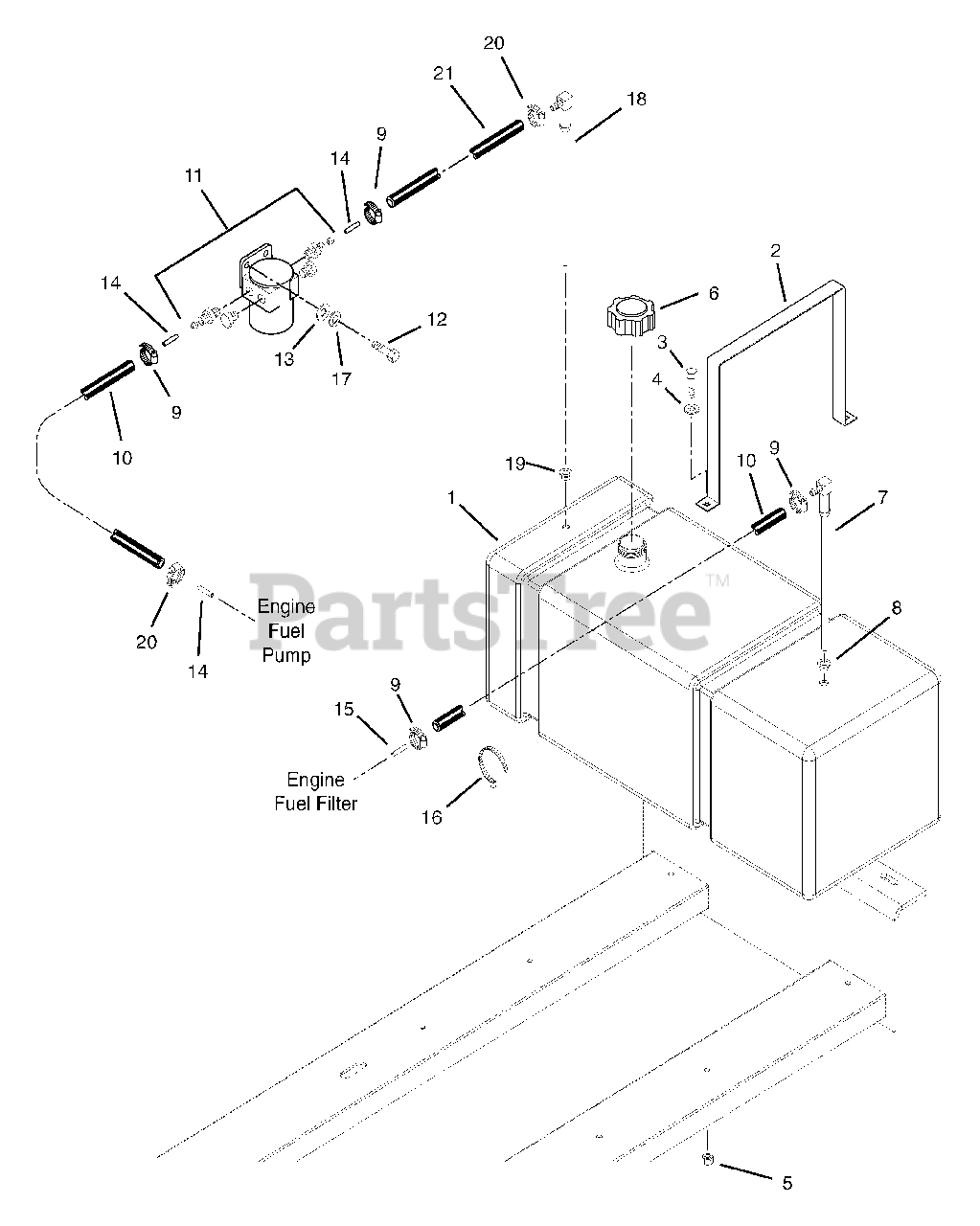

Fuel System Parts Diagram

  • Title

1

Gravely 09319300

FUEL TANK

Note: (Options 1-3 & 10-12)

$

$

Not available

Gravely 09351900

TANK-FUEL

Note: (Option 13)

$

$

Not available

2

Gravely 09321800

FUEL TANK STRAP

$

$

Not available

3

Gravely 05958500

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 07533400

CAP, FUEL TANK

$23.99

$

Usually ships in 4-12 days

0

7

Gravely 047614

FTG,TANK
(Superseded to 08983100)

$35.99

$

Usually ships in 4-12 days

0

8

Gravely 050246

BSHG-FLG .375 X 1.062 X .625 R
(Superseded to 07511400)

$3.99

$

In Stock, Qty 20+

0

9

Gravely 032045

HOSE CLAMP
(Superseded to 06924300)

Note: (Options 1-3 & 10-12)

$7.99

$

Usually ships in 4-12 days

0

Gravely 032045

HOSE CLAMP
(Superseded to 06924300)

Note: (Option 13)

$7.99

$

Usually ships in 4-12 days

0

10

Gravely 021134

HOSE, .25 LOW-PERM BULK GAS
(Superseded to 03278100)

Note: (Options 1-3 & 10-12)

$1.49

$

In Stock, Qty 20+

0

Gravely 021134

HOSE, .25 LOW-PERM BULK GAS
(Superseded to 03278100)

Note: (Option 13)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 09326900

PREFILTER-FUEL

Note: (Options 1-3 & 10-12)

$

$

Not available

12

Gravely 05947500

BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

Note: (Options 1-3 & 10-12)

$2.99

$

In Stock, Qty 11

0

13

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

Note: (Options 1-3 & 10-12)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 00928600

5/16" OD X .028 WALL

Note: (Options 1-3 & 10-12)

$

$

Not available

15

Gravely 00928500

1/4" OD X .028 WALL

Note: (Options 1-3 & 10-12)

$

$

Not available

16

Gravely 07517300

CABLE TIE LG 5-1/2

$1.49

$

Usually ships in 4-12 days

0

17

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

Note: (Options 1-3 & 10-12)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 047614

FTG,TANK
(Superseded to 08983100)

Note: (Options 1-3 & 10-12)

$35.99

$

Usually ships in 4-12 days

0

Gravely 07053800

FITTING-TANK

Note: (Option 13)

$

$

Not available

19

Gravely 050246

BSHG-FLG .375 X 1.062 X .625 R
(Superseded to 07511400)

Note: (Options 1-3 & 10-12)

$3.99

$

In Stock, Qty 20+

0

Gravely 07531000

BUSHING-FUEL LINE FTG

Note: (Option 13)

$

$

Not available

20

Gravely 032045

HOSE CLAMP
(Superseded to 06924300)

Note: (Options 1-3 & 10-12)

$7.99

$

Usually ships in 4-12 days

0

Gravely 06922100

CLAMP-HOSE WRM .44/.78X.53 F06

Note: (Option 13)

$5.49

$

Usually ships in 4-12 days

0

21

Gravely 021134

HOSE, .25 LOW-PERM BULK GAS
(Superseded to 03278100)

Note: (Options 1-3 & 10-12)

$1.49

$

In Stock, Qty 20+

0

Gravely 00933700

HOSE-FUEL LINE 3/8 I.D.

Note: (Option 13)

$

$

Not available
