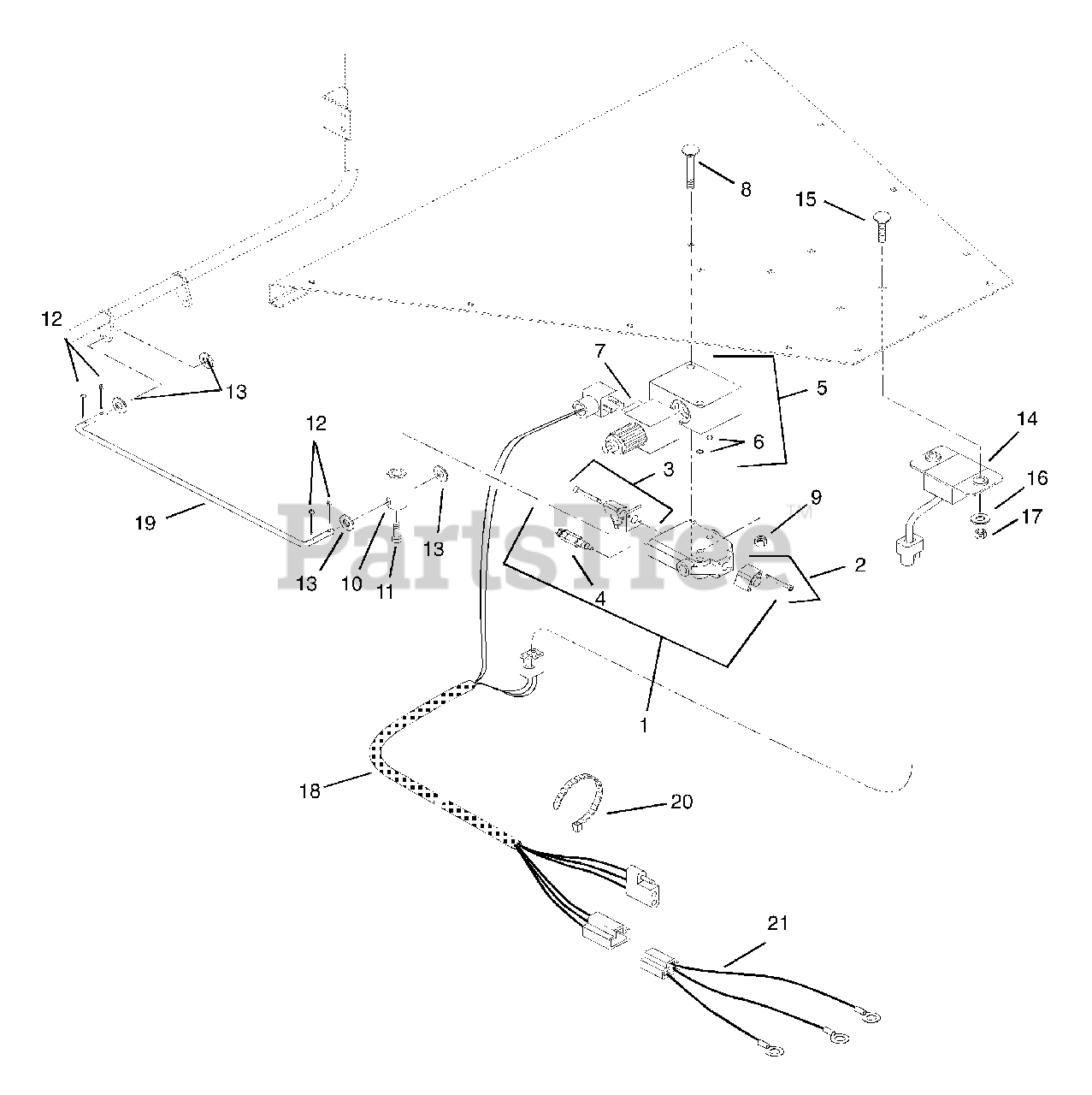

993510 - Gravely Pro-Chip 12" Chipper, Perkins Diesel (SN: 000101 & Above) Hydraulic Control Valve And Autofeed Parts Diagram

Pro-Chip 12" Chipper, Perkins Diesel

Hydraulic Control Valve And Autofeed Parts Diagram

  • Title

1

Gravely 09308800

VALVE HYD. BLB INC.

Note: (Option 8)

$

$

Not available

Gravely 09334900

VALVE-DIRECTIONAL CNTRL,MOD

Note: (Option 9); (Both Options Contain Items 2-4)

$

$

Not available

2

Gravely 09333900

DETENT ASSY-HYDRAULIC CNTRL V

$

$

Not available

3

Gravely 09334100

LEVER ASSY-HYDRAULIC CNTRL V

$

$

Not available

4

Gravely 09334000

RELIEF VALVE ASSY-HYD CNTRL V

$

$

Not available

5

Gravely 09335000

VALVE BASE ASSY-FLOW CNTRL

Note: (Option 9)

$

$

Not available

6

Gravely 05608400

O-RING .375X.504X.070

Note: (Option 9)

$3.49

$

Usually ships in 4-12 days

0

7

Gravely 09335100

VALVE-CARTRIDGE,FLOW CONTROL

Note: (Option 9)

$

$

Not available

8

Gravely 06212300

BLT-RDHDSQSHNK.31-18X2.75G2YWZ

Note: (Option 8)

$3.49

$

In Stock, Qty 12

0

Gravely 06222500

BLT-RDHDSQNKFT.312-18X4.0 G5YZ

Note: (Option 9)

$3.99

$

In Stock, only 2 left!

0

9

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 09309600

HEX ADAPTER

$

$

Not available

11

Gravely 05932500

SCR-SKH M8 X 1.25X20

$

$

Not available

12

Gravely 06712300

PIN-CTR .16X1.00 EXTPRSQCT YZ

$2.49

$

In Stock, Qty 12

0

13

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 09338800

MODULE-AUTOFEED

Note: (Option 9)

$

$

Not available

15

Gravely 06219800

BLT-RDHDSQNK .25-20X1.00 G5YZ
(Superseded to 06200402)

Note: (Option 9)

$2.49

$

In Stock, only 3 left!

0

16

Gravely 06435800

WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

Note: (Option 9)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

Note: (Option 9)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 09338200

HARNESS-WIRE,495 AUTOFEED

Note: (Option 9)

$

$

Not available

Gravely 09352400

HARNESS-WIRING AUTOFEED

Note: (Option 9)

$

$

Not available

19

Gravely 09311000

VALVE CONTROL ROD

$

$

Not available

20

Gravely 07517300

CABLE TIE LG 5-1/2

$1.49

$

Usually ships in 4-12 days

0

21

Gravely 09352500

HARNESS-ADAPTER AUTOFEED

Note: (Option 9 With Options 10-12)

$

$

Not available
