993510 - Gravely Pro-Chip 12" Chipper, Perkins Diesel (SN: 000101 & Above) Lights And Wiring Harness Parts Diagram

Pro-Chip 12" Chipper, Perkins Diesel

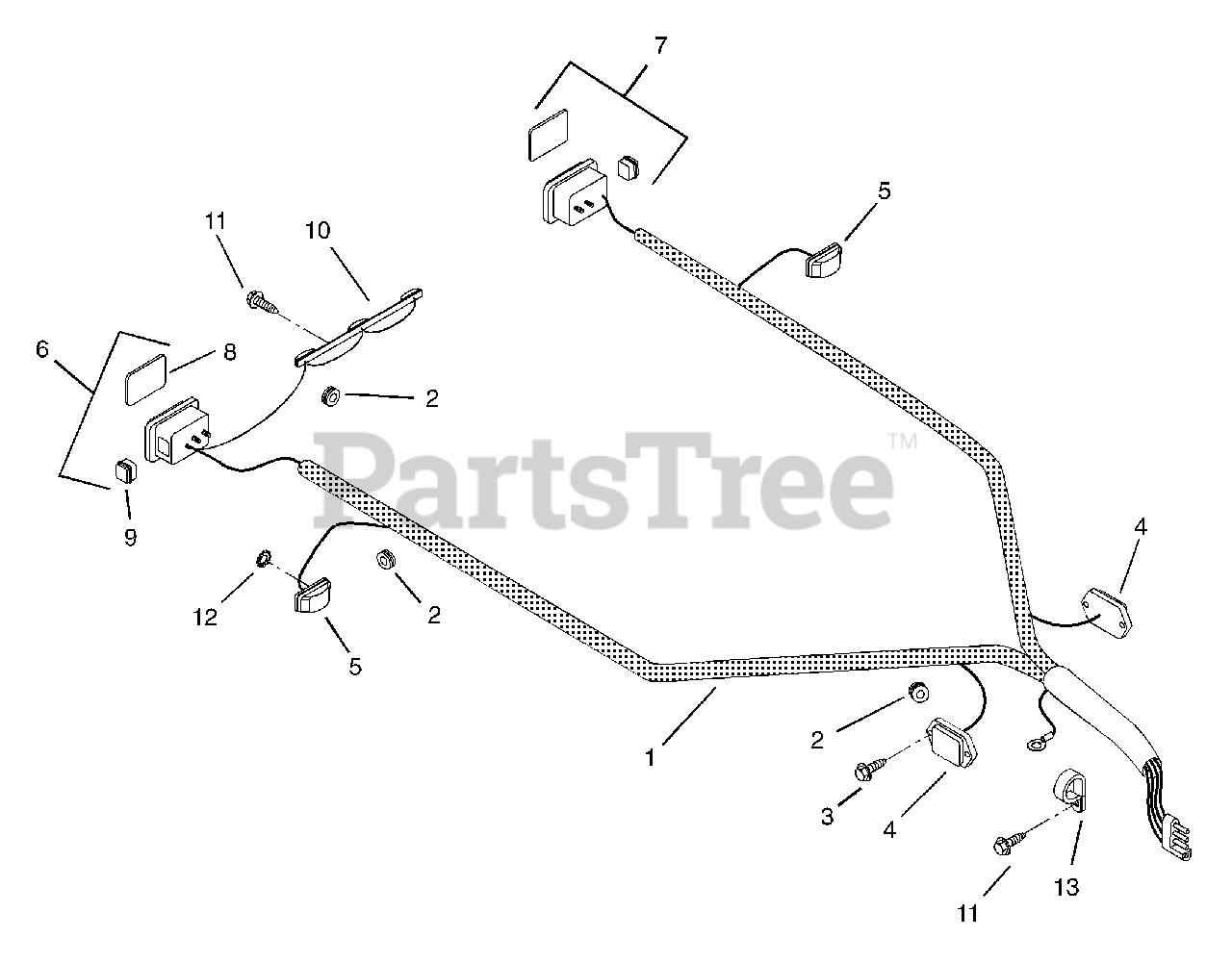

Lights And Wiring Harness Parts Diagram

  • Title

1

Gravely 09347500

HARNESS-WIRING,TRAILER LIGHTS

$

$

Not available

2

Gravely 07506400

GROMMET .50IDX.812OD

$6.49

$

Usually ships in 4-12 days

0

3

Gravely 06116700

SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 09320500

SIDE MARKER LIGHTS

$

$

Not available

5

Gravely 09321400

AMBER LIGHT

$

$

Not available

6

Gravely 09321700

TAIL LIGHT RH

$

$

Not available

7

Gravely 09321600

TAIL LIGHT LH

$

$

Not available

8

Gravely 09310000

LENS, TAIL LIGHT

$

$

Not available

9

Gravely 09322200

LENS REPLACEMENT S/M

$

$

Not available

10

Gravely 09321500

LIGHT BAR

$

$

Not available

11

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06306800

WSHR-LK-EXT.262X.502X.026YWZC
(Superseded to 06300118)

$0.99

$

In Stock, Qty 10

0

13

Gravely 06908200

CLAMP, CUSHIONED STEEL

$6.49

$

Usually ships in 4-12 days

0
