993510 - Gravely Pro-Chip 12" Chipper, Perkins Diesel (SN: 000101 & Above) Saddle And Upper Roller Parts Diagram

Pro-Chip 12" Chipper, Perkins Diesel

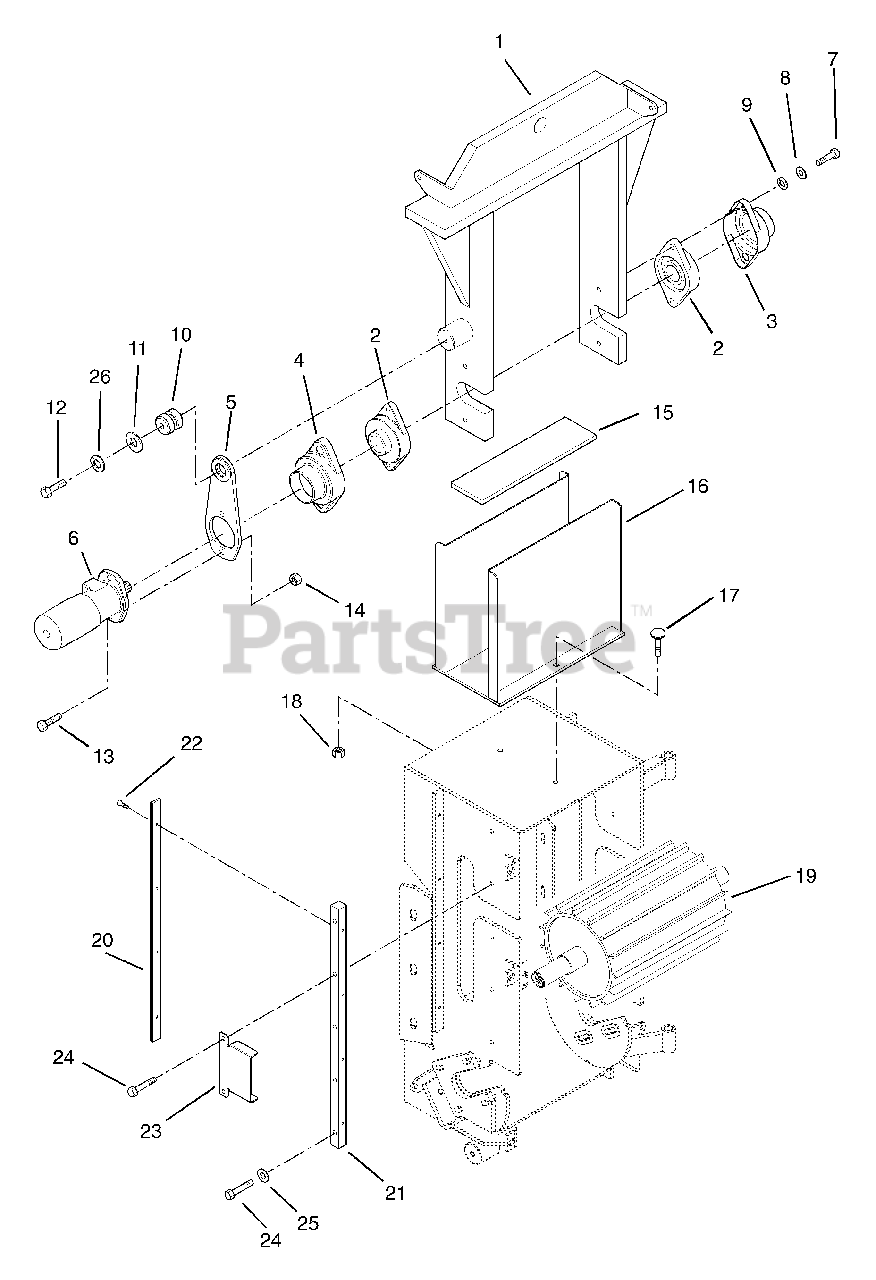

Saddle And Upper Roller Parts Diagram

  • Title

1

Gravely 59311300

SADDLE REPLACEMENT

$

$

Not available

Gravely 09346700

SADDLE WELD ASSY

$

$

Not available

2

Gravely 05413800

BRG-FLG 2 BOLT 1.625 SETSCR LK

$

$

Not available

3

Gravely 09338100

COVER-SHAFT

$

$

Not available

4

Gravely 09338000

COVER-BEARING

$

$

Not available

5

Gravely 09336900

ARM-TORQUE, WELD ASSY

$

$

Not available

Gravely 09346600

ARM-TORQUE WELD ASSY

$

$

Not available

6

Gravely 09334600

MOTOR-HYDRAULIC

$

$

Not available

7

Gravely 05958900

BLT-HEX .50-13X1.25 GR5 YWZC
(Superseded to 05901637)

$3.49

$

In Stock, Qty 6

0

8

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06307300

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 09318200

RUBBER BUSHING

$

$

Not available

Gravely 09346200

BUSHING-ISOLATION

$

$

Not available

11

Gravely 06440900

WSHR-FL-STL .50X2.25X13YWZC

$

$

Not available

Gravely 06445600

WSHR-FL STL .656X2.25X.184 YWZ

$

$

Not available

12

Gravely 05959900

BLT-HEX .50-13X3.00 GR5 YWZC
(Superseded to 05901737)

$5.49

$

In Stock, Qty 14

0

Gravely 05971200

BLT-HEX .625-11X4.00 GR8 YWZC

$

$

Not available

13

Gravely 05962000

BLT-HEX .50-13X1.50 GR5 YWZC
(Superseded to 05901631)

$4.99

$

In Stock, Qty 12

0

14

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

15

Gravely 09318800

RUBBER STOP

$

$

Not available

16

Gravely 09317900

SADDLE GUARD WELDMENT

$

$

Not available

17

Gravely 06215500

BLT-RDHDSQNK .38-16X1.00 G2YZ
(Superseded to 06223600)

$2.99

$

In Stock, Qty 20+

0

18

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 09334700

ROLLER-TOP WELDMENT

$

$

Not available

20

Gravely 09317300

WEAR STRIP

$

$

Not available

21

Gravely 09316450

FRONT GUIDE

$

$

Not available

22

Gravely 06117300

SCR-MCH.25-20X.50 FLTCNTRSK SS

$

$

Not available

23

Gravely 09320200

FEED BOX GUARD

$

$

Not available

24

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, Qty 17

0

25

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

26

Gravely 06307300

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 20+

0

Gravely 06309500

WSHR-LK .62X.156 REG YWZC

$2.49

$

In Stock, only 2 left!

0
