993510 - Gravely Pro-Chip 12" Chipper, Perkins Diesel (SN: 000101 & Above) Safety Switch Wiring Parts Diagram

Pro-Chip 12" Chipper, Perkins Diesel

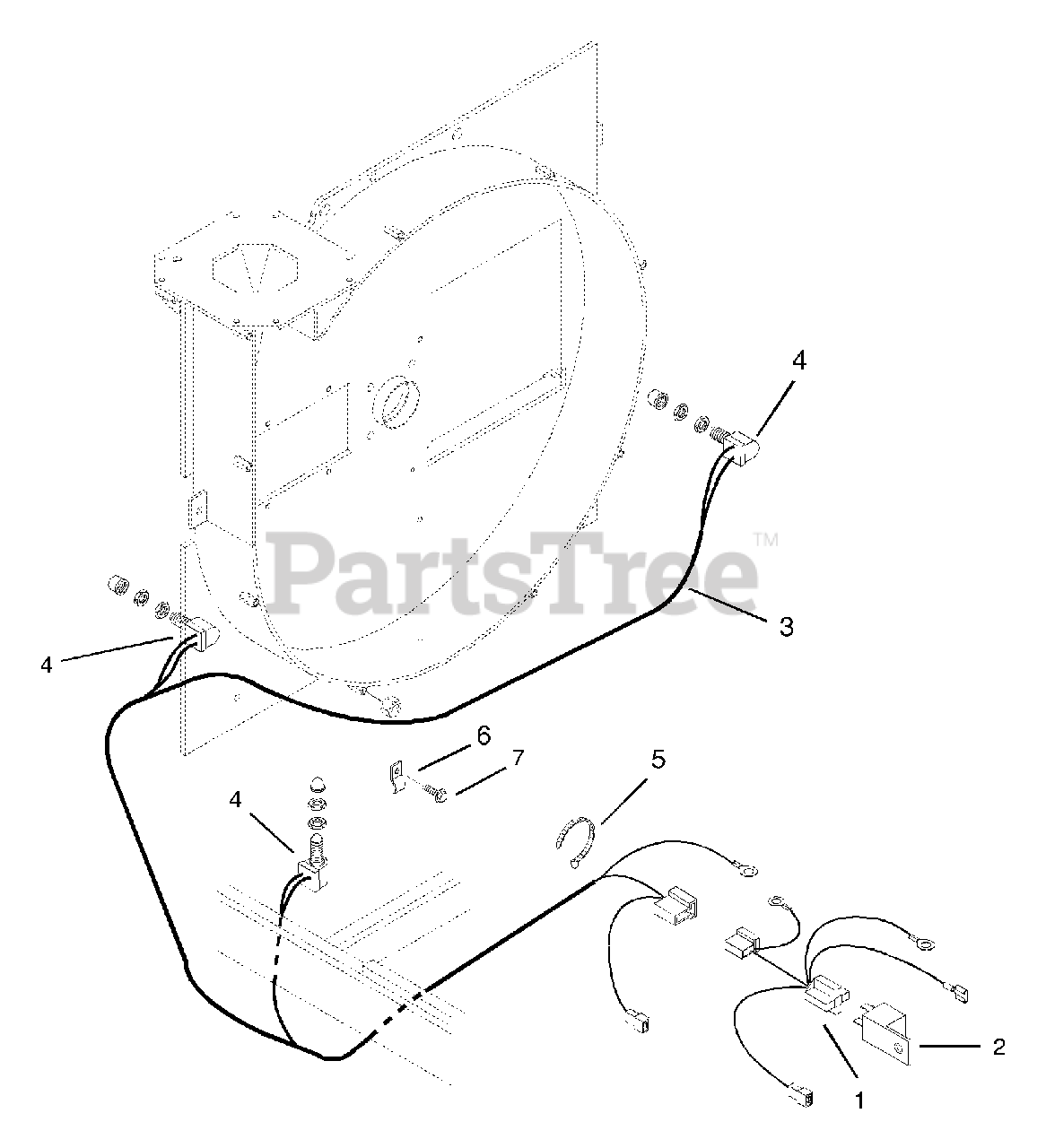

Safety Switch Wiring Parts Diagram

  • Title

1

Gravely 09339800

HARNESS-RELAY/SAFETY

Note: (Includes Item 2)(Options 1-3 & 10-12)

$

$

Not available

Gravely 09352300

HARNESS-ADAPTER SAFETY SWITHC

Note: (Includes Item 2)(Options 10-12)

$

$

Not available

2

Gravely 040216

RELAY,SEALED W/DIODE
(Superseded to 00432101)

$25.99

$

In Stock, Qty 20+

0

3

Gravely 09350500

HARNESS-WIRING,SAFETY SWITCH

Note: (Includes Item 4)

$

$

Not available

Gravely 09352200

HARNESS-WIRING SAFETY SWITCH

Note: 993502 S/N 000110 and up 993510 S/N 000200 and up 993517 S/N 000150 and up 993523 S/N 000150 and up 9935XX S/N 000101 and up

$

$

Not available

4

Gravely 09348500

SWITCH-SEALED SAFETY,NORM OPEN

$

$

Not available

5

Gravely 07517300

CABLE TIE LG 5-1/2

$1.49

$

Usually ships in 4-12 days

0

6

Gravely 06904800

CLIP

$

$

Not available

7

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0
