993510 - Gravely Pro-Chip 12" Chipper, Perkins Diesel (SN: 000101 & Above) Wheels And Suspension Parts Diagram

Pro-Chip 12" Chipper, Perkins Diesel

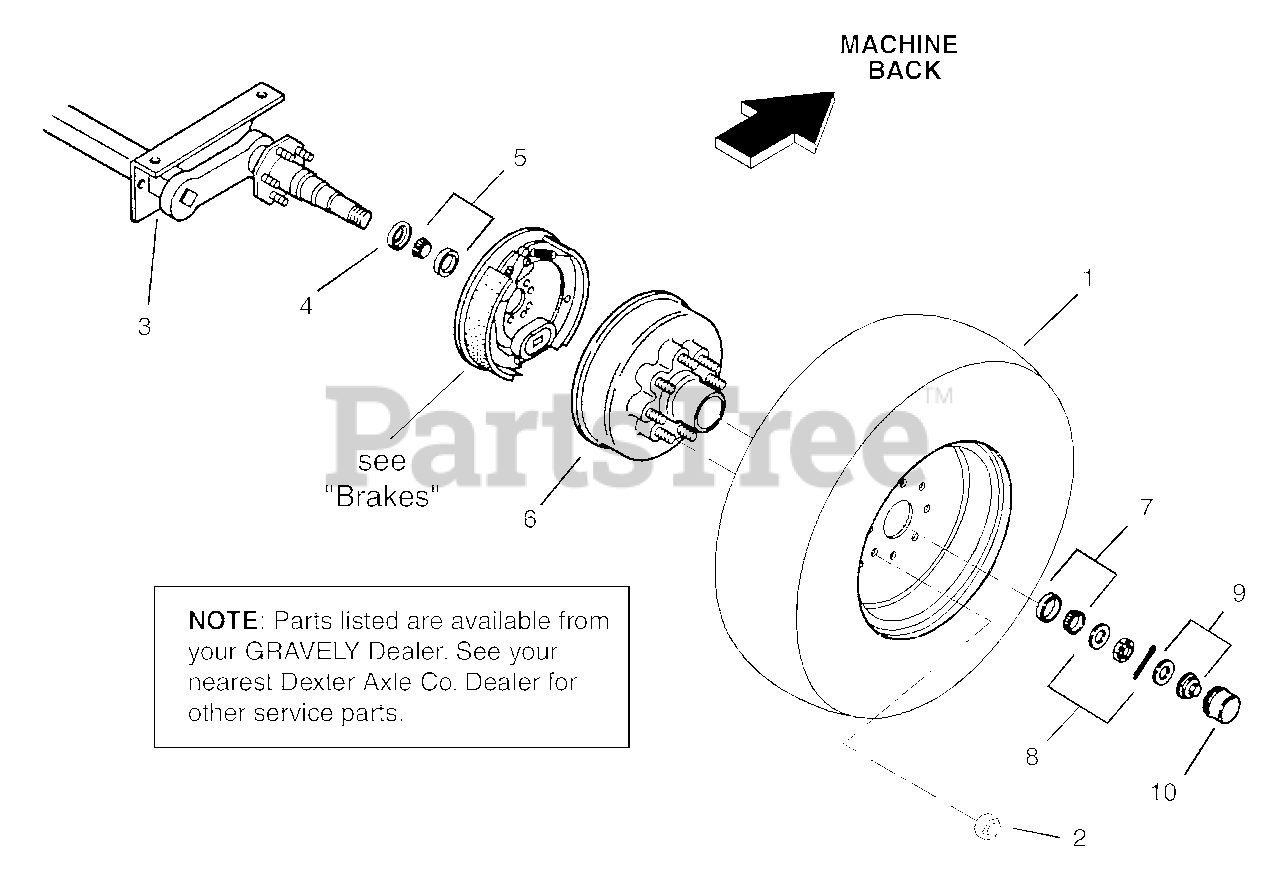

Wheels And Suspension Parts Diagram

  • Title

1

Gravely 07140100

T/RIM ASSY 3170 LB CAP

$

$

Not available

2

Gravely 06517600

WHEEL NUT .500-20 YZ
(Superseded to 06500926)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 09317200

AXLE 6000LB 8 LUG HYD SURGE

Note: (Option 5)

$

$

Not available

Gravely 09337800

AXLE 6000LB 8 LUG ELECTRIC BRK

Note: (Option 4)

$

$

Not available

4

Gravely 59303300

GREASE SEAL

$

$

Not available

5

Gravely 59303400

BEARING CUP AND CONE-INNER

$

$

Not available

6

Gravely 59303200

HUB AND DRUM

Note: (Option 5)

$

$

Not available

Gravely 59305900

HUB & DRUM-ELC

Note: (Option 4)

$

$

Not available

7

Gravely 59303500

BEARING CUP AND CONE-OUTER

$

$

Not available

8

Gravely 59303800

HARDWARE KIT

$

$

Not available

9

Gravely 59303700

PLUG KIT

Note: Kit

$

$

Not available

10

Gravely 59303600

GREASE CAP

$

$

Not available
