993510 - Gravely Pro-Chip 12" Chipper, Perkins Diesel (SN: 000101 & Above) Wiring Diagram Parts Diagram

Pro-Chip 12" Chipper, Perkins Diesel

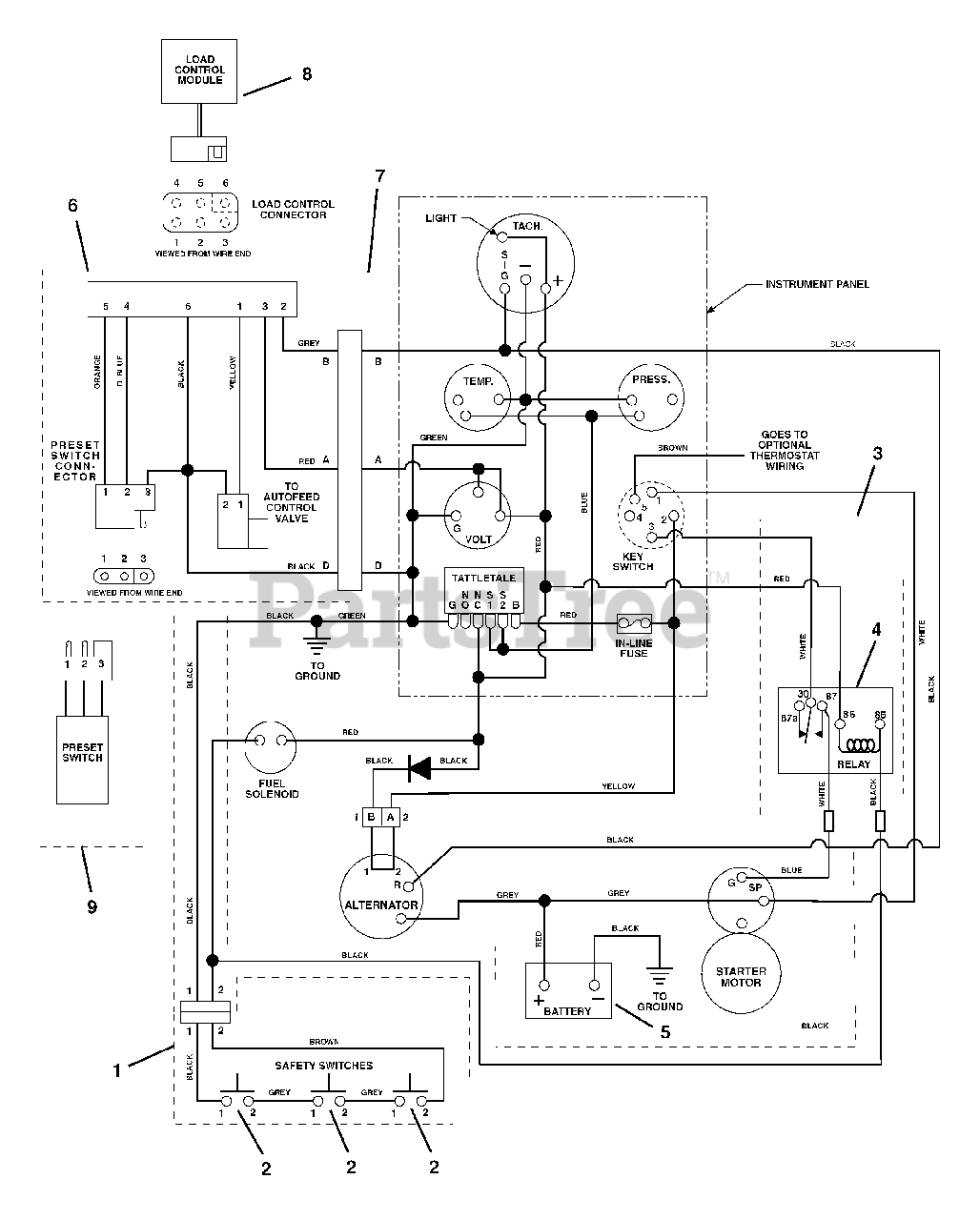

Wiring Diagram Parts Diagram

  • Title

1

Gravely 09350500

HARNESS-WIRING,SAFETY SWITCH

Note: (Includes Item 2)

$

$

Not available

Gravely 09352200

HARNESS-WIRING SAFETY SWITCH

Note: 993502 S/N 000110 and up 993510 S/N 000200 and up 993517 S/N 000150 and up 993523 S/N 000150 and up 9935XX S/N 000101 and up

$

$

Not available

2

Gravely 09348500

SWITCH-SEALED SAFETY,NORM OPEN

$

$

Not available

3

Gravely 09339800

HARNESS-RELAY/SAFETY

Note: (Includes Item 4)

$

$

Not available

Gravely 09352300

HARNESS-ADAPTER SAFETY SWITHC

Note: 993502 S/N 000110 and up 993510 S/N 000200 and up 993517 S/N 000150 and up 993523 S/N 000150 and up 9935XX S/N 000101 and up

$

$

Not available

4

Gravely 040216

RELAY,SEALED W/DIODE
(Superseded to 00432101)

$25.99

$

In Stock, Qty 20+

0

5

Gravely 09318400

BATTERY

$

$

Not available

6

Gravely 09338200

HARNESS-WIRE,495 AUTOFEED

Note: (Option 9)

$

$

Not available

Gravely 09352400

HARNESS-WIRING AUTOFEED

Note: (Option 9)

$

$

Not available

7

Gravely 09352500

HARNESS-ADAPTER AUTOFEED

Note: (Option 9)

$

$

Not available

8

Gravely 09338800

MODULE-AUTOFEED

Note: (Option 9)

$

$

Not available

9

Gravely 79301800

PRE-SET SWITCH ASSY.

$

$

Not available
