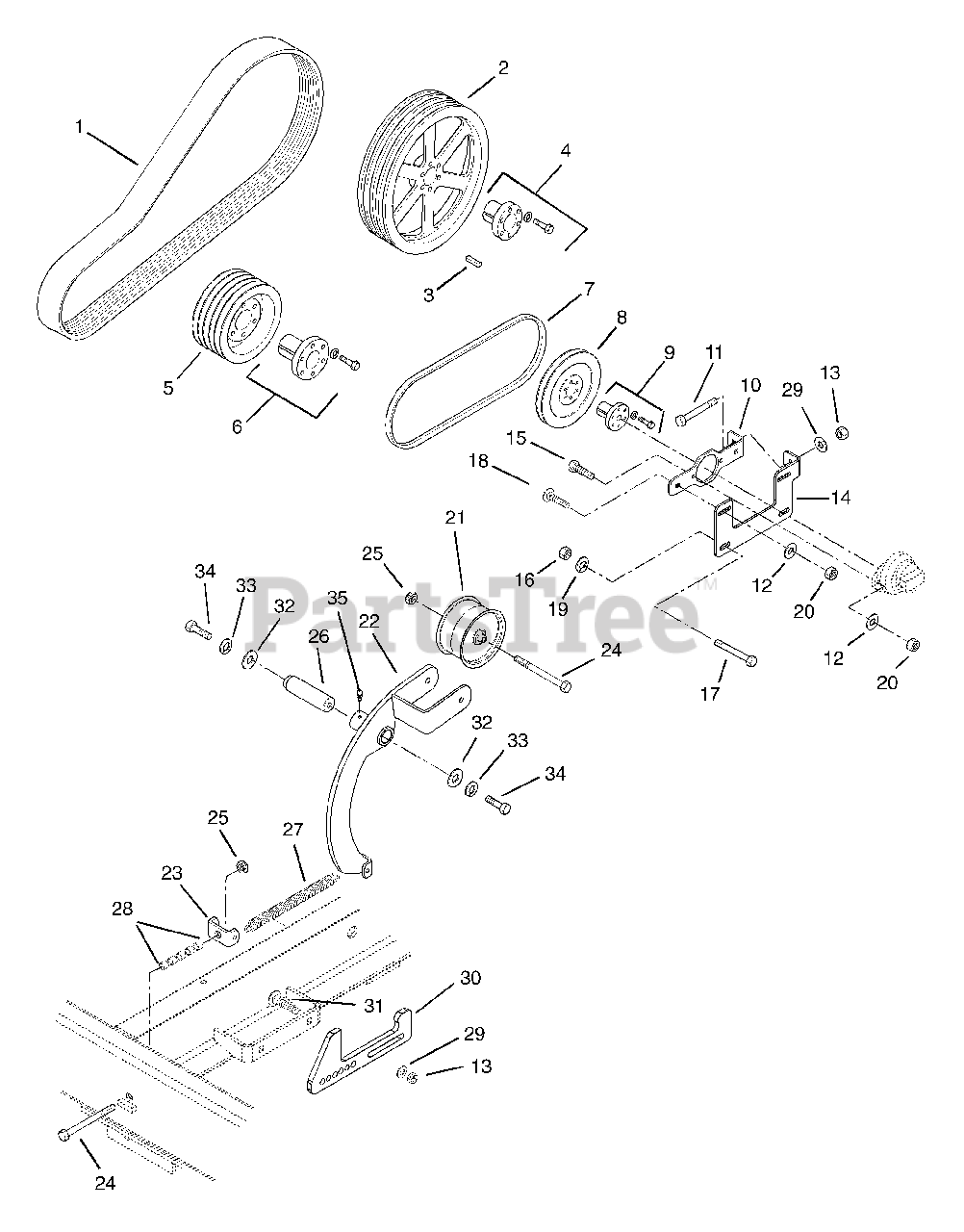

993516 - Gravely Pro-Chip 12" Chipper, Perkins Diesel (SN: 000101 & Above) Belts And Idler Parts Diagram

Pro-Chip 12" Chipper, Perkins Diesel

Belts And Idler Parts Diagram

  • Title

1

Gravely 07234100

V-Belt-4 Groove Banded

$

$

Not available

2

Gravely 07322100

Pulley Driven 16 in

$

$

Not available

3

Gravely 06606400

Key-Straight .50 x .50 x 1.75

$

$

Not available

4

Gravely 07322400

Bushing-Sheave

$

$

Not available

5

Gravely 07322200

Drive Sheave

$

$

Not available

6

Gravely 07322400

Bushing-Sheave

Note: (99 HP-Option 2 or 108 HP-Option 3)

$

$

Not available

6

Gravely 07323200

Bushing-2.250 Bore w/.625 Key

Note: (81 HP-Option 1)

$96.99

$

Usually ships in 4-12 days

0

7

Gravely 07233400

V-Belt

$30.99

$

Usually ships in 4-12 days

0

8

Gravely 07322600

Pump Sheave

$

$

Not available

9

Gravely 07322500

Bushing-Sheave

$

$

Not available

10

Gravely 09317500

Hydraulic Pump Bracket

$

$

Not available

11

Gravely 05958300

Bolt-Hex .375-16 x 3.00 Grade 5
(Superseded to 05901815)

$3.49

$

In Stock, only 1 left!

0

12

Gravely 06441000

Washer-Flat-Steel .438 x 1.25 x .083
(Superseded to 06401202)

$2.99

$

In Stock, Qty 13

0

13

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 09317600

Hydraulic Pump Mount Bracket

$

$

Not available

15

Gravely 05963800

Bolt-Hex .44-14 x 1.25 Grade 5

$2.99

$

In Stock, only 1 left!

0

16

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

17

Gravely 05959900

Bolt-Hex .50-13 x 3.00 Grade 5
(Superseded to 05901737)

$4.99

$

In Stock, Qty 8

0

18

Gravely 06219300

Bolt-Round Head Square Neck .44-14 x 1.50
(Superseded to 06224500)

$3.99

$

Usually ships in 4-12 days

0

19

Gravely 06442000

Washer-Flat-Steel .563 x 1.38 x .109
(Superseded to 06401012)

$3.49

$

In Stock, Qty 15

0

20

Gravely 06536400

Nut-Locking-Center .44-14
(Superseded to 06500930)

$2.99

$

Usually ships in 4-12 days

0

21

Gravely 07322300

Pulley-Idler

$

$

Not available

22

Gravely 09355200

Idler Arm Weldment

$

$

Not available

23

Gravely 09315351

Spring Bracket

$

$

Not available

24

Gravely 05961800

Bolt-Hex .50-13 x 6.00 Grade 5

$

$

Not available

25

Gravely 06528200

Nut-Locking .50-13

$3.99

$

In Stock, only 2 left!

0

26

Gravely 09355300

Shaft-Idler Arm Pivot

$

$

Not available

27

Gravely 039364

Spring-Tension .156 x 1.062 x 2.68
(Superseded to 08310700)

$39.99

$

Usually ships in 4-12 days

0

28

Gravely 00229400

Spacer-Idler Spring

$19.99

$

Usually ships in 4-12 days

0

29

Gravely 06435900

Washer-Flat-Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

Usually ships in 4-12 days

0

30

Gravely 09344900

Stop-Idler Arm

$

$

Not available

31

Gravely 06221400

Bolt-Round Head Square Neck .38-16 x 1.25 Grade 2
(Superseded to 06224100)

$2.49

$

In Stock, Qty 18

0

32

Gravely 06439000

Washer-Flat-Steel .812 x 1.5 x .135
(Superseded to 06401140)

$1.49

$

In Stock, Qty 15

0

33

Gravely 06310300

Washer-Locking .75 x .188

$1.49

$

In Stock, Qty 10

0

34

Gravely 05959600

Bolt-Hex .75-10 x 1.50 Grade 5

$3.49

$

Usually ships in 4-12 days

0

35

Gravely 07012600

Fitting-Lube
(Superseded to 07001806)

$

$

Not available
