994001 (Pro-Aire 27) - Gravely Pro-Aire Vacuum, Honda (SN: 000101 & Above) CLUTCH AND VALVE LINKAGE Parts Diagram

Pro-Aire Vacuum, Honda

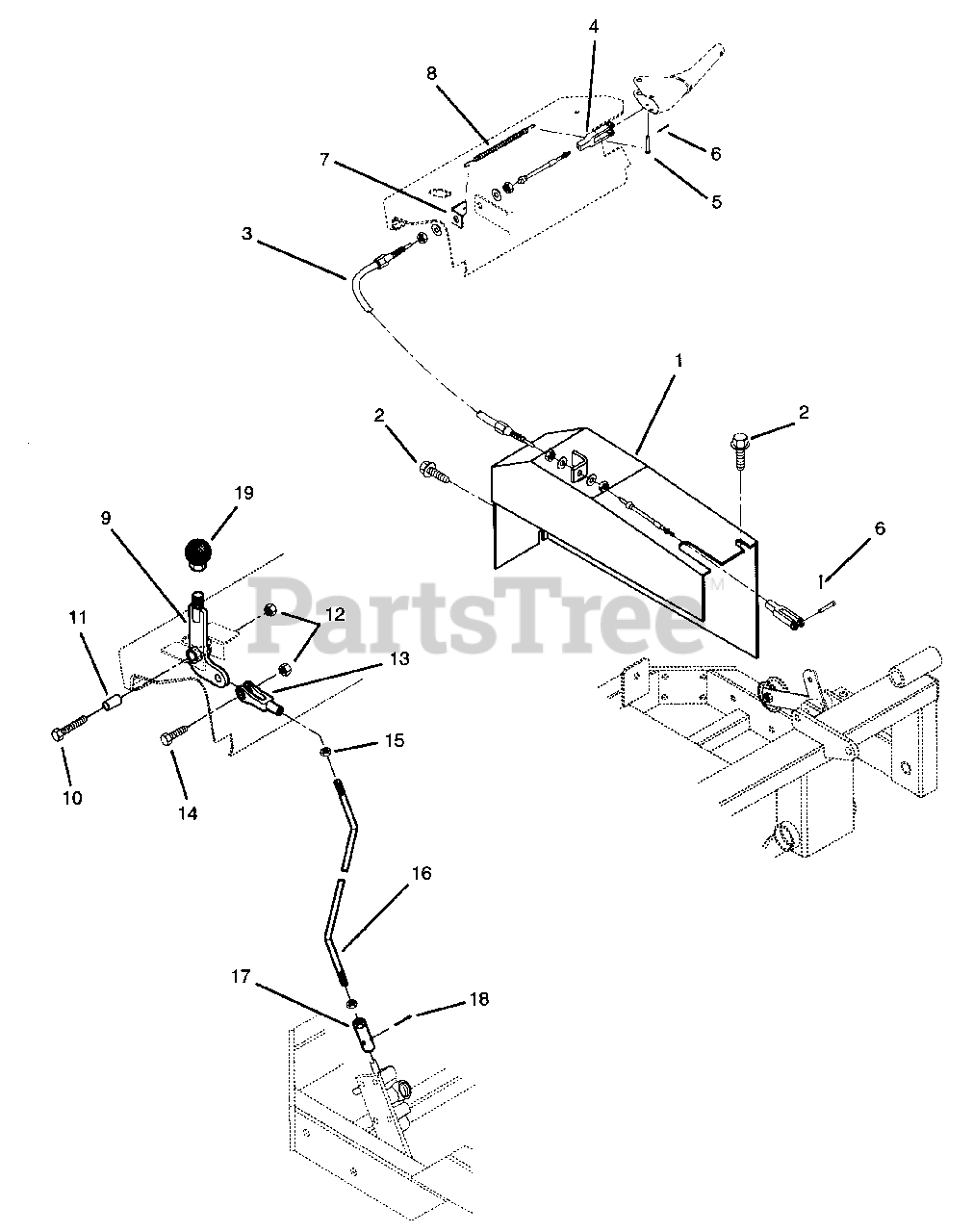

CLUTCH AND VALVE LINKAGE Parts Diagram

  • Title

1

Gravely 09402800

Shield Weldment(Belt)

Note: (Belt)

$

$

Not available

2

Gravely 00591400

Screw-Hex Head Whizlock .312 x 1

$

$

Not available

3

Gravely 06932300

Control Cable

$

$

Not available

4

Gravely 06812800

Clevis .188 Rod x .25 Hole

$

$

Not available

5

Gravely 06812900

Pin-Clevis .25 x 1.25 Plated

$

$

Not available

6

Gravely 06700400

Pin-Cotter .12 x 1.0 Plated
(Superseded to 06707100)

$0.99

$

In Stock, Qty 12

0

7

Gravely 09403100

Spring Tab

$

$

Not available

8

Gravely 08331500

Spring-Tension .50 OD x 3.5 LG

$

$

Not available

9

Gravely 09402100

Valve Lever Weldment

$

$

Not available

10

Gravely 05915100

Bolt-Hex .38-16 x 1.50 Plated Grade 5
(Superseded to 05957900)

$1.49

$

In Stock, Qty 5

0

11

Gravely 05523400

Bushing-Sleeve P/M Bronze .5 OD x .38 IDx 1 LG

$

$

Not available

12

Gravely 06531500

Nut-Lock Unitorque .38

$

$

Not available

13

Gravely 07031100

Yoke End .375-24 x 2.25 LG Plain

$

$

Not available

14

Gravely 05913300

Bolt-Hex .38-16 x 1.25 Plated Grade 5
(Superseded to 05958000)

$1.49

$

In Stock, Qty 8

0

15

Gravely 06518800

Nut-Jam .375-24 Plated
(Superseded to 06534700)

$2.49

$

In Stock, Qty 5

0

16

Gravely 09403200

Valve Lever Rod

$

$

Not available

17

Gravely 09403800

Rod End

$

$

Not available

18

Gravely 06702600

Pin-Cotter .18 x 1.0 Plated
(Superseded to 06712000)

$1.99

$

Usually ships in 4-12 days

0

19

Gravely 07526800

Knob-Black Ball

$

$

Not available
